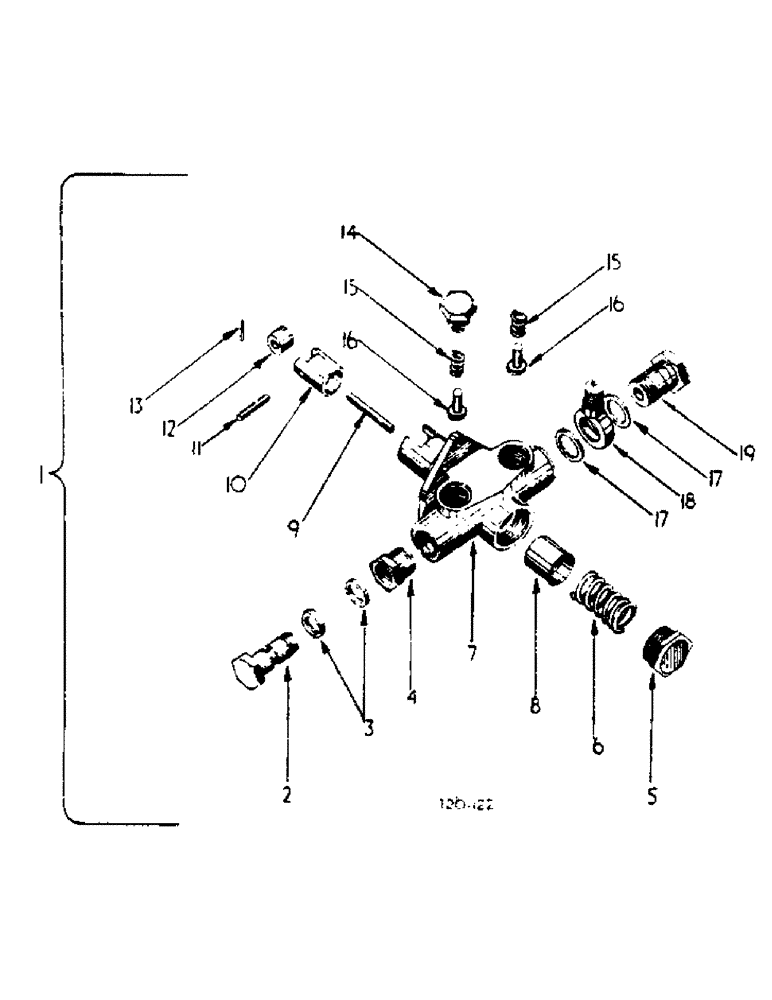

Запчасти Case IH B275 (023) - DIESEL ENGINE, FUEL INJECTION FEED PUMP, UP TO BD-144/17288A (01) - ENGINE

1

705416R91

PUMP, feed, assy., Comprising

1шт.

2

708293R1

BOLT

banjo

1шт.

3

706196R1

GASKET

WASHER, joint

2шт.

4

706194R1

NIPPLE, reducing

1шт.

5

701325R1

PLUG, closing

1шт.

6

701324R1

SPRING, plunger

1шт.

7

703111R91

HOUSING

feed pump, assy., W/X plunger 703112R91 and spindle 703114R1

1шт.

702112R91

PLUNGER, set, Comprising

1шт.

8

703115R1

PLUNGER (21.985 MM) (Blue)

1шт.

8

703116R1

PLUNGER (21.987 MM) (Red)

1шт.

8

703117R1

PLUNGER (21.989 MM) (Yellow)

1шт.

8

703118R1

PLUNGER (21.991 MM) (Green)

1шт.

8

703119R1

PLUNGER (21.993 MM) (White)

1шт.

8

701323R1

PLUNGER

1шт.

9

701114R1

GEAR

SPINDLE, tappet

1шт.

10

701327R1

GUIDE, tappet

1шт.

11

701329R1

PIN, tappet bearing

1шт.

12

701328R1

ROLLER, tappet

1шт.

13

701333R1

PIN, retaining

1шт.

14

701332R1

GUIDE

valve

1шт.

15

701331R1

SPRING

valve

2шт.

16

701330R1

VALVE

2шт.

17

701337R1

WASHER

joint

2шт.

18

706193R1

CONNECTION, screwed

1шт.

19

701336R1

STUD, delivery connection

1шт.

3041322R1

O-RING

"O" RING, tappet spindle

1шт.
