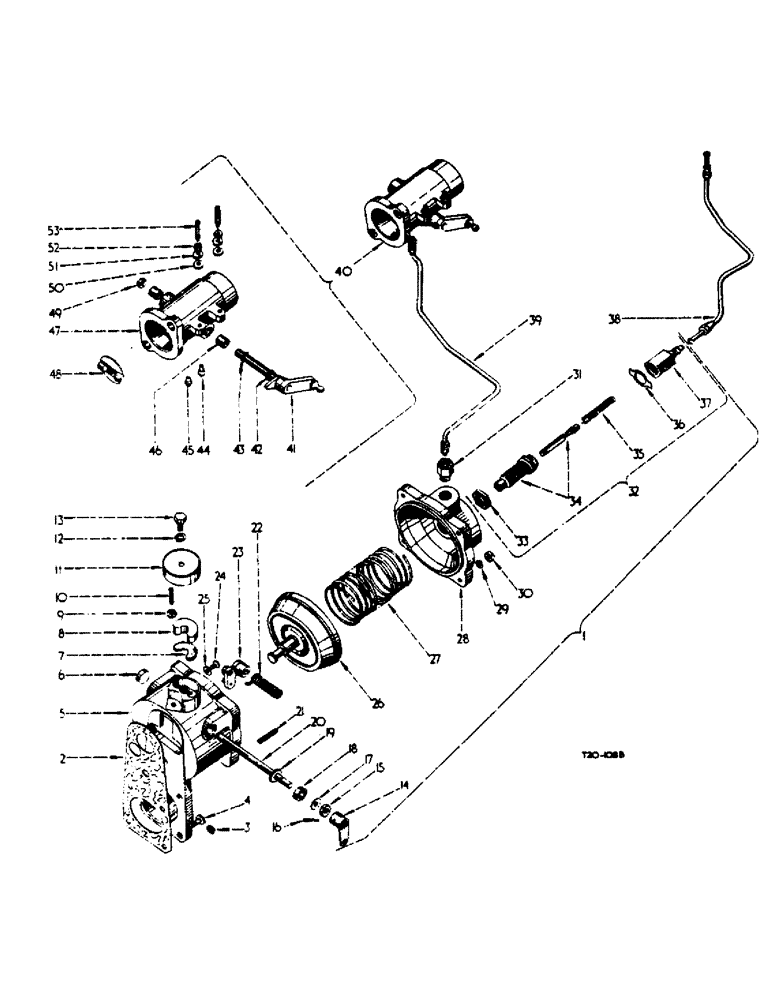

Запчасти Case IH B275 (020) - DIESEL ENGINE, PNEUMATIC GOVERNOR AND VENTURI, UP TO BD-144/17288A (01) - ENGINE

1

3040143R91

GOVERNOR, pneumatic

1шт.

2

JOINT, housing, Not supplied separately

1шт.

3

WASHER, lock, Not supplied separately

4шт.

4

SCREW, Not supplied separately

4шт.

5

HOUSING, Not supplied separately

1шт.

6

706688R1

CAP, Not supplied separately

1шт.

7

706652R1

GAUZE, breather

1шт.

8

706653R1

PAD, breather

1шт.

9

706660R1

NUT

1шт.

10

706657R1

SCREW

1шт.

11

706659R1

CAP, breather

1шт.

12

701301R1

WASHER, lock

1шт.

13

706662R1

BOLT

1шт.

14

LEVER, assy., Not supplied separately

1шт.

15

CLIP, spring, Not supplied separately

1шт.

16

PIN, spring dowel, Not supplied separately

1шт.

17

WASHER, Not supplied separately

1шт.

18

CAP, retaining, Not supplied separately

1шт.

19

RING, sealing, Not supplied separately

1шт.

20

SPINDLE, Not supplied separately

1шт.

21

STUD, Not supplied separately

1шт.

22

SPRING, Not supplied separately

1шт.

23

PAWL, assy., Not supplied separately

1шт.

24

SCREW, Not supplied separately

1шт.

25

WASHER, Not supplied separately

1шт.

26

DIAPHRAGM, assy., Not supplied separately

1шт.

27

SPRING, Not supplied separately

1шт.

28

COVER, housing, Not supplied separately

1шт.

29

WASHER, lock, Not supplied separately

4шт.

30

NUT, Not supplied separately

4шт.

31

706667R1

ADAPTOR

1шт.

32

3041369R91

VALVE, idling, assy., Comprising

1шт.

33

706681R1

NUT, lock

1шт.

34

706680R91

BODY AND VALVE, assy.

1шт.

35

3041370R1

SPRING

1шт.

36

706683R1

WASHER

1шт.

37

706684R2

ADAPTOR

1шт.

38

708233R91

BEARING, BALL

PIPE, venturi to governor, rear, cpte.

1шт.

39

706234R91

PIPE

venturi to governor, fornt, cpte.

1шт.

40

706230R91

VENTURI, cpte., Comprising

1шт.

41

707075R91

SPINDLE, assy.

1шт.

42

707078R1

WASHER

1шт.

43

707079R1

"O" RING

1шт.

44

707082R1

TUBE, pivot, air bleed

1шт.

45

707083R1

TUBE, pivot, vacuum

1шт.

46

707080R1

BUSHING, bearing

2шт.

47

HOUSING, Not supplied separately

1шт.

48

707076R1

VALVE

1шт.

707077R1

RIVET

1шт.

49

707081R1

PLUG, sealing

1шт.

50

707085R1

WASHER

2шт.

51

701301R1

WASHER, lock

2шт.

52

701345R1

NUT, locking, set screw

2шт.

53

707084R1

SCREW, set

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

54

706231R1

GASKET, venturi to intake manifold

1шт.

706671R1

WASHER, spring

1шт.
