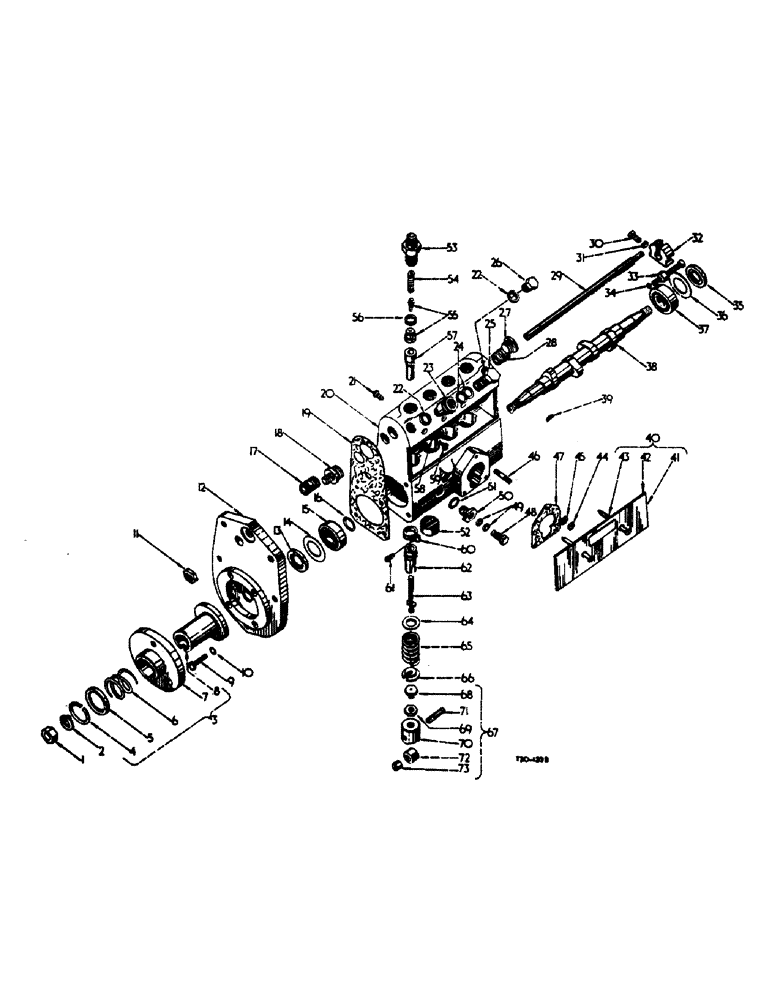

Запчасти Case IH B275 (017) - DIESEL ENGINE, FUEL INJECTION PUMP, PNEUMATIC GOVERNOR, UP TO BD-144/17288A (01) - ENGINE

751613R93

PUMP, injection, pneumatic governor, cpte., Comprising

1шт.

HAND PRIMER (See detail list)

1шт.

FUEL PUMP

1шт.

FEED PUMP (See detail list)

1шт.

PNEUMATIC GOVERNOR AND VENTURI (See detail list)

1шт.

706599R92

PUMP, fuel, Comprising

1шт.

1

701296R1

NUT, camshaft

1шт.

2

701297R1

WASHER, camshaft

1шт.

3

706640R91

COUPLING, BREAK AWAY

COUPLING, uni-directional, Comprising

1шт.

4

706644R1

SNAP RING

CIRCLIP

1шт.

5

706643R3

CUP WASHER

cup

1шт.

6

706642R2

SPRING

1шт.

7

706641R1

SLEEVE

gear

1шт.

8

706638R1

HUB, gear

1шт.

9

701293R1

SCREW, set, end plate

4шт.

10

701315R1

WASHER, end plate set screw

4шт.

11

NUT, end plate stud, Not supplied separately

1шт.

12

PLATE, end, Not supplied separately

1шт.

13

OIL SEAL, Not supplied separately

1шт.

14

SHIM, oil seal, Not supplied separately

1шт.

15

BEARING, roller (Hoffman), Not supplied separately

1шт.

16

SHIM, camshaft, 0.15 MM, Not supplied separately

1шт.

16

SHIM, camshaft, 0.30 MM, Not supplied separately

1шт.

16

SHIM, camshaft, 0.10 MM, Not supplied separately

1шт.

17

BUSH, control rod, Not supplied separately

1шт.

18

STUD, end plate, Not supplied separately

1шт.

19

GASKET, bearing end plate, Not supplied separately

1шт.

20

HOUSING, Not supplied separately

1шт.

21

SCREW, locking, Not supplied separately

1шт.

22

701298R1

WASHER

joint

2шт.

23

706165R1

ADAPTOR

1шт.

24

706196R1

GASKET

WASHER, body

2шт.

25

708293R1

BOLT

SCREW, delivery connection

1шт.

26

706167R1

SCREW, air vent

1шт.

27

PLUG, Not supplied separately

1шт.

28

BUSH, control rod, Not supplied separately

1шт.

29

ROD, control, Not supplied separately

1шт.

30

SCREW, Not supplied separately

1шт.

31

WASHER, spring, Not supplied separately

1шт.

32

BLOCK, guide, Not supplied separately

1шт.

33

BOLT, guide, Not supplied separately

1шт.

34

WASHER, spring, Not supplied separately

1шт.

35

OIL SEAL, Not supplied separately

1шт.

36

SHIM, oil seal, Not supplied separately

1шт.

37

BEARING, ball (C.A.V.), Not supplied separately

1шт.

38

CAMSHAFT, Not supplied separately

1шт.

30

KEY, camshaft, Not supplied separately

2шт.

40

701276R91

PLATE, cover, assy., Comprising

1шт.

41

701277R1

COVER, inspecton

1шт.

42

701278R1

JOINT, inspection cover

1шт.

43

701279R1

SCREW, inspection cover

2шт.

44

701345R1

NUT, feed pump fixing stud

3шт.

45

701301R1

WASHER, feed pump fixing stud

3шт.

46

701299R1

STUD, fixing, feed pump

3шт.

47

701280R1

GASKET

feed pump

1шт.

48

703520R1

STUD,M8 x 15mm

leak-off connection

1шт.

49

703519R1

WASHER

WASER

2шт.

50

701304R2

BODY, drain level

1шт.

51

701305R1

WASHER, sealing, drain level

1шт.

52

CAP, base closure, Not supplied separately

4шт.

53

706161R1

HOLDER, delivery valve

4шт.

54

701288R1

SPRING

delivery valve

4шт.

55

706159R91

VALVE

delivery, assy.

4шт.

56

706160R1

WASHER

JOINT, delivery valve

4шт.

ELEMENT, assy., Not supplied separately

4шт.

57

BARREL, Not supplied separately

4шт.

58

WASHER, barrel locking pin, Not supplied separately

4шт.

59

PIN, locking, barrel, Not supplied separately

4шт.

60

QUADRANT, control, Not supplied separately

4шт.

61

SCREW, set, control quadrant, Not supplied separately

4шт.

62

SLEEVE, control, Not supplied separately

4шт.

62

SLEEVE, control, Not supplied separately

4шт.

63

PLUNGER, Not supplied separately

4шт.

64

PLATE, spring, upper, Not supplied separately

4шт.

65

SPRING, plunger, Not supplied separately

4шт.

66

PLATE, spring, lower, Not supplied separately

4шт.

67

TAPPET, assy., Not supplied separately, Comprising

4шт.

68

SCREW, tappet, Not supplied separately

4шт.

69

NUT, lock, tappet, Not supplied separately

4шт.

70

GUIDE, tappet, Not supplied separately

4шт.

71

PIN, tappet roller, Not supplied separately

4шт.

72

ROLLER, tappet, Not supplied separately

4шт.

73

BUSH, tappet roller, Not supplied separately

4шт.

Note - For repair on Pump, refer to FE General Letter #40 8-14, 1961. 11/17/95

1шт.
