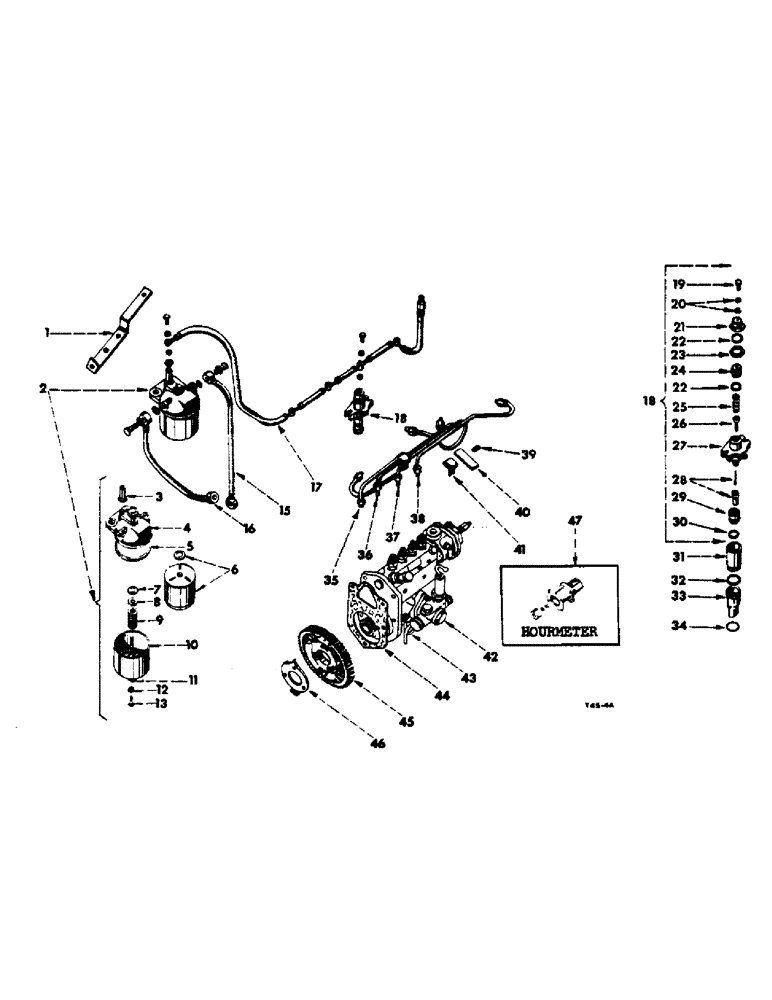

Запчасти Case IH B275 (014) - DIESEL ENGINE, INJECTION SYSTEM AND PRE-COMBUSTION CHAMBER, UP TO BD-144/17288A (01) - ENGINE

1

705425R1

BRACKET, fuel filter support

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

705421R92

FILTER, fuel, cpte., C.A.V., B-275/8961 up, Comprising

1шт.

3041364R1

BOLT

1шт.

3041353R1

BOLT

1шт.

3041357R1

BOLT

1шт.

3041360R1

CIRCLIP

1шт.

3041348R1

COVER

1шт.

3041354R1

CUP

1шт.

704640R91

FILTER, ELEMENT

ELEMENT

1шт.

3041352R1

HOUSING

1шт.

3041356R1

SPRING

1шт.

3041355R1

RING

1шт.

3041349R1

OIL SEAL

RING

1шт.

3041362R1

STUD

1шт.

3041365R1

VALVE

1шт.

704639R1

GASKET

WASHER

1шт.

3041350R1

WASHER

1шт.

3041363R1

WASHER

1шт.

3041358R1

WASHER

1шт.

2

705421R91

FILTER, fuel, cpte., C.A.V., Up to B-275/8960, Comprising

1шт.

704628R1

CIRCLIP

1шт.

704626R1

COVER

1шт.

704640R91

FILTER, ELEMENT

ELEMENT

1шт.

704632R91

HOUSING

1шт.

704639R1

GASKET

WASHER

1шт.

704627R1

NUT

1шт.

704633R1

PLUG

1шт.

704629R1

PLUG

1шт.

704636R1

RING

1шт.

704641R1

RING

1шт.

704635R1

SLEEVE

1шт.

704638R1

SPRING

1шт.

705945R91

VALVE PRESSURE RELIE

VALVE

1шт.

704637R1

WASHER

1шт.

704630R1

WASHER

2шт.

179882

PIN

hex. hd., 1/2" x 1-1/8" long

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

705945R91

VALVE PRESSURE RELIE

VALVE, relief, Serial Range: Up-B-275/8960

1шт.

3

3041365R1

VALVE

relief, B-275/8961 up

1шт.

4

COVER, housing (Order filter, 705421R91), Serial Range: Up-B-275/8960

1шт.

704628R1

CIRCLIP, cover fixing nut

1шт.

704627R1

NUT, cover fixing

1шт.

704629R1

PLUG

vent

1шт.

704630R1

WASHER

joint, vent plug

1шт.

COVER, housing (Order filter, 705421R92), B-275/8961 up

1шт.

3041364R1

BOLT

1шт.

3041360R1

CIRCLIP, cover fixing nut

1шт.

3041358R1

WASHER

1шт.

5

704639R1

GASKET

WASHER, cover sealing

1шт.

6

704640R91

FILTER, ELEMENT

ELEMENT, filter, assy.

1шт.

7

704636R1

RING, sealing, lower, Serial Range: Up-B-275/8960

1шт.

7

3041349R1

OIL SEAL

RING, sealing, lower, B-275/8961 up

1шт.

8

704637R1

WASHER, flat, Serial Range: Up-B-275/8960

1шт.

8

3041350R1

WASHER, flat, B275/8961 up

1шт.

9

704638R1

SPRING, lower, Serial Range: Up-B-275/8960

1шт.

9

3041356R1

SPRING

lower, B-275/8961 up

1шт.

10

704632R91

HOUSING

w/bolt, cpte., Serial Range: Up-B-275/8960

1шт.

10

3041352R1

HOUSING, B-275/8961 up

1шт.

708293R1

BOLT

STUD, delivery connection

1шт.

11

3041354R1

CUP, base, B-275/8961 up

1шт.

3041355R1

RING, sealing

1шт.

12

704630R1

WASHER

drain plug, Serial Range: Up-B-275/8960

1шт.

12

3041358R1

WASHER

drain plug, B-275/8961 up

1шт.

13

704633R1

PLUG, drain, Serial Range: Up-B-275/8960

1шт.

13

3041357R1

BOLT

PLUG, drain, B-275/8961 up

1шт.

14

704640R91

FILTER, ELEMENT

ELEMENT, filter

1шт.

15

705600R91

CABLE

PIPE, fuel (Feed pump to filter) cpte.

1шт.

708293R1

BOLT

banjo connection

1шт.

704643R1

WASHER

banjo connection

2шт.

16

705599R91

PIPE

fuel (Filter to injection pump) cpte.

1шт.

708293R1

BOLT

banjo connection

1шт.

704643R1

WASHER

banjo connection

2шт.

17

705430R91

PIPE

fuel spill (Filter and injectors to fuel tank)

1шт.

705942R1

ADAPTOR, relief valve

1шт.

703520R1

STUD,M8 x 15mm

BOLT, banjo connection

1шт.

703519R1

WASHER

banjo connection

2шт.

705424R1

WASHER

relief valve adaptor

1шт.

18

705431R91

NO LONGER SERVICED

NOZZLE, injuction, and nozzle holder cpte., Comprising

4шт.

706275R91

NOZZLE HOLDER

BODY

1шт.

706289R1

BOLT

1шт.

706290R1

CAP

1шт.

706292R1

NUT

1шт.

706288R1

NUT

1шт.

706283R1

NUT

1шт.

706284R1

NOZZLE INJECTION

NOZZLE

1шт.

706282R91

NEEDLE BEARING CAGE

SPINDLE

1шт.

706293R1

SPRING

1шт.

706287R1

WASHER

2шт.

703519R1

WASHER

2шт.

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

1шт.

103026

NUT,3/8"-24, G5

8шт.

706077R1

WASHER

8шт.

19

706289R1

BOLT

banjo

4шт.

20

703519R1

WASHER

8шт.

21

706288R1

NUT

cap, nozzle holder

4шт.

22

706287R1

WASHER

8шт.

23

706292R1

NUT, lock

4шт.

24

706290R1

CAP, spring

4шт.

25

706293R1

SPRING

4шт.

26

706282R91

NEEDLE BEARING CAGE

SPINDLE, assy.

4шт.

27

706275R91

NOZZLE HOLDER

BODY, nozzle holder, assy.

4шт.

28

706284R1

NOZZLE INJECTION

NOZZLE, cpte.

4шт.

29

706283R1

NUT

nozzle cap

4шт.

30

706291R2

SEALING WASHER,14.5mm ID x 21mm OD x 1.42mm Thk

4шт.

31

705358R1

HOLDER

pre-combustion chamber

4шт.

32

710382R3

GASKET,29mm ID x 35mm OD x 1.22mm Thk

pre-combustion chamber, upper

4шт.

33

705359R2

CHAMBER

pre-combustion chamber, lower

4шт.

34

710383R1

GASKET

pre-combustion chamber, lower

4шт.

35

708158R91

PIPE

injection, no. 1 cyl., cpte., w/unions

1шт.

36

705433R92

PIPE

injection, no. 2 cyl., cpte., w/unions

1шт.

37

705434R92

PIPE

injection, no. 3 cyl., cpte., w/unious

1шт.

38

705435R91

PIPE

injection, no. 4 cyl., cpte., w/unions

1шт.

39

705609R1

PACKING, injection pipe clip, inner

1шт.

40

705610R1

PACKING, injection pipe clip, outer

1шт.

41

705608R1

CLIP, injection pipe

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

751613R93

PUMP, injection, cpte. (Pneumatic governor) (See breakdown)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

hex. hd., 3/8" x 1-3/4"

1шт.

NLS

NO LONGER SERVICED

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

703517R11

TUBE

PIGTAIL, injection pump, cpte.

1шт.

44

46583DA

GASKET

injectin pump

1шт.

45

705419R1

GEAR, injection pump

1шт.

46

46584D

INDICATOR, timing, injection pump

1шт.

425473

SCREW, machine, hex. hd., 3/8" UNF x 7/8" and external tooth lockwasher assy.

3шт.

47

751182R91

HOURMETER, mechanical, cpte. (Injection pump mounted)

1шт.
