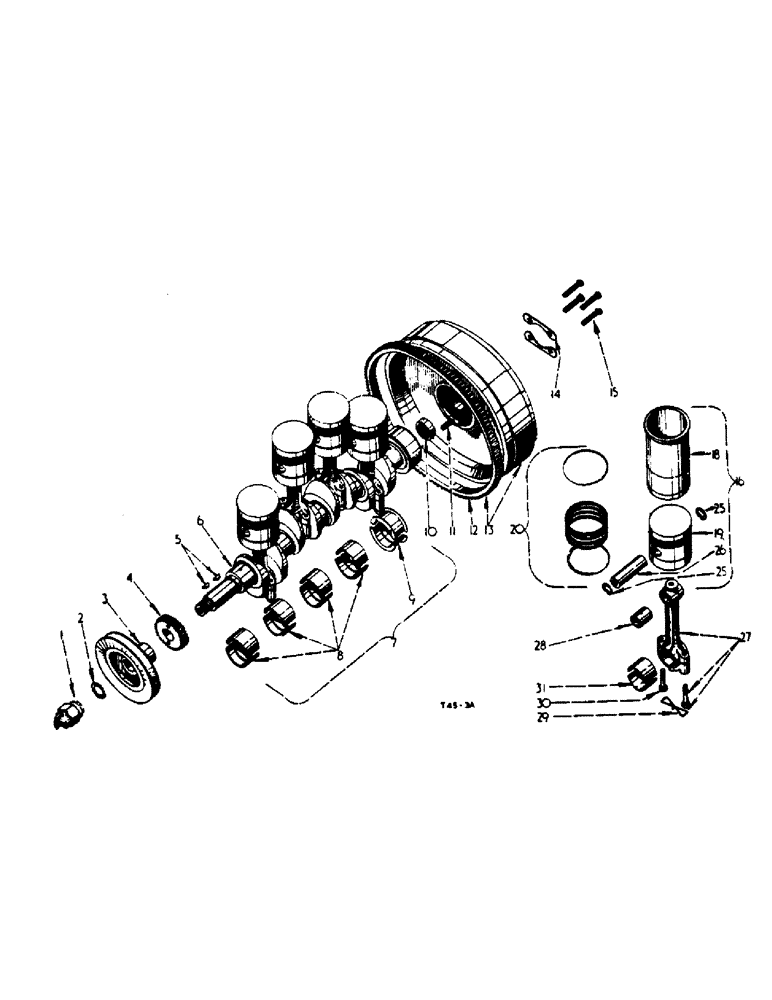

Запчасти Case IH B275 (011) - DIESEL ENGINE, CRANKSHAFT AND CONNECTING RODS AND PISTON UNIT (01) - ENGINE

1

711069R1

NIPPLE, LUBE

NUT, starting crank

1шт.

2

138516

GASKET,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

707327R1

NO LONGER SERVICED

PULLEY, fan drive, Serial Range: Up-BD-144/17288A

1шт.

3

708286R1

PULLEY

fan drive, BD-144/17289A up

1шт.

3

635266R1

PULLEY

fan drive (Tractors with front power take-off drive)

1шт.

4

703865R1

GEAR

PINION, crankshaft (33 teeth)

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Woodruff, no. 91 (1/4" x 3/4")

2шт.

6

751303R21

CRANKSHAFT

std., cpte., w/two pins 24550D and bearing 708909R91

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING, crankshaft main (Std.), Comprising

1шт.

710318R11

CRANKSHAFT BEARING

BEARING

4шт.

708910R91

BEARING ASSY

BEARING

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING, crankshaft main (.030 undersize), Comprising

1шт.

710740R11

CRANKSHAFT BEARING

BEARING

4шт.

708911R91

BEARING ASSY

BEARING

1шт.

8

710318R11

CRANKSHAFT BEARING

BEARING, crankshaft main front and centre (Std.) cpte.

4шт.

710740R11

CRANKSHAFT BEARING

BEARING, crankshaft main front and centre (.030 undersize) cpte.

4шт.

713657R11

CRANKSHAFT BEARING

BEARING, crankshaft main front and centre (.015 undersize) cpte.

4шт.

9

708910R91

BEARING ASSY

BEARING, crankshaft mian rear (Std.) cpte.

1шт.

708911R91

BEARING ASSY

BEARING, crankshaft main rear (.030 undersize) cpte

1шт.

708915R91

BEARING ASSY

BEARING, crankshaft main rear (.015 undersize) cpte.

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot (Fischer)

1шт.

10

751846R93

BALL BEARING

clutch pilot (R & M)

1шт.

10

751847R93

BALL BEARING

clutch pilot (Skefko)

1шт.

10

751848R93

NO LONGER SERVICED

BEARING, clutch pilot (Hofman)

1шт.

11

24550D

PIN

dowel, flywheel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3041456R11

FLYWHEEL, w/ring gear 704436R1 and two pins 141215, BD-144/17289A up

1шт.

13

751128R31

FLYWHEEL, w/ring gear 704436R1 and two pins 141215, Up to BD-144/17288 A

1шт.

14

709516R1

RETAINER

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

751603R92

SLEEVE CYLINDER

SLEEVE, cylinder and piston, cpte. (Set of 4), Comprising

1шт.

751604R92

PISTON & RINGS KIT

PISTONS AND SLEEVES

4шт.

16

751604R92

PISTON & RINGS KIT

PISTON, with sleeve and rings, cpte., Comprising

4шт.

751604R92

PISTON & RINGS KIT

PISTON

1шт.

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING

1шт.

7040925R1

SLEEVE

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, packing, cylinder sleeve

4шт.

18

SLEEVE, cylinder (Not supplied separately - order 751604R92)

4шт.

19

PISTON (Not serviced separately, order 751605R92)

4шт.

19

751606R92

PISTON, pin and rings, assy., Comprising

4шт.

704094R1

LARGE PIN

PIN

1шт.

704099R2

PISTON ASSY

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

704096R1

RING

1шт.

704097R1

RING

2шт.

751606R91

PISTON RING

RING

1шт.

704098R1

RING

1шт.

20

751607R91

SEGMENT

RING, piston, set, Comprising

1шт.

704096R1

RING

4шт.

704097R1

RING

8шт.

704098R1

RING

4шт.

751606R91

PISTON RING

RING

4шт.

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

26

704094R1

LARGE PIN

PIN, piston (Std.)

4шт.

26

706411R1

PIN

piston (.005 oversize)

1шт.

27

704089R91

CONNECTING ROD

ROD, connecting, cpte. (Set of 4), Comprising

1шт.

704088R91

ROD, CONNECTING

ROD

4шт.

27

704088R91

ROD, CONNECTING

ROD, comecting, Comprising

4шт.

704087R1

BOLT

2шт.

711045R1

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

Not supplied separately.

1шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

Not supplied separately.

1шт.

706156R1

WIRE

1шт.

28

711045R1

BUSHING

piston pin

4шт.

29

706156R1

WIRE, lock, 1/16" dia. x 7-1/2" long

4шт.

30

704087R1

BOLT

connecting rod

8шт.

31

710327R11

BEARING SET

BEARING, connecting rod, cpte., std.

4шт.

31

710737R11

BEARING SET

BEARING, connecting rod, cpte., (.030 undersize)

1шт.

710768R91

BEARING SET

BEARING, connecting rod (Std.)

1шт.

710769R91

BEARING ASSY

BEARING, connecting rod (.030 undersize)

1шт.

715146R91

BEARING SET

BEARING, connecting rod (.015 undersize)

1шт.

141215

PIN,5/16" x 1/2"

S, used with flywheel

2шт.

3041408R91

PULLEY

FRONT P.T.O. DRIVE PULLEY, attachment, Comprising

1шт.

218211

DRIVING SPROCKET

1шт.

635266R1

PULLEY

PULEY

1шт.

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.
