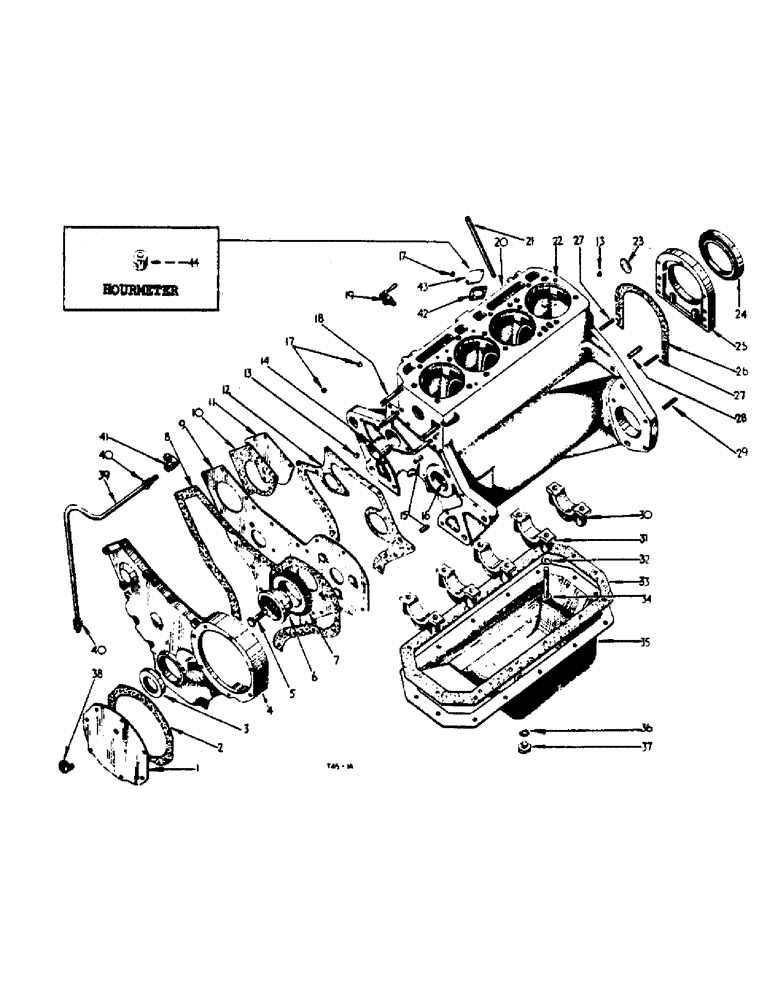

Запчасти Case IH B275 (008) - DIESEL ENGINE, CRANKCASE, FRONT COVER AND OIL PAN (01) - ENGINE

1

709904R2

COVER

injection pump gear, BD-144/17289A up

1шт.

1

751611R21

COVER, injection pump gear, Serial Range: BD-144/4677A-17288A

1шт.

1

751611R11

COVER, injection pump gear (Order 3040332R91), Serial Range: Up-BD-144/4676A

1шт.

1

3040337R1

COVER, injection pump gear (Tractors with increased capacity cooling)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex, hd., 5/16" x 2-1/2"

5шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

2

703849R1

GASKET

injection pump gear cover

1шт.

3

20290D

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

4

708284R11

COVER

front crankcase cpte., w/oil seal 20290D, BD-144/17289A up

1шт.

4

703843R11

COVER, front crankcase cpte., w/oil seal 20290D and pointer 712064R1, Serial Range: Up-BD-144/17288A

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex. hd., 1/2" UNF x 1-7/8"

1шт.

6

703853R11

SHAFT

idler gear, cpte., w/pin 932039

1шт.

932039

PIN, ROLL

3 MM x 16 MM

1шт.

7

703852R1

GEAR

idler

1шт.

8

708285R1

GASKET

crankcase front cover, BD-144/17289A up

1шт.

8

703847R1

GASKET

crankcase front cover, Serial Range: Up-BD-144/17288A

1шт.

9

709901R11

PLATE

front, crankcase, cpte., BD-144/17289A up

1шт.

9

703841R21

PLATE, front, crankcase, cpte., w/three locks 46250D and three rivets 110638, Serial Range: Up-BD-144/17288A

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

NLS

NO LONGER SERVICED

SCREW, machine, slotted-flat-hd., 1/4" x 3/4"

2шт.

703636R1

WASHER

tab, front plate bolt

1шт.

114616

WASHER

lock, csk., external tooth, 1/4"

2шт.

10

703851R1

GASKET

hydraulic pump opening cover

1шт.

11

703850R1

COVER

hydraulic pump opening

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

hex, hd., 5/16" x 2-1/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

plain, 3/4" O.D. x 11/32" I.D. x 16 ga.

1шт.

12

709903R1

GASKET

crankcase front plate

1шт.

13

103884

PLUG,Slotted, 1/4" NPT

pipe, headless, slotted, 1/4"

2шт.

14

703827R1

CAMSHAFT BEARING

BUSHING, camshaft, front

1шт.

14

703828R1

CAMSHAFT BEARING

BUSHING, camshaft, center

1шт.

14

703829R1

CAMSHAFT BEARING

BUSHING, camshaft, rear

1шт.

15

141244

PIN

dowel (Crankshaft front)

2шт.

16

751610R1

INSERT

lock, idler gear bolt screw (1/2" UNF x 1/2")

1шт.

17

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

18

703832R1

STUD

water pump

4шт.

19

106794

VALVE

TAP, water drain

1шт.

20

3040912R21

CRANKCASE

cpte., BD-144/17289A up, comprising

1шт.

708350R1

CAPSCREW

BOLT

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

706491R1

CAP

1шт.

708902R1

CAP

1шт.

751834R1

INSERT

16шт.

751610R1

INSERT

1шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

NLS

NO LONGER SERVICED

2шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

NLS

NO LONGER SERVICED

PLUG

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

703832R1

STUD

4шт.

703877R1

STUD

1шт.

106794

VALVE

TAP

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

709547R1

WASHER

10шт.

703836R1

WIRE

5шт.

20

751609R31

CRANKCASE

cpte. (Order package, 3042475R92), up to BD-144/17288 A, comprising

1шт.

708350R1

CAPSCREW

BOLT

10шт.

703827R1

CAMSHAFT BEARING

BUSHING

1шт.

703828R1

CAMSHAFT BEARING

BUSHING

1шт.

703829R1

CAMSHAFT BEARING

BUSHING

1шт.

706491R1

CAP

1шт.

708902R1

CAP

1шт.

751834R1

INSERT

16шт.

751610R1

INSERT

1шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

141244

PIN

2шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

103884

PLUG,Slotted, 1/4" NPT

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

703832R1

STUD

4шт.

703877R1

STUD

1шт.

106794

VALVE

TAP

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

WASHER

10шт.

703836R1

WIRE

5шт.

21

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick, BD-144/8783A up

1шт.

22

751834R1

INSERT

thread, 7/16" - 14 heli-coil

16шт.

23

172578

PLUG,Exp, 1 3/4"

expansion (Type 1, 1-3/4")

1шт.

24

708903R91

HOLDER

OIL SEAL, crankshaft, rear

1шт.

25

708904R1

RETAINER

crankshaft, rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft, rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

26

708907R1

GASKET

crankshaft rear oil seal retainer

1шт.

27

141223

DOWEL,5/16" x 1"

PIN, dowel, crankshaft rear oil seal retainer

2шт.

28

141287

DOWEL,1/2" x 1 1/2"

PIN, dowel (crankcase rear)

2шт.

29

703877R1

STUD

starter motor

1шт.

30

708902R1

CAP

crankshaft bearing, rear

1шт.

Ref #30 - 3043026R1 11/17/95

1шт.

31

706491R1

CAP

crankshaft bearing

1шт.

Ref #31 - 3043025R1 11/17/95

1шт.

32

709547R1

WASHER, crankshaft bearing cap bolt

10шт.

33

703840R1

GASKET

crankcase pan

1шт.

34

708350R1

CAPSCREW

BOLT, crankshaft bearing cap

10шт.

WIRE, lock, crankshaft bearing cap screw (Use bulk wire)

5шт.

35

704712R21

HOUSING

PAN, oil, crankcase, cpte

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

36

3405H

GASKET

crankcase pan drain plug

1шт.

37

359875R1

PLUG

drain, crankcase pan

1шт.

38

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

breather pipe (Injection pump gear cover end)

1шт.

39

3040831R1

PIPE, crankcase breather, BD-144/17289A up

1шт.

39

3040331R1

PIPE, crankcase, breather, Serial Range: BD-144/4677A-17288A

1шт.

39

709460R11

PIPE, crankcase breather, Serial Range: Up-BD-144/4676A

1шт.

40

222-504

TUBE NUT,9/16"-20

NUT, connector, crankcase breather pipe, cpte.

2шт.

41

57068D

ELBOW, breather pipe (Intake manifold end)

1шт.

42

3042467R1

GASKET

hourmeter drive opening, BD-144/17289A up

1шт.

43

3042468R1

COVER

hourmeter drive opening, BD-144/17289A up

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

3042472R92

METER

HOURMETER, cpte., BD-144/17289A up

1шт.

3043077R1

COVER

feed pump opening, used only with service package

1шт.

138221

BRACKET

cap, socket hd., 5/16" x 3/4", used only with service package

2шт.

708295R1

GASKET

fuel feed pump, used only with service package

1шт.

46250D

LOCK, crankcase front plate cap screw

3шт.

110638

RIVET

3/16" x 5/16" rd. hd.

3шт.

3040332R91

PACKAGE, service, injection pump gear cover, comprising

1шт.

751611R21

COVER

1шт.

3040331R1

PIPE

1шт.

700153R11

NUT

2шт.

3042475R92

CRANKCASE

PACKAGE, service, crankcase, comprising

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3042468R1

COVER

1шт.

3043077R1

COVER

1шт.

3040912R21

CRANKCASE

1шт.

708295R1

GASKET

1шт.

3042467R1

GASKET

1шт.

27586R1

12 PT SCREW,Flg, 5/16"-18 x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

706975R1

PIN, roll (Dipstick), Serial Range: Up-BD-144/8782A

1шт.

712064R1

POINTER, timing, Serial Range: Up-BD-144/17288A

1шт.

Note - 706977R91 Oil Level Gauge goes into Ref #21 Dipstick Tube. (page 30 Ref 22) 11/17/95

1шт.
