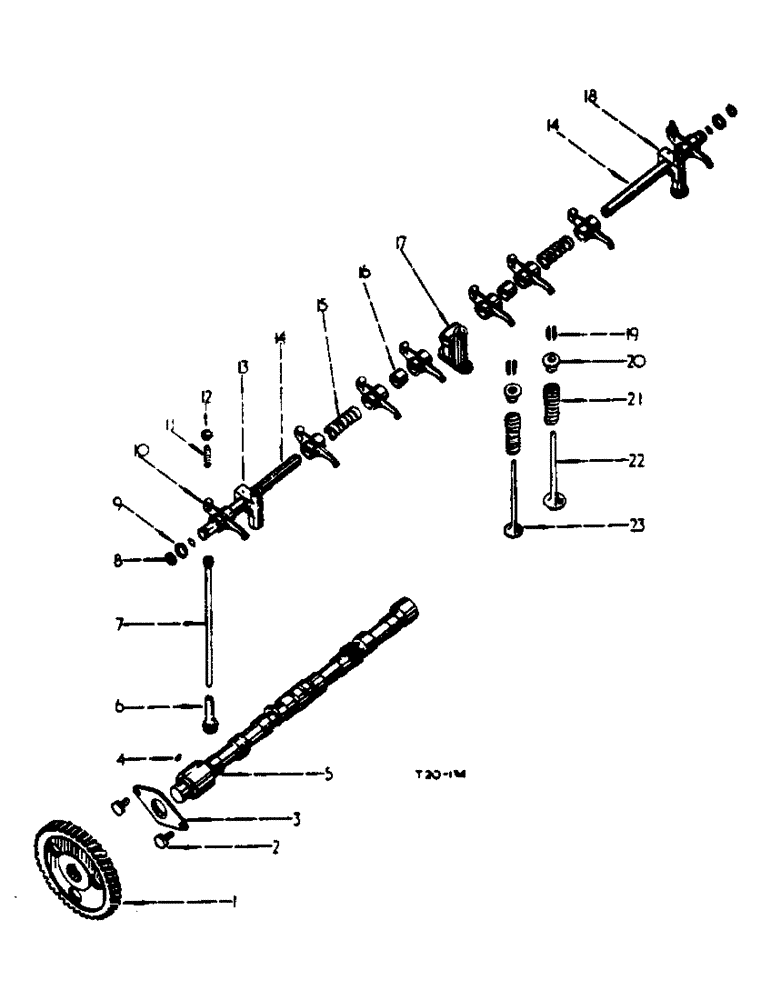

Запчасти Case IH B275 (007) - DIESEL ENGINE, CAMSHAFT AND VALVE MECHANISM (01) - ENGINE

1

703812R1

GEAR

camshaft (66 teeth)

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Type A Int Tooth, 3/8"

2шт.

3

43249D

PLATE

thrust, camshaft

1шт.

4

218217

KEY

camshaft gear

1шт.

5

709450R1

CAMSHAFT

1шт.

6

704782R1

TAPPET

valve

8шт.

7

704783R2

ROD

push valve

8шт.

8

43375D

RING

snap, valve lever shaft

2шт.

9

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

10

706131R11

ROCKER

LEVER, valve, cpte. w/eight bushings 24564DA

8шт.

10

709338R1

LEVER

valve, (Spheroidal graphite iron)

8шт.

11

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting valve lever

8шт.

12

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

13

703886R2

SUPPORT

BRACKET, valve lever shaft - front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

14

703884R21

CAMSHAFT

SHAFT, valve lever, cpte., w/plug 172528

2шт.

172528

PLUG,Exp, 9/16"

end, valve lever shaft

2шт.

15

45949D

SPRING

valve lever

2шт.

16

703893R2

SPACER

valve lever

2шт.

17

703885R1

SUPPORT

BRACKET, valve lever shaft - center

1шт.

18

703887R2

SUPPORT

BRACKET, valve lever shaft - rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

19

704443R1

WEDGE

LOCK, valve spring

16шт.

20

704446R1

CUP

retainer, valve spring

8шт.

21

710347R2

VALVE SPRING

SPRING, valve

8шт.

22

704434R1

LOCK VALVE

VALVE, intake

4шт.

23

704435R1

VALVE

exhaust, Serial Range: up-BD-144/27051A

4шт.

23

3043825R1

STD EXHAUST VALVE

VALVE, exhaust, BD-144/27052A up

4шт.

24564DA

BUSHING

rocker arm (Valve lever, cpte.)

8шт.
