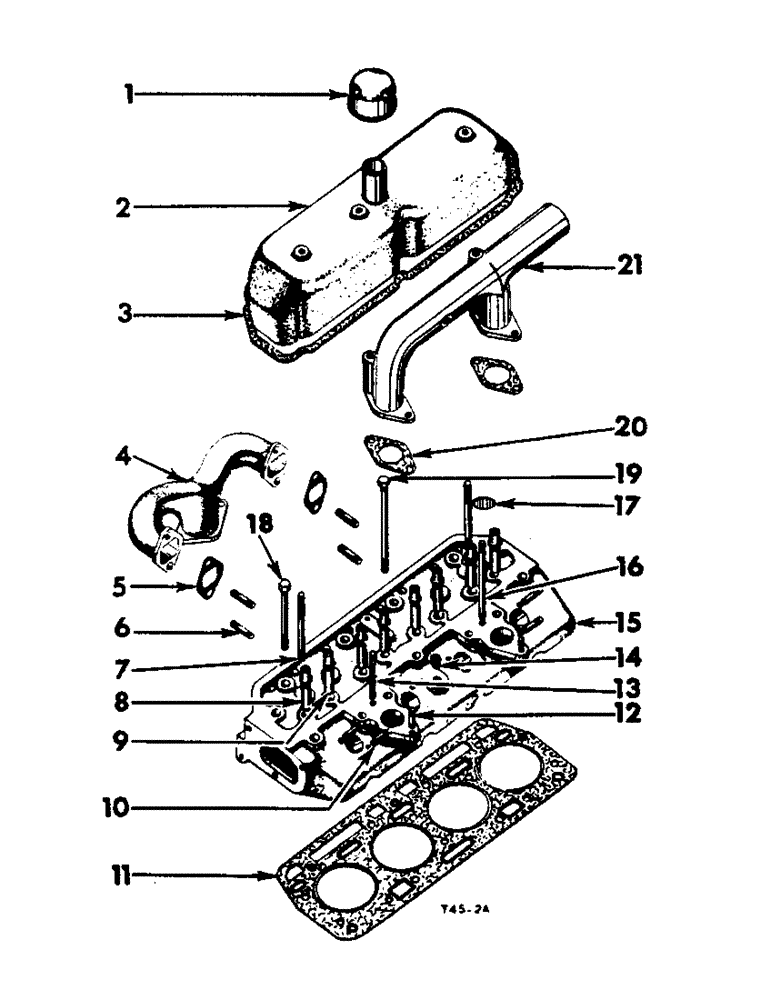

Запчасти Case IH B275 (005) - DIESEL ENGINE, CYLINDER HEAD AND MANIFOLDS (01) - ENGINE

1

364901R91

BREATHER

cylinder head

1шт.

1

364901R91GV

CAP

Value, cylinder head

1шт.

2

703894R11

NO LONGER SERVICED

COVER, valve housing, cpte.

1шт.

.

102635

NUT,3/8"-16, G5

2шт.

3

703896R1

GASKET

valve cover

1шт.

4

704163R21

MANIFOLD

exhaust, cpte., w/two studs 704164R1

1шт.

.

20299D

NUT

exhaust manifold stud

4шт.

.

704164R1

STUD

exhaust manifold

2шт.

5

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

6

703874R1

STUD

exhaust mahifold

4шт.

7

703875R1

STUD

rocker shaft end bracket

2шт.

8

704456R2

VALVE GUIDE

GUIDE, valve stem, exhaust

4шт.

9

704455R1

VALVE GUIDE

GUIDE, valve stem, intake

4шт.

10

703876R2

STUD

injection nozzle holder

8шт.

11

703883R5

GASKET

cylinder hd.

1шт.

12

703877R1

STUD

intake manifold, L.H.

2шт.

13

703878R1

STUD, intake manifold, R.H., front

1шт.

14

219199

PLUG

pipe, sq. hd., malleable iron, 1/2"

1шт.

14

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Cast iron Sq Hd, 1/2"-14 NPTF

1шт.

15

703872R97

NO LONGER SERVICED

HEAD, cylinder, assy., with valves, Comprising

1шт.

.

704446R1

CUP

8шт.

.

3043824R11

CYLINDER HEAD

HEAD

1шт.

.

704443R1

WEDGE

LOCK

16шт.

.

710347R2

VALVE SPRING

SPRING

8шт.

.

704434R1

LOCK VALVE

VALVE

4шт.

.

3043825R1

STD EXHAUST VALVE

VALVE

4шт.

15

3043824R11

CYLINDER HEAD

HEAD, cylinder, assy., less valves, Comprising

1шт.

Also order four valves, P/N 3043425R1 up to BD-144/27051A.

1шт.

.

704455R1

VALVE GUIDE

GUIDE

4шт.

.

704456R2

VALVE GUIDE

GUIDE

4шт.

.

172558

PLUG,Exp, 1 1/4"

1шт.

.

703874R1

STUD

4шт.

.

703876R2

STUD

8шт.

.

703875R1

STUD

2шт.

.

703877R1

STUD

2шт.

.

703878R1

STUD

1шт.

.

703879R2

STUD

1шт.

16

703879R2

STUD, intake manifold, R.H., rear

1шт.

17

172558

PLUG,Exp, 1 1/4"

expansion

1шт.

18

708331R1

BOLT

BOLT, cylinder head, short

15шт.

19

708332R1

BOLT,Cyl Hd

cylinder hd., long

1шт.

.

63116D

WASHER

cylinder hd. bolt

16шт.

20

704162R1

MANIFOLD GASKET

intake manifold

2шт.

21

709464R1

MANIFOLD, air intake (For DAP) BD-144/17289 A up

1шт.

21

751614R1

MANIFOLD, air intake (For pneumatic governor) Up to BD-144/17288 A

1шт.

.

102635

NUT,3/8"-16, G5

4шт.

.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

.

CAP, retainer, valve spring (See camshaft and valve machanism)

8шт.

.

LOCK, valve spring (See cmshaft and valve machanism)

16шт.

.

SPRING, valve (See camshaft and valve mechanism)

8шт.

.

VALVE, exhaust (See camshaft and valve mechanism)

4шт.

.

VALVE, intake (See camshaft and valve mechanism)

4шт.
