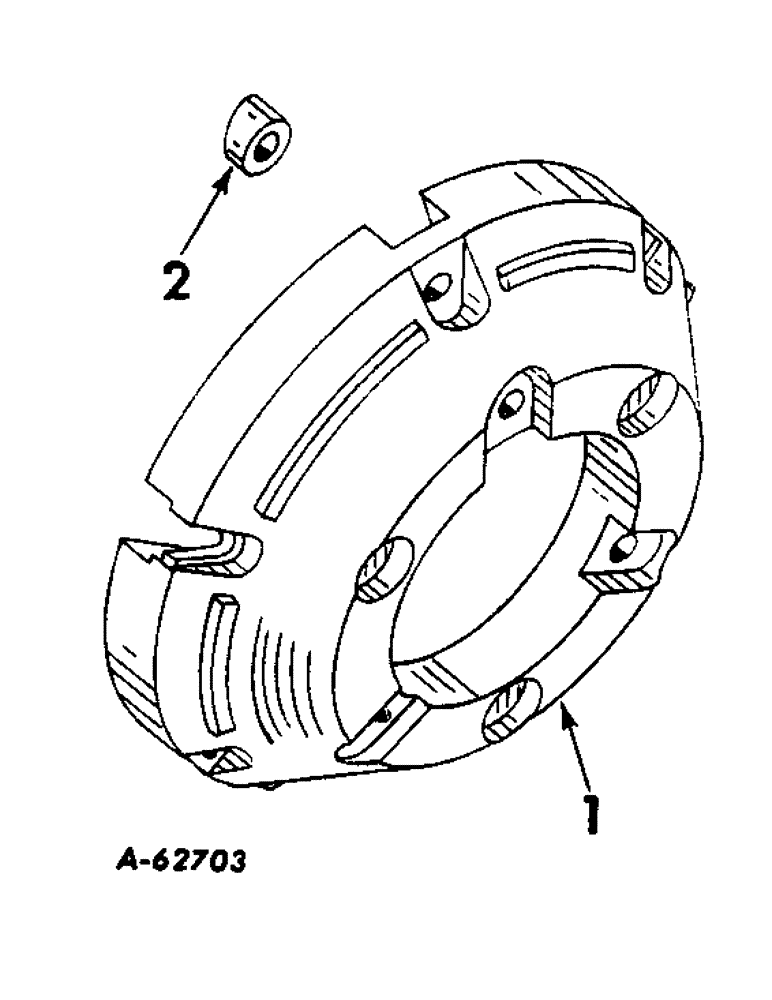

Запчасти Case IH B275 (125) - ATTACHMENTS, REAR WHEEL WEIGHTS, FOR W11 X 28 RIM Attachments

376510R91

WEIGHTS, rear wheel, 1st, 2nd and 3rd set, Comprising

1шт.

1

376511R1

WEIGHT, rear wheel (Approx. 135 lbs.)

2шт.

2

376509R1

WASHER, weight mounting

6шт.

1

376511R1

WEIGHT, rear wheel, 1st set

2шт.

13380R1

BOLT, mach., sq-hd., 5/8" x 2-1/2" (For mounting on convex side of wheel having 10-3/4" dia. bolt circle)

6шт.

13454R1

BOLT, mach., sq-hd., 5/8" x 3-1/2" (For mounting on concave side of wheel having 19" dia. bolt circle or on concave side of wheel having either 10-3/4" or 19" bolt circle)

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

1

376511R1

WEIGHT, rear wheel, 2nd or 3rd set

2шт.

13454R1

BOLT, mach., sq-hd., 5/8" x 3-1/2"

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

2

376509R1

WASHER, weight mounting

6шт.
