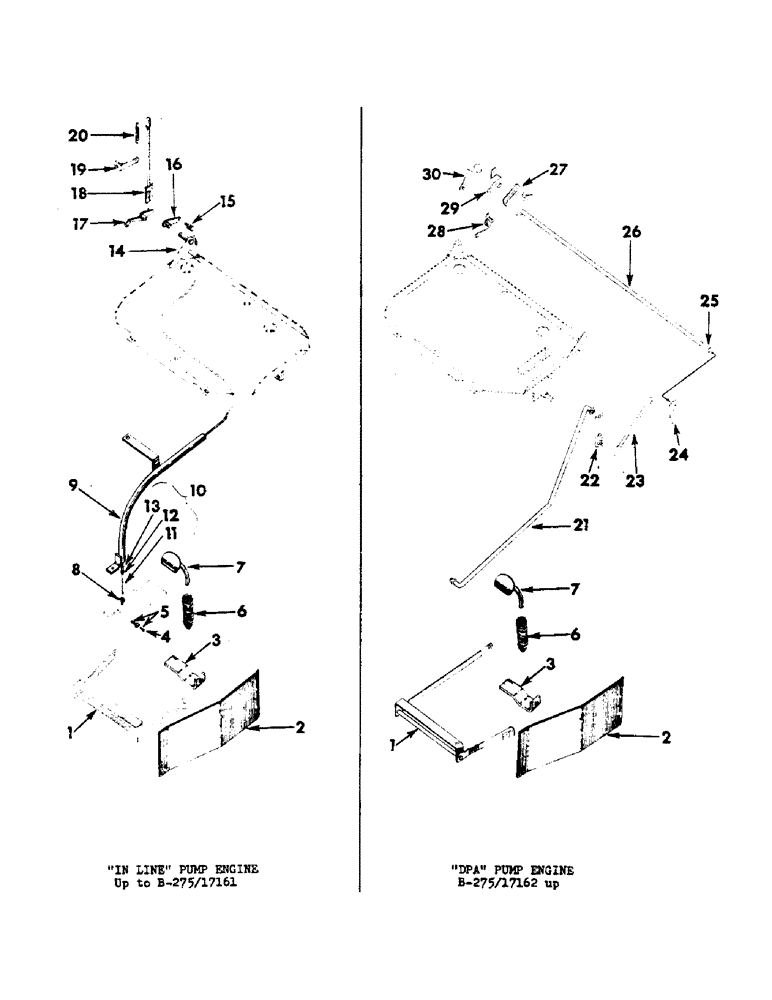

Запчасти Case IH B275 (123) - ATTACHMENTS, FOOT OPERATED ACCELERATOR ATTACHMENT Attachments

751678R91

FOOT OPERATED ACCELERATOR, attachment (In line pump) (A)

1шт.

3042744R91

FOOT OPERATED ACCELERATOR, attachment (DPA pump) (B)

1шт.

1

3040084R91

BRACKET, foot control cross shaft cpte., (A)

1шт.

1

3042747R91

BRACKET, foot control cross shaft cpte., (B)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

751666R1

PLATE, foot guide

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(B) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

(A) 3/8"-16, G5

1шт.

102635

NUT,3/8"-16, G5

(B) 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A) 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B) 3/8"

2шт.

3

751661R1

BRACKET, foot guide plate (A)

1шт.

4

133440

SPARE PART

SCREW, machine, slotted, csk., no. 6 x 3/4" (A)

1шт.

5

751667R11

PIN, cable, securing, cpte., w/screw 133440 (A)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2" (A)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 1/16" (A)

1шт.

6

751665R1

SPRING

foot control pedal (A)

1шт.

6

709137R1

SPRING

foot control pedal (B)

1шт.

7

751662R91

PEDAL, foot control, cpte. (A)

1шт.

7

3042752R91

PEDAL, foot control, cpte. (B)

1шт.

8

751670R1

HOLDER, foot plate cable (A)

1шт.

9

751675R11

CARRIER, foot control, cable cpte. (A)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/4" x 1-1/8" (A)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(A) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

(A) 1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (A) 1/4"

1шт.

10

751668R91

CABLE, foot operated, cpte., w/cable 751669R1, conduit 707697R1 and two ends 707698R1 (A)

1шт.

s11

751669R1

CABLE, foot operated accelerator (A)

1шт.

12

707698R1

END, conduit (A)

2шт.

13

707697R1

CONDUIT, foot operated accelerator cable (A)

1шт.

14

751679R91

BRACKET, cross shaft, cpte. (A)

1шт.

15

751674R1

HOLDER, cable (A)

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2" (A)

1шт.

16

751671R11

LEVER, two control, cpte. (A)

1шт.

17

709675R91

BELL CRANK, governor control rod, cpte. (A)

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2" (A)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 1/16" (A)

1шт.

18

709679R91

ROD, connecting, bell crank to venturi cpte. (A)

1шт.

19

709677R1

BRACKET, venturi link spring (A)

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(A) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

(A) Jam, 5/16"-18, G5

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 1/16" (A)

1шт.

20

709678R1

SPRING, venturi link (A)

1шт.

21

3042754R11

ROD, governor control (B)

1шт.

16558R1

WASHER

plain, 7/64" I.D. x 5/8" O.D. x 16 ga. (B)

2шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2" (B)

2шт.

22

3042755R11

BELLCRANK, foot control rod (B)

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x 16 ga. (B)

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), (B) 1/16" x 5/8"

1шт.

23

709155R91

ROD

bell crank to cross shaft (B)

1шт.

24

709156R11

LEVER

cross shaft (B)

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

(B) Jam, 1/4"-20, G5

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

slt-rd-hd. mach. 1/4" x 1" (B)

1шт.

25

709184R1

SPACER, cross shaft (B)

1шт.

26

709185R11

CROSS SHAFT, cpte. (B)

1шт.

27

709191R1

LINK

bell crank connecting (B)

1шт.

16558R1

WASHER

plain, 17/64" I.D. x 5/8" O.D. x 16 ga. (B)

2шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2" (B)

2шт.

28

3042759R1

SPRING, bell crank return (B)

1шт.

29

3042758R11

BELL CRANK, governor control rod (B)

1шт.

30

709190R11

BELL CRANK, operating, lever, cpte. (B)

1шт.
