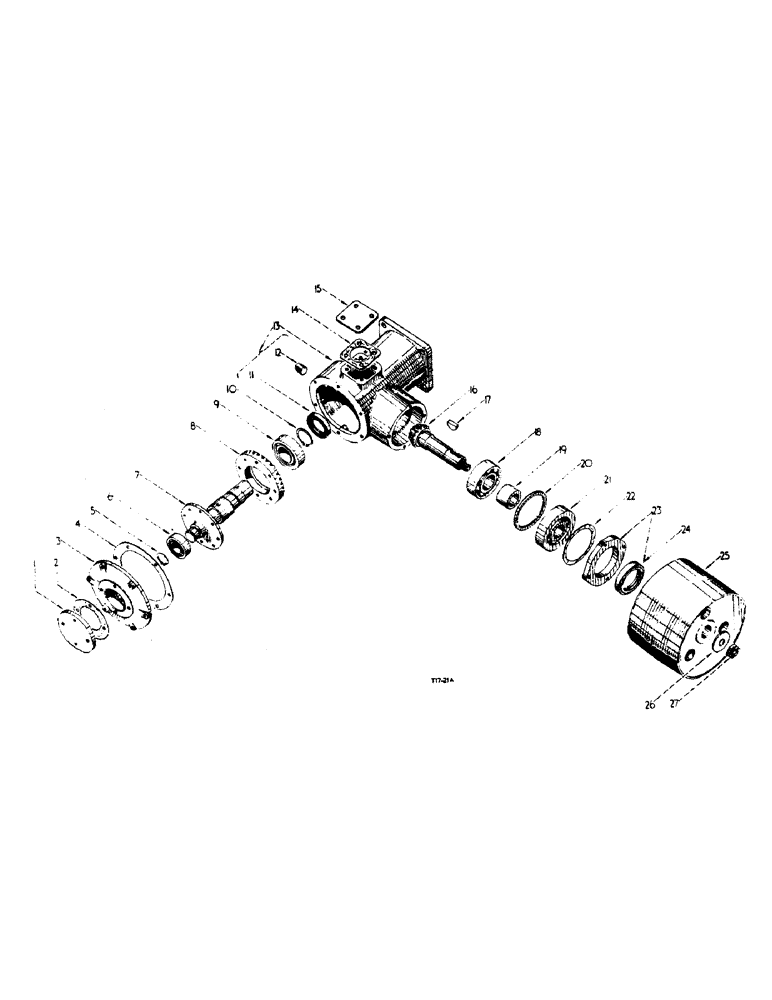

Запчасти Case IH B275 (121) - ATTACHMENTS, BELT PULLEY ATTACHMENT Attachments

704227R91

BELT PULLEY, attachment (704227R91)

1шт.

1

711877R1

RETAINER

belt pulley bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

711304R2

GASKET

belt pulley bearing retainer

1шт.

3

704241R1

COVER, belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" x 1-1/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

704239R1

GASKET

SHIM, belt pulley drive housing cover - heavy, 2 needed

1шт.

Or as required

1шт.

4

704240R1

SHIM, belt pulley drive housing cover - light, 2 needed

1шт.

Or as required

1шт.

4

707844R1

SHIM

belt pulley drive housing cover - .002

1шт.

5

704238R1

RETAINER

CIRCLIP, exteranl type, 35 MM. shaft size

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft - outer

1шт.

7

704231R12

SHAFT

belt pulley drive cpte.

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

8шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

8шт.

8

704233R2

GEAR

bevel, belt pulley

1шт.

9

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft - inner

1шт.

10

751638R1

RING, SNAP

CIRCLIP, external type, 50 MM. shaft size

1шт.

11

704229R91

OIL SEAL

belt pulley drive housing, or

1шт.

11

704230R91

SEAL

OIL SEAL, belt pulley drive housing

1шт.

12

217-442

PLUG,3/4" - 14

pipe, 3/4"

1шт.

13

704228R11

HOUSING

belt pulley drive, cpte., w/oil seal 704229R91 and plug 103869

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

711882R1

GASKET

belt pulley drive housing top cover plate

1шт.

15

711881R1

PLATE

top cover, belt pulley drive housing

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex. hd., 3/8" x 11/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

704242R1

GEAR

PINION, and shaft, belt pulley drive bevel

1шт.

17

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

18

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, ball, belt pulley pinion - inner

1шт.

19

704243R1

SPACER

bearing, belt pulley

1шт.

20

706745R1

SPACER

belt pulley pinion shaft (.148 thick)

1шт.

20

711863R1

SPACER

belt pulley pinion shaft (.150 thick)

1шт.

20

711864R1

BLOCK

SPACER, belt pulley pinion shaft (.152 thick)

1шт.

20

711865R1

RING

SPACER, belt pulley pinion shaft (.154 thick)

1шт.

20

711866R1

BLOCK

SPACER, belt pulley pinion shaft (.156 thick)

1шт.

20

711867R1

BLOCK

SPACER, belt pulley pinion shaft (.158 thick)

1шт.

20

711868R1

SPACER

belt pulley pinion shaft (.160 thick)

1шт.

20

711869R1

BLOCK

SPACER, belt pulley pinion shaft (.162 thick)

1шт.

20

711870R1

SPACER

belt pulley pinion shaft (.164 thick)

1шт.

21

137869H

BEARING

ball, belt pulley pinion - outer

1шт.

22

711872R1

GASKET

retainer, belt pulley pinion shaft

1шт.

23

704246R11

RETAINER

belt pulley pinion shaft cpte., w/oil seal 704247R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

704247R91

OIL SEAL

belt pulley pinion shaft retainer, or

1шт.

24

704248R91

SEAL

OIL SEAL, belt pulley pinion shaft retainer

1шт.

25

704249R11

PULLEY

belt, cpte., w/bushing 704250R1

1шт.

704250R1

BUSHING

belt pulley

1шт.

26

704251R1

WASHER

retainer, belt pulley

1шт.

27

704252R1

NUT

belt pulley pinion shaft

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.
