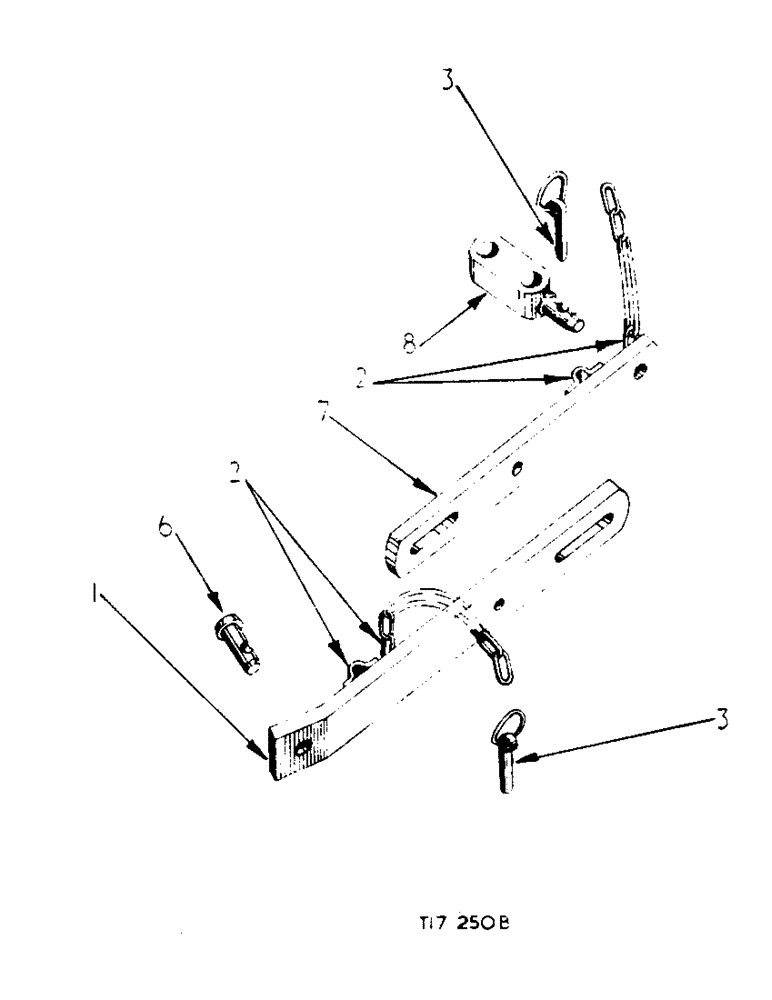

Запчасти Case IH B275 (120) - ATTACHMENTS, ADJUSTABLE CHECK LINK ATTACHMENT Attachments

707067R91

ADJUSTABLE CHECK LINK, attachment

1шт.

1

707069R12

ADJUSTER

ADJUSTABLE, check link, outer, cpte., w/holder 707071R12 and pin 704212R91

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

hex. hd., 1-1/2" x 1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16038R1

WASHER

plain, 17/32" I.D. x 1" O.D. x 11 ga.

2шт.

102637

NUT,1/2"-13, G5

2шт.

2

707071R12

HOLDER, lynch pin, cpte.

2шт.

3

372097R91

PIN, lynch, cpte.

2шт.

6

707072R1

PIN

attaching, check link

1шт.

7

707068R12

ADJUSTER

check link, inner, cpte., w/holder 707071R12 and pin 704212R91

1шт.

8

707070R1

BRACKET, check link

1шт.

17579R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 2

hex. hd., 2-1/2" x 3/4"

2шт.

220081

NUT

hex., 3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
