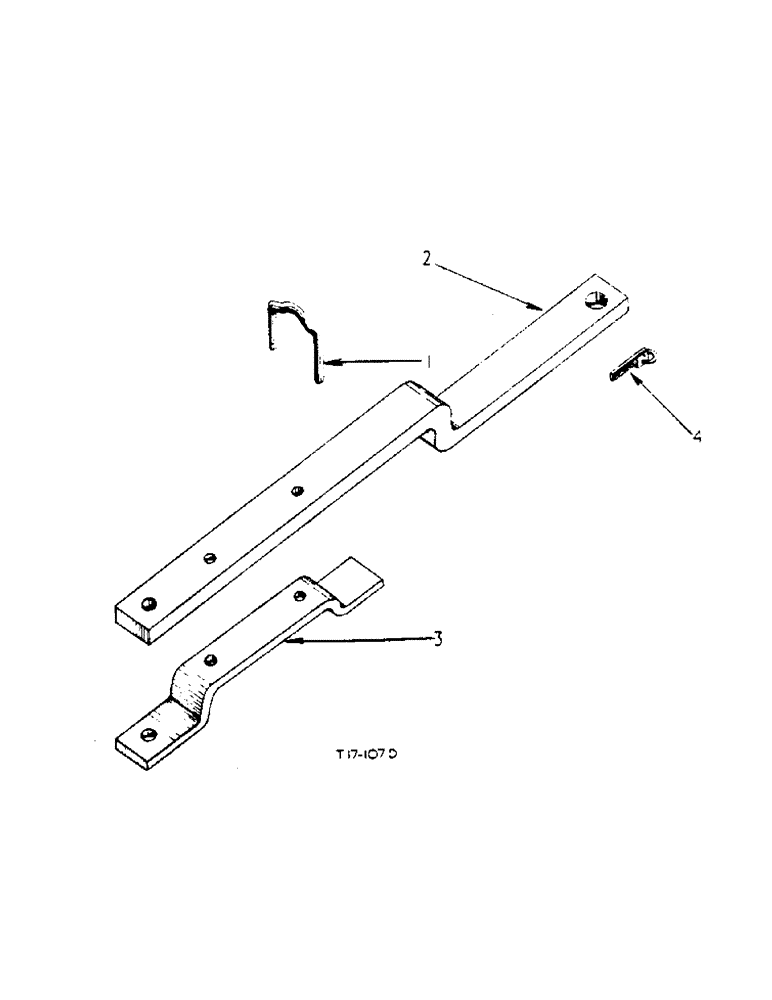

Запчасти Case IH B275 (119) - ATTACHMENTS, SWINGING DRAWBAR ATTACHMENT Attachments

SWINGING DRAWBAR, attachment (705947R91)

1шт.

1

704061R5

PIN

stop, swinging drawbar

1шт.

520175R1

CLIP

PIN, cotter

1шт.

2

704059R1

NO LONGER SERVICED

DRAWBAR, swining

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

hex. hd., 2-1/2" x 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

704060R1

NO LONGER SERVICED

CLEVIS, drawbar

1шт.

4

372907R91

LINCH PIN

COTTER, implement, cpte.

1шт.
