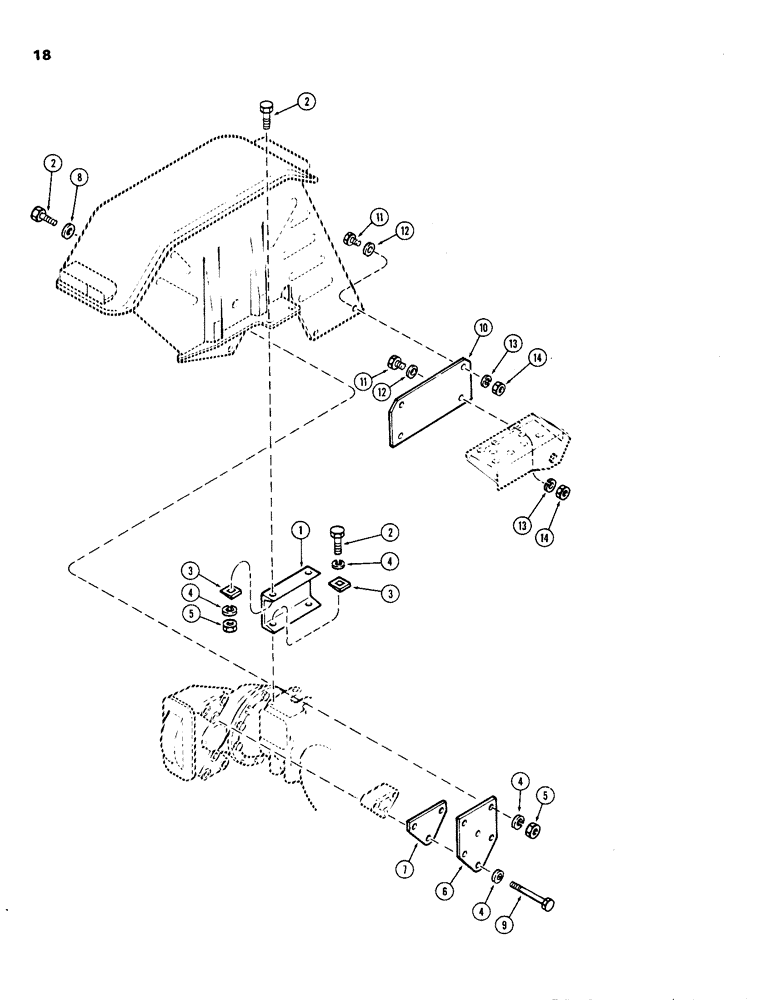

Запчасти Case IH 995 (18) - FENDER SUPPORTS, 995 ROW CROP TRACTORS (09) - CHASSIS

1

A145881

SUPPORT fender to rear axle housing

2шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

14шт.

3

195-902

WASHER

square beveled

8шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

14шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

6

A145121

BRACKET fender to axle platform

2шт.

7

A145872

SPACER bracket

2шт.

8

195-106

WASHER,1/2"

9/16 x 1-3/8 x 7/64", 14.3 x 34.9 x 2.8 mm

6шт.

9

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

6шт.

10

A145854

EXTENSION fender

2шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

12

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16", 7.9 x 19.1 x 1.6 mm

4шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
