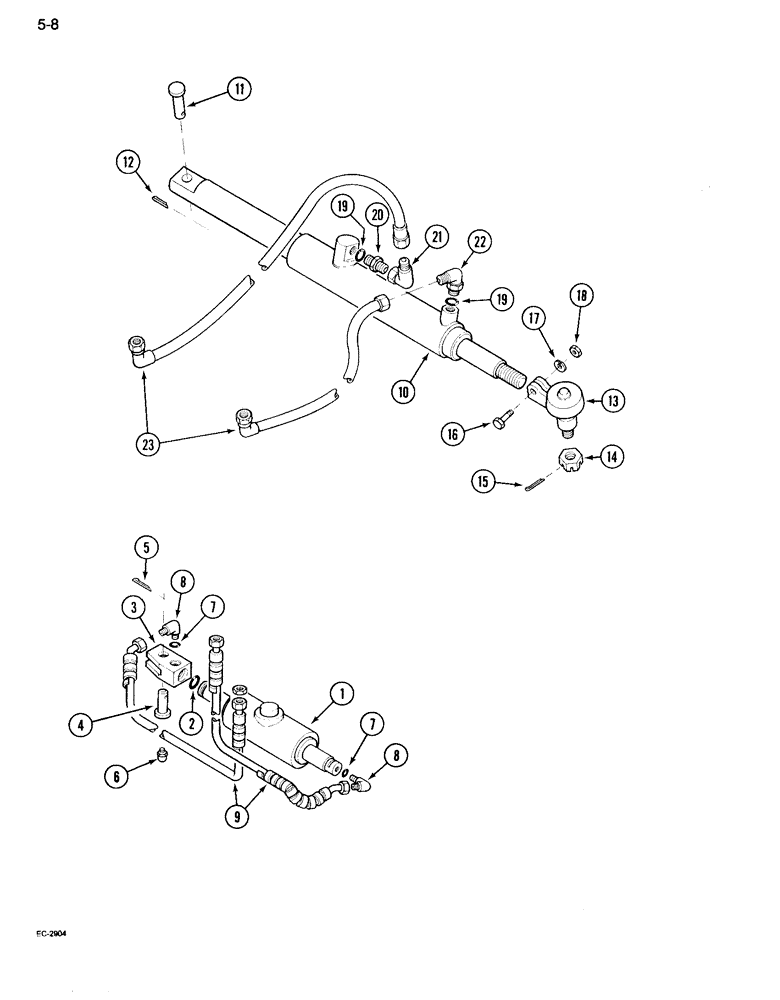

Запчасти Case IH 995 (5-08) - POWER STEERING CYLINDERS AND HOSES, TWO WHEEL DRIVE TRACTOR (05) - STEERING

1

549667R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering (See Figure 5-26), adjustable front axle

1шт.

84336125R

REMAN-HYD CYLINDER

995 (1/90-12/94), Reman for New P/N 549667R93

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

3125306R1

CLEVIS,9/16" - 18

- cylinder end

1шт.

4

3125305R1

PIN

- power steering cylinder

1шт.

5

1970958C1

PIN, SPLIT (COTTER)

PIN - cotter, 1/4 x 1-1/4 inch

1шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

9

3121235R1

HOSE

ASSEMBLY - power steering cylinder, adjustable front axle

2шт.

10

3118502R93

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering (See Figure 5-28), swept back cast front axle

1шт.

11

518505R1

HEADED PIN,3/4" x 3"

PIN - headed, 3/4 x 3 inch

1шт.

12

32-1628

COTTER PIN,1/4" x 1 3/4"

PIN, SPLIT (COTTER), 1/4" x 1 3/4"

1шт.

13

378817R91

BALL JOINT

END ASSEMBLY - power steering cylinder

1шт.

14

272336

GASKET

- hex slotted, 7/8 inch NC

1шт.

15

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex, 3/8 NF x 1-3/4 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

21

9410254

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 45 degree, swivel, 9/16-18 inch flare x O-ring boss

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

23

3121235R1

HOSE

ASSEMBLY - power steering cylinder, swept back cast front axle

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
