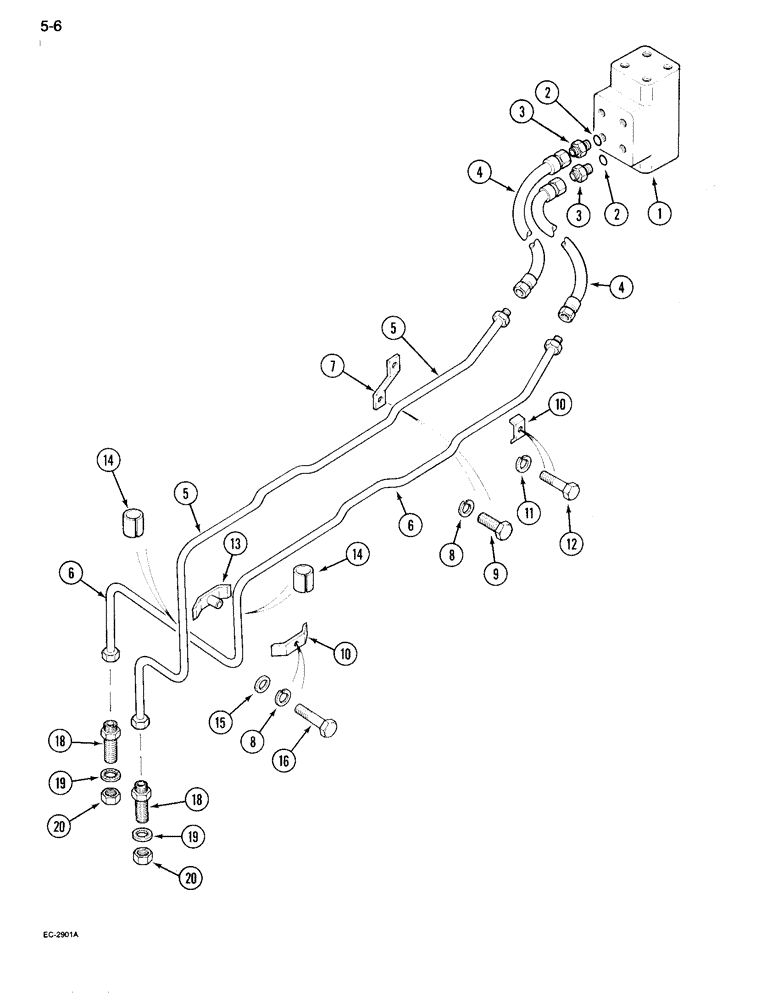

Запчасти Case IH 995 (5-06) - POWER STEERING TUBES, FRONT, TWO WHEEL DRIVE TRACTOR (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - integral, power steering (See Figure 5-24)
1шт.
2
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
2шт.
3
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss
2шт.
5
99753C3
PIPE
TUBE ASSEMBLY - power steering, front left (With flange type rear axle)
1шт.
5
99486C2
PIPE
TUBE ASSEMBLY - power steering, front left (With bar type rear axle) (Without cab)
1шт.
5
1282990C2
HYD TUBE
TUBE ASSEMBLY - power steering,front left (Without cab) (With flange type rear axle and high clearance or fabricated bolsters)
1шт.
6
99485C2
PIPE
TUBE ASSEMBLY - power steering, front right (With bar type rear axle) (Without cab)
1шт.
6
1282991C2
HYD TUBE
TUBE ASSEMBLY - power steering, front right (Without cab) (With flange type rear axle and high clearance or fabricated bolsters)
1шт.
12
613-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd
- hex, 6 mm - 1 x 25 mm
1шт.
18
218-673
FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
FIT STL BULKHD .375MJ .375MJ
2шт.
19
93-21065
LOCK WASHER,Int Tooth, 5/8"
WASHER - lock, internal tooth, 5/8 inch
2шт.
