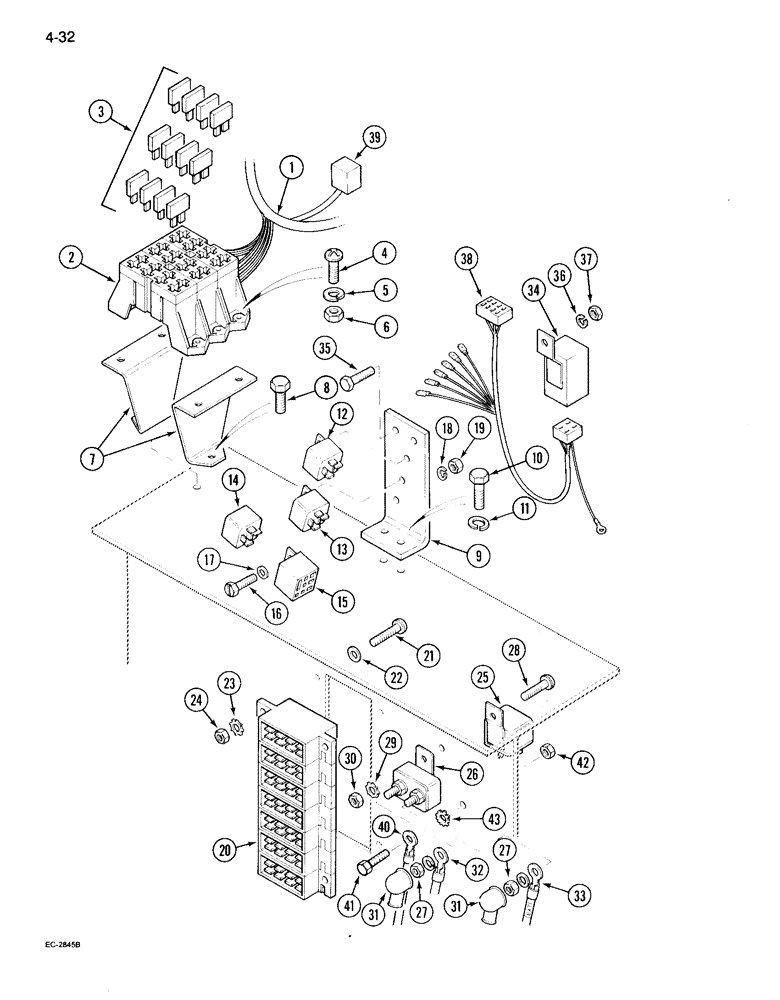

Запчасти Case IH 995 (4-32) - BULKHEAD ELECTRICS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1536959C1

HARNESS

ASSEMBLY - instrument panel (Prior to P.I.N. JJE0017402), Includes: Ref. 2

1шт.

1

1537986C1

HARNESS

ASSEMBLY - instrument panel (P.I.N. JJE0017402 and After), Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - fuse holder

1шт.

3

A149796

FUSE

- auto type, 3 amp (Violet)

1шт.

3

A149798

FUSE

- auto type, 5 amp (Tan)

1шт.

3

A149800

FUSE,10 Amp

- auto type, 10 amp (Red)

1шт.

3

A149801

FUSE,Lt Blue, 15 Amp

- auto type, 15 amp (Light blue)

1шт.

3

A149802

FUSE

- auto type, 20 amp (Yellow)

1шт.

4

30277R1

SCREW,Cross Pan Hd, M4 x 14

- pan, cross recess, 4 mm x 14 mm

4шт.

5

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

4шт.

6

829-1304

NUT,M4, Cl 8

- hex, 4 mm - 0.70, class 10

4шт.

7

91844C1

SUPPORT

BRACKET - fuse box

2шт.

8

614-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

2шт.

9

3129809R1

SUPPORT

BRACKET - reservoir support

1шт.

10

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

12

1983420C1

RELAY

- miniature, with bracket (Rear lights)

1шт.

13

1983420C1

RELAY

- miniature, with bracket (Cab power)

1шт.

14

146461C1

RELAY

- miniature, without bracket (MFD)

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - relay mounting

1шт.

16

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

- machine, pan slotted, 5 mm x 12 mm

1шт.

17

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

- flat, 5 mm

1шт.

18

892-10005

LOCK WASHER,M5

WASHER - lock, 5 mm

1шт.

19

933972R1

NUT

- hex, 5 mm

1шт.

20

3399527R2

CONNECTOR, ELEC

CONNECTOR - bulkhead

1шт.

21

30479R1

SCREW,Cross Pan Hd, M5 x 16

- pan, cross recess, 5 mm x 16 mm

4шт.

22

895-10005

WASHER,M5 x 10 x 1

- plain, 5.5 x 10.0 x 1.0 mm

4шт.

23

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

4шт.

24

824-1405

NUT,M5, Cl 5

4шт.

25

1983420C1

RELAY

- miniature, with bracket (Front work lights)

1шт.

26

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp, auto-reset

1шт.

27

225-14210

NUT,#10-32

2шт.

28

30278R1

SCREW,Cross Pan Hd, M5 x 14

- pan head, cross recess, 5 mm x 14 mm

1шт.

29

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

1шт.

30

824-1405

NUT,M5, Cl 5

1шт.

31

1333006C1

BOOT

- rubber

2шт.

32

1328852C3

HARNESS

ASSEMBLY - cab (Prior to P.I.N. JJE0018177)

1шт.

32

1987425C1

HARNESS

ASSEMBLY - cab (P.I.N. JJE0018177 and After)

1шт.

33

1536961C1

HARNESS

ASSEMBLY - front (Prior to P.I.N. JJE0017402)

1шт.

REF 33 RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

33

1537879C1

HARNESS

ASSEMBLY - front (P.I.N. JJE0017402 and After)

1шт.

34

1536091C2

FLASHER UNIT

UNIT - flasher, warning lights (Pektron)

1шт.

35

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

37

225-14110

NUT,#10-24

1шт.

38

1536894C1

HARNESS

ASSEMBLY - flasher unit to turn switch

1шт.

39

1983245C1

MODULE

- module

1шт.

40

3401412R1

CABLE

- ground, Serial Range: cab-skid

1шт.

41

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

42

825-1408

NUT,M8, Cl 8

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.
