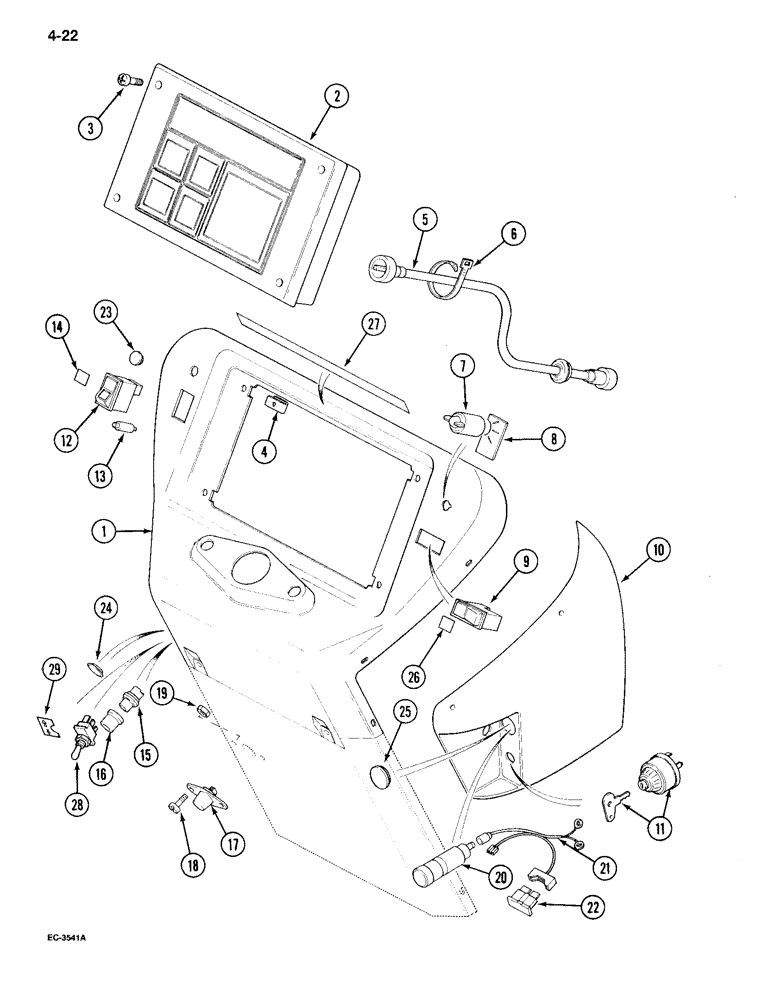

Запчасти Case IH 995 (4-22) - INSTRUMENTS AND SWITCHES, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1536660C2

PANEL, INSTRUMENTS

HOUSING - instrument panel (See Figure 9-016)

1шт.

1

REF

INSTRUCTION

HOUSING - instrument panel (With ammeter and oil pressure gauge) (See Figure 4-26)

1шт.

2

1536455C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments (See Figure 4-24)

1шт.

3

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - tapping. pan head Phillips, N0. 10 NC x 5/8 inch

4шт.

4

1536405C1

SPRING NUT

- spring, J-type

4шт.

5

1500716C1

FLEXIBLE DRIVE SHAFT

CABLE - tacho drive

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

2шт.

7

107200C2

LIGHT SWITCH

SWITCH ASSEMBLY - headlight

1шт.

8

1265116C1

PRODUCT GRAPHIC

DECAL - light switch (English) (See Figure 9-122)

1шт.

8

1265230C1

PRODUCT GRAPHIC

DECAL - light switch (French) (See Figure 9-122)

1шт.

9

1983638C1

FLASHER SWITCH

SWITCH - rocker, turn signal

1шт.

10

3121712R3

HOUSING

- instrument panel side, right (See Figure 9-016)

1шт.

11

529800R91

SWITCH ASSY

SWITCH - ignition, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

12

245909C1

SWITCH ASSY

SWITCH - rocker, MFD, Includes: Ref. 13

1шт.

13

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

14

82525C1

DECAL

DECAL - symbol, MFD switch

1шт.

15

705266R91

HORN

SWITCH - horn

1шт.

16

1288026C1

COVER

- horn switch

1шт.

17

397940R93

SWITCH

- push button, ether start

1шт.

18

470-1106

SCREW,Slotted Pan Hd, #10-24 x 3/8"

- pan head slotted, No. 10 NF x 3/8 inch

2шт.

19

225-14110

NUT,#10-24

2шт.

81465C91

KIT

- cigar lighter, Includes: Ref. 20 - 22

1шт.

20

3121407R92

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar (If fitted)

1шт.

21

92090C1

HARNESS

CABLE - cigar lighter

1шт.

22

A149800

FUSE,10 Amp

- 10 ampere (Red)

1шт.

23

3112888R1

PLUG

- blanking, 1/2 inch hole

1шт.

24

353-406

PLUG,Dome, .625" hole, Nylon

- blanking, 5/8 inch hole

1шт.

24

538239R1

PLUG

- blanking, 3/4 inch hole

1шт.

25

538240R1

PLUG

- blanking (If cigar lighter is not fitted)

1шт.

26

1983639C1

SYMBOL

DECAL - turn signal (Green)

1шт.

27

321-6770

DECAL

- warning, IPTO overspeed (English) (See Figure 9-120)

1шт.

27

321-6781

DECAL

- warning, IPTO overspeed (French) (See Figure 9-120)

1шт.

28

3125854R1

SWITCH

- headlight dip

1шт.

29

1273644C1

DECAL

DECAL - headlight dip

1шт.
