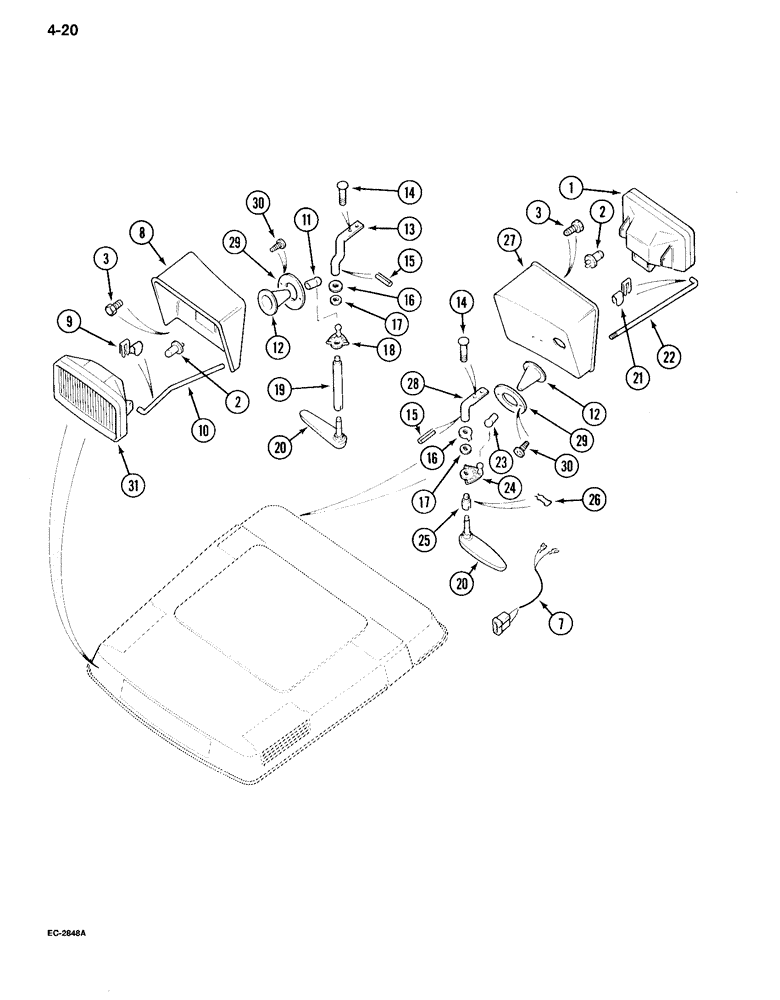

Запчасти Case IH 995 (4-20) - WORK LIGHTS, INTERNALLY ADJUSTABLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1328615C1

LAMP, WORK

LIGHT ASSEMBLY - work rear right (Raydot), Includes: Ref. 2

1шт.

1

1535658C1

LAMP, WORK

LIGHT ASSEMBLY - work rear right (Hella), Includes: Ref. 2

1шт.

2

3217310R1

BULB,H3, 12V, 55W

LAMP - halogen bulb 12v/55w (Order 1094362R1)

1шт.

3

3234404R1

SCREW

- hex, hi-lo 6.3 x 30 mm

1шт.

7

3399341R2

CABLE

- work light fly lead

1шт.

8

3233559R3

BASE

- light front light

1шт.

9

3234397R1

CLIP

- left

1шт.

10

1987187C1

STEM

ROD - right front light

1шт.

11

3233279R1

BALL JOINT

JOINT - ball

1шт.

12

3234153R1

GROMMET

INSULATOR - bellows

2шт.

13

3234401R1

SUPPORT

- right front light

1шт.

14

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head tapped 1/4-14 x 1/2 inch

1шт.

15

30786R1

LOCK PIN,M2 x 14, Slotted

PIN - slotted spring, 2 x 14 mm

2шт.

16

3234405R1

WASHER, LOCK

SHIM - handle

2шт.

17

3233281R1

WASHER,M14 ID x 20 OD x 1 Thk

WASHER - flat

2шт.

18

3234383R1

SEGMENT

- weldment

1шт.

19

3234403R1

PIN

- worklight front right

1шт.

20

3234375R91

HANDLE

- front and rear worklight

2шт.

21

3234398R1

CLIP

- right

1шт.

22

3234387R91

ROD ASSY.

ROD ASSEMBLY - rear right Worklight, Includes: Ref. 23

1шт.

23

3233279R1

BALL JOINT

JOINT - ball

1шт.

24

3234389R1

BRACKET

SEGMENT - weldment

1шт.

25

3234406R1

PIN

- rear right worklight

1шт.

26

3234400R1

CLIP

- spring

1шт.

27

3233557R3

BASE

- light rear right

1шт.

28

3234402R1

SUPPORT

- rear light right

1шт.

29

1990575C1

PACKING RING

RETAINER - insulator bellows

2шт.

30

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo 4.8 x 16 mm

4шт.

31

1987375C2

LAMP, WORK

LIGHT ASSEMBLY - work front right (ABL), includes lamp, bezel, and lens

1шт.

31

LIGHT ASSEMBLY - work front right (Hella), includes lamp, bezel, and lens

1шт.

1312210C1

BULB

LAMP - halogen bulb 12V/55W (Hella) (Not shown)

1шт.

1987493C1

BEZEL

- (Hella) (Not shown)

1шт.

1987494C1

LAMP BASE

LENS - with reflector (Not shown)

1шт.
