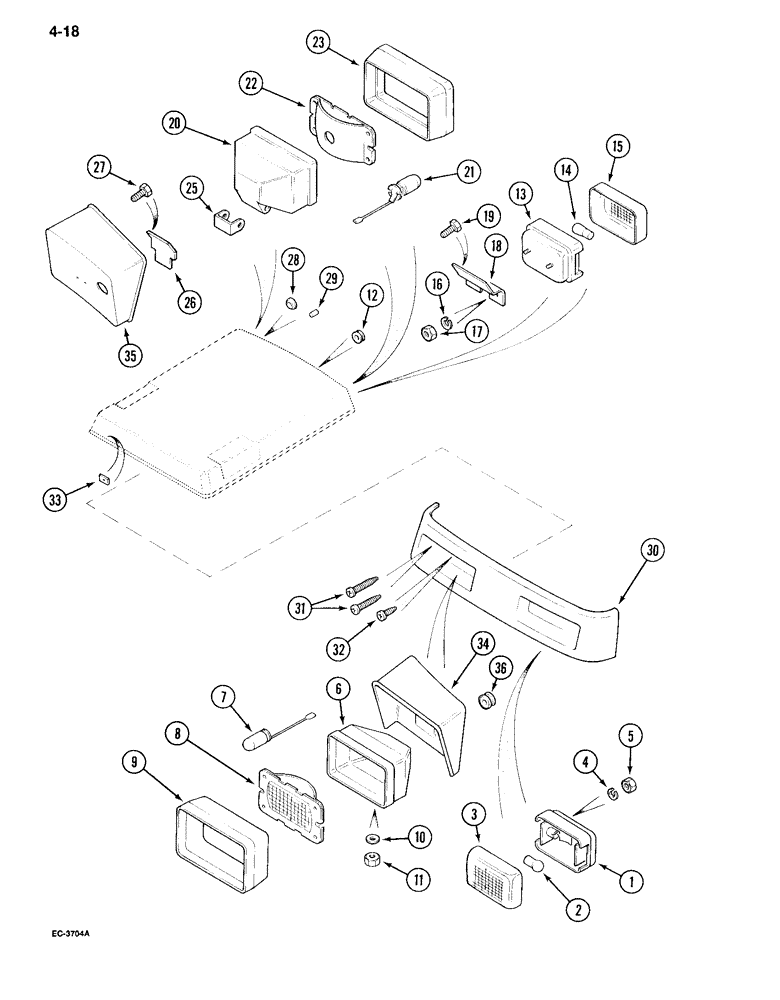

Запчасти Case IH 995 (4-18) - CAB LIGHTS, WORK AND WARNING (04) - ELECTRICAL SYSTEMS

1

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flasher warning, front, Includes: Ref. 2 and 3

2шт.

2

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156

1шт.

3

91941C1

LENS

- amber

2шт.

4

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

5

824-1405

NUT,M5, Cl 5

4шт.

6

1987328C2

LAMP, WORK

LIGHT ASSEMBLY - flood, front (ABL), Includes: Ref. 7 - 9

2шт.

6

1987491C1

LAMP, WORK

LIGHT ASSEMBLY - flood, front (Hella), Includes: Ref. 7 - 9

2шт.

7

1312210C1

BULB

- lamp, 12.8V/H3-55W, halogen (ABL)

1шт.

7

1312210C1

BULB

- lamp, 12.8V/H3-55W, halogen (Hella)

1шт.

8

1964807C1

LAMP BASE

LENS - reflector, lamp (ABL)

2шт.

8

1987494C1

LAMP BASE

LENS - reflector, lamp (Hella)

2шт.

9

1964806C1

BEZEL

HOUSING - front, lamp (ABL)

2шт.

9

1987493C1

BEZEL

HOUSING - front, lamp (Hella)

2шт.

10

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

11

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

2шт.

12

96901C1

GROMMET

- wiring, lamp

4шт.

13

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flaher warning, rear, Includes: Ref. 14 and 15

2шт.

14

9417866

BULB,C6, #1156, 12.8V

- lamp, No. 1156 (Order A41264)

1шт.

15

91941C1

LENS

- amber

2шт.

16

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

4шт.

17

824-1405

NUT,M5, Cl 5

4шт.

18

1344391C1

SUPPORT

BRACKET - flasher light

2шт.

19

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange lock, 6 mm - 1.00 x 20 mm

2шт.

20

1983695C2

HEADLIGHT

LIGHT ASSEMBLY - flood, rear, Includes: Ref. 21 - 26

2шт.

21

1312210C1

BULB

- lamp, 12.8V/55W, halogen

1шт.

22

1964807C1

LAMP BASE

LENS - reflector, lamp

2шт.

23

1964806C1

BEZEL

HOUSING - rear, lamp

2шт.

25

NSS

NOT SOLD SEPARAT

YOKE - worklight bracket

2шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - worklight, mounting

2шт.

27

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange lock, 6 mm - 1.00 x 20 mm

2шт.

28

1987012C1

PLUG

- blanking

1шт.

29

3234212R2

PLUG

- blanking

1шт.

30

1344233C1

PANEL

- cap, roof front

1шт.

31

1344371C2

SELF-TAP SCREW,Cross Wshr Hd, M4.8 x 80mm, Coated

SCREW - tapping, 4.8 x 80 mm

4шт.

32

1535310C1

SELF-TAP SCREW,Cross Wshr Hd, M4.8 x 70mm, Coated

SCREW - tapping, 4.8 x 70 mm

2шт.

33

187510

SPRING NUT

NUT - flat, spring

6шт.

34

3233558R3

BASE

- light front left

1шт.

34

3233559R3

BASE

- light front right

1шт.

35

3233558R3

BASE

- light rear left

1шт.

35

3233557R3

BASE

- light rear right

1шт.

36

96901C1

GROMMET

2шт.
