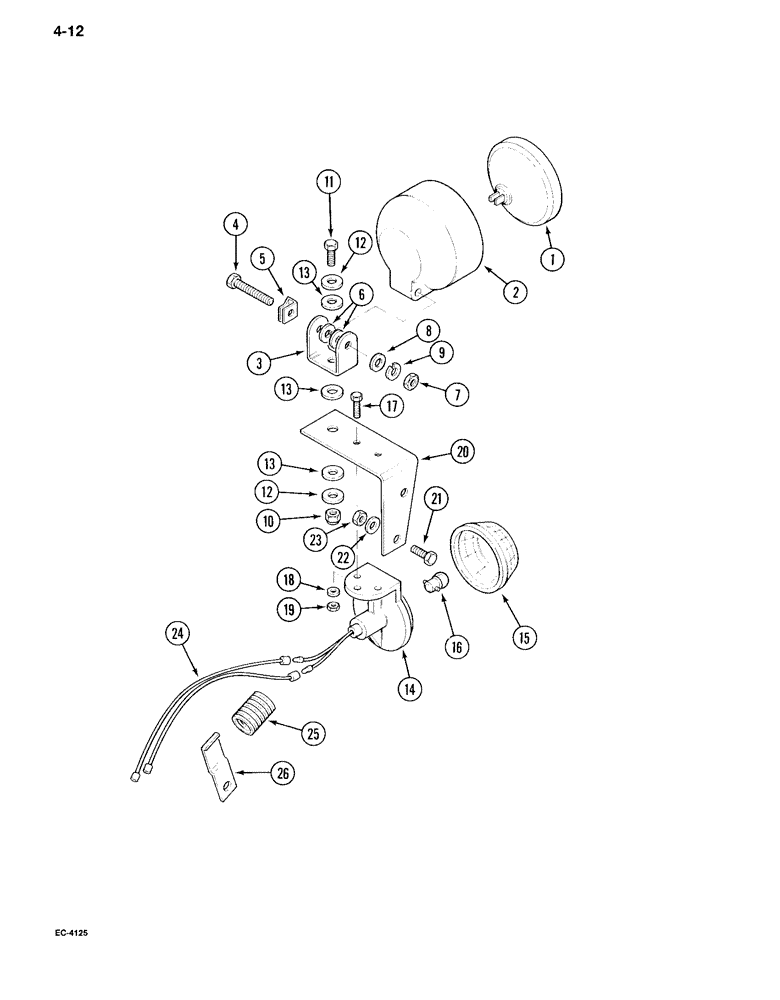

Запчасти Case IH 995 (4-12) - WORK AND REAR LIGHT, NON CAB (04) - ELECTRICAL SYSTEMS

1537711C1

LAMP, WORK

LAMP ASSEMBLY - work light, Includes: Ref. 1 - 13

1шт.

1

E3NN15330AA

BULB

LAMP - sealed beam

1шт.

2

3125880R1

HOUSING

BODY - work light

1шт.

3

3108515R1

SUPPORT

BRACKET - work light

1шт.

4

181323

BOLT,Hex, 1/4" - 28 x 2", Gr 5

1шт.

5

3072945R1

WASHER

- retaining

1шт.

6

3112690R1

WASHER

- flat

2шт.

7

425-114

NUT,1/4"-28, G5

1шт.

8

195-517

WASHER,1/4"

- flat 6 mm

1шт.

9

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Work light mounting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

13

3112401R1

WASHER

- nylon

3шт.

14

1537587C1

LAMP, TAIL

LIGHT ASSEMBLY - rear, Includes: Ref. 15 and 16

1шт.

15

1537600C1

LENS

- red

1шт.

16

894879H1

BULB

- rear light (Order 1094369R1)

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Rear light mounting Hex, M6 x 20, 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

825-1406

NUT,M6, Cl 8

2шт.

20

1537425C1

SUPPORT

BRACKET - work and rear light

1шт.

21

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

1536628C1

ELECTRICAL WIRE

LEAD - fender (For orchard and extended fenders)

1шт.

25

1537669C1

LOOM,16.5 mm ID, 21 mm OD, 370 mm Length

CONDUIT

1шт.

26

1500151C1

CLAMP

CLIP - harness retaining

1шт.
