Запчасти Case IH 995 (4-04) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

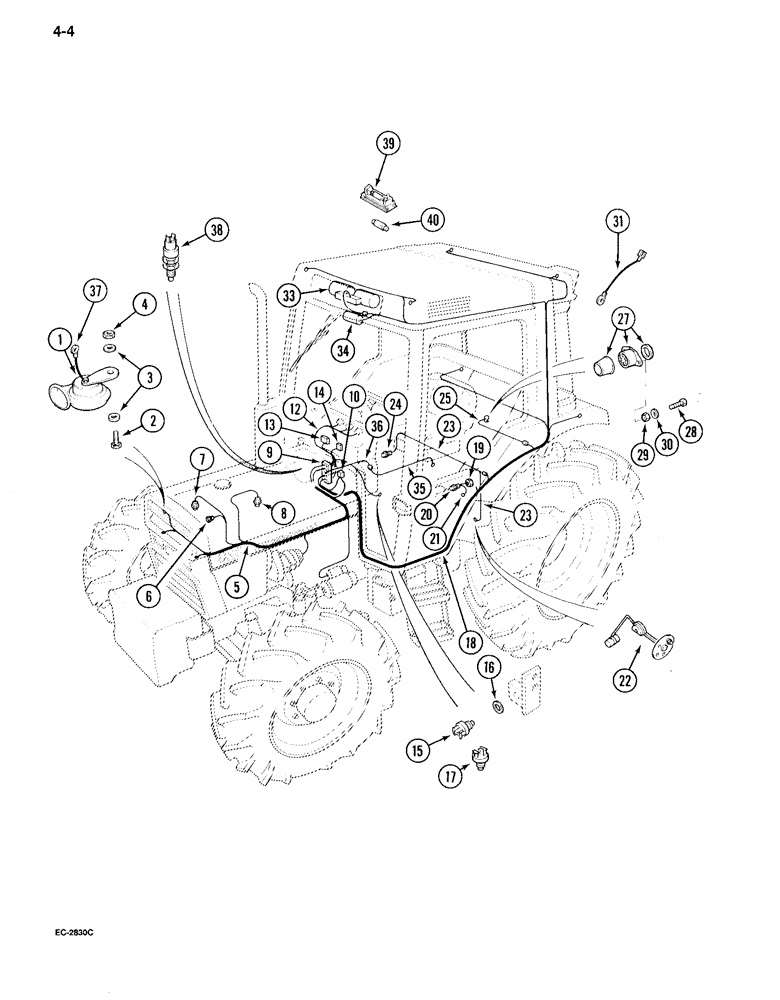

Схема запчастей Case IH 995 - (4-04) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
37
17
24
39
4
23
10
21
19
16
27
7
14
3
23
36
34
33
5
29
8
25
6
35
20
18
12
40
13
1
15
38
31
28
2
22
9
30

Артикул

Название

Примечание

Количество

1

3057542R91

HORN

- warning (See Figure 9-010)

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

4

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

5

1536961C1

HARNESS

ASSEMBLY - main cable (Prior to P.I.N. JJE0017402)

1шт.

REF 5 RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

5

1537879C1

HARNESS

ASSEMBLY - main cable (P.I.N. JJE0017402 and After)

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (See Figure 2-14)

1шт.

7

A187687

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield

1шт.

8

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - engine oil pressure

1шт.

9

3399527R2

CONNECTOR, ELEC

CONNECTOR - bulkhead (See Figure 4-32)

1шт.

10

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp (See Figure 4-32)

1шт.

12

1536959C1

HARNESS

ASSEMBLY - instrument panel (Prior to P.I.N. JJE0017402)

1шт.

12

1537986C1

HARNESS

ASSEMBLY - instrument panel (P.I.N. JJE0017402 and After)

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - fuse (See Figure 4-32)

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - mounting, relay (See Figure 4-32)

1шт.

15

3114409R92

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting

1шт.

16

95-81112

WASHER,19/32" x 15/16" x .024"

- flat, 1/2 inch

1шт.

17

1332724C1

SWITCH

- plunger (2 speed power shift)

1шт.

18

1328852C3

HARNESS

ASSEMBLY - cab (Prior to P.I.N. JJE0018177)

1шт.

18

1987425C1

HARNESS

ASSEMBLY - cab (P.I.N. JJE0018177 and After)

1шт.

19

1332725C1

NUT

M18

1шт.

20

1332724C1

SWITCH

- plunger, handbrake warning

1шт.

21

1536293C1

CABLE

- flying lead, park brake ground

1шт.

22

1500494C91

FUEL GAUGE

TRANSMITTER - sender, fuel level (See Figure 3-20)

1шт.

23

1500495C1

HARNESS

- diff lock/fuel tank sender

1шт.

24

3147137R1

SWITCH

SWITCH - differential lock

1шт.

25

91919C4

HARNESS

- 7 pin socket

1шт.

27

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - , with boot 7 Pin

1шт.

28

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 25 mm

2шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

30

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

31

1537714C1

CABLE

- ground 7 pin socket

1шт.

33

1280294C92

HEATER

BLOWER - air (See Figure 9-070)

1шт.

34

3401302R93

WIPER MOTOR

MOTOR - windshield wiper (See Figure 9-080)

1шт.

35

82634C1

CABLE

- MFD solenoid (See Figure 4-36)

1шт.

36

92118C1

CABLE

- MFD solenoid to bulkhead (See Figure 4-36)

1шт.

37

3117533R1

CABLE

-, Serial Range: horn-ground

1шт.

38

3147137R1

SWITCH

SWITCH - brake light

1шт.

39

K303720

INTERIOR LIGHT

LIGHT - courtesy (Order 1983391C1)

1шт.

40

710196R1

BULB,C5W, 12V, 5W

LAMP - festoon, 12V/5W

1шт.

Выбрано товаров: 41
