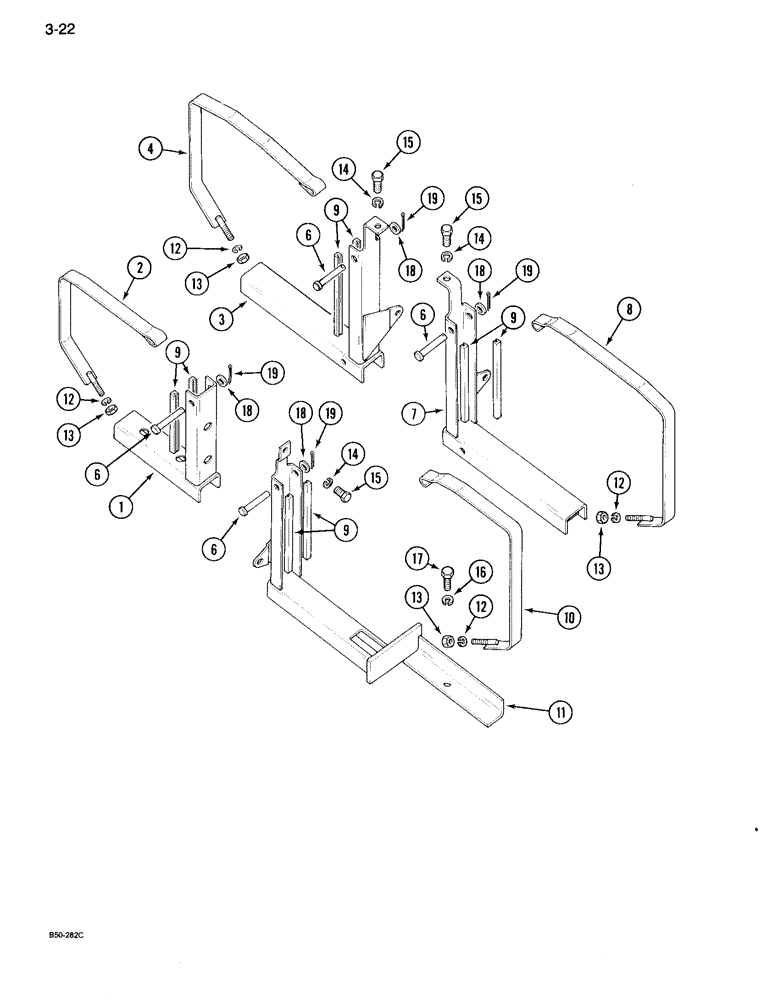

Запчасти Case IH 995 (3-22) - FUEL TANK MOUNTINGS, TRACTOR WITH CAB (03) - FUEL SYSTEM

1

1500265C2

SUPPORT ASSY.

SUPPORT - fuel tank, front right

1шт.

2

1500275C1

STRAP

- support

1шт.

3

1500268C2

SUPPORT ASSY.

SUPPORT - fuel tank, rear right

1шт.

4

1500281C1

STRAP

- support

1шт.

6

1500270C1

HEADED PIN

PIN - headed

4шт.

7

1500262C2

SUPPORT ASSY.

SUPPORT - fuel tank, rear left

1шт.

8

1500278C1

STRAP

- support

1шт.

9

1502167C1

CHANNEL

STRIP - edging

8шт.

10

1500271C1

STRAP

- support

1шт.

11

82941C1

CHANNEL

SUPPORT - fuel tank and battery box

1шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

15

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

3шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8 NC x 1/2 inch

1шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

4шт.

19

732-3220

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

4шт.
