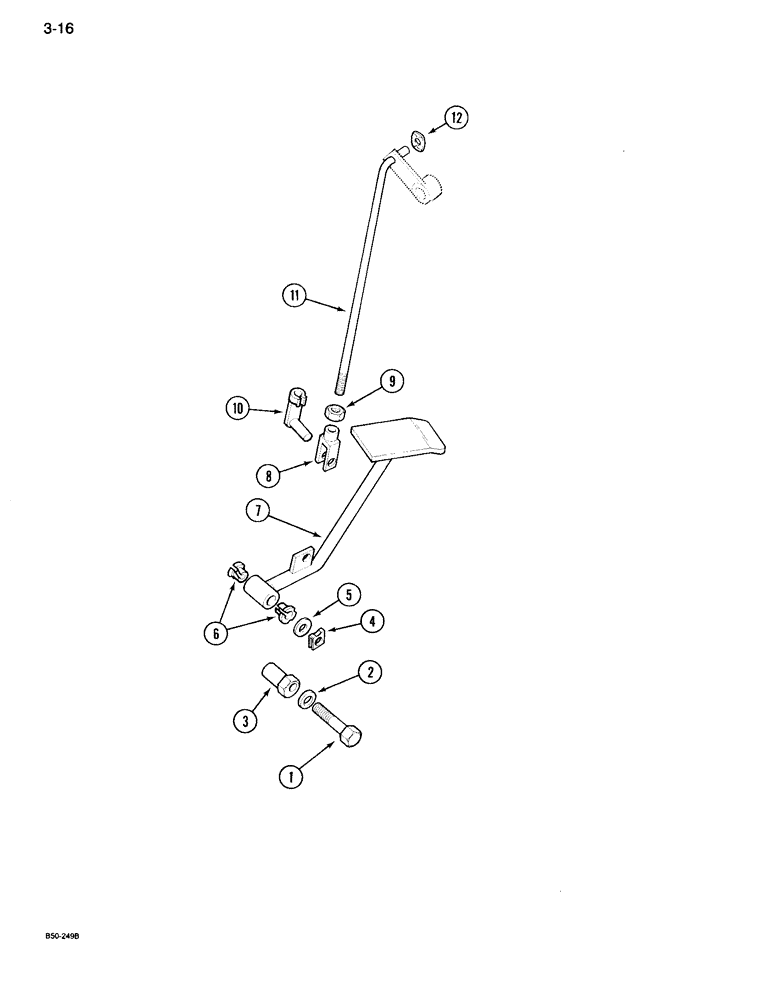

Запчасти Case IH 995 (3-16) - FOOT ACCELERATOR, TRACTOR WITH CAB (03) - FUEL SYSTEM

1

813-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

2

934055R1

WASHER,M6.4

- lock, 6 mm

1шт.

3

3234918R1

LARGE PIN

STOP - adjustable

1шт.

4

3234935R1

CLAMP

SPRING - clamp

1шт.

5

934065R1

WASHER,M10.5

- flat, 10 mm

1шт.

6

3234952R1

BUSHING

- foot pedal

2шт.

7

3234937R2

PEDAL ASSY.

PEDAL - foot accelerator

1шт.

8

3234763R1

ADJUSTABLE CLEVIS,M6

CLEVIS - 6 mm x 24 mm

1шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

10

3234936R1

CLEVIS PIN

CLIP - clevis

1шт.

11

3234927R1

ROD

- operating, foot pedal

1шт.

12

1532536C1

CLIP,ELECTRICAL

CLIP - retaining

1шт.
