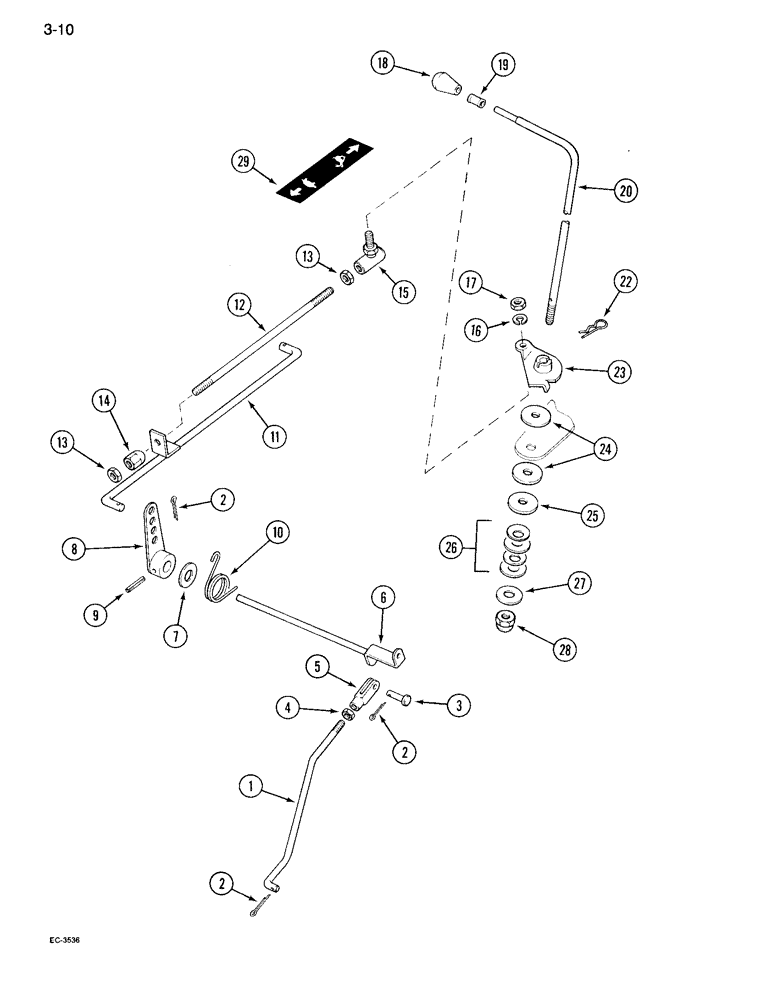

Запчасти Case IH 995 (3-10) - GOVERNOR CONTROL, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1332945C1
ROD
- front, governor control
1шт.
2
32-48
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
3шт.
3
103494
ADJUSTABLE CLEVIS,1/4" x .770"
PIN - clevis, 1/4 x 0.770 inch
1шт.
4
25-154
JAM NUT,Jam, 1/4"-28, G5
Hex Jam, 1/4"-28, G5
1шт.
5
213-124
ADJUSTABLE CLEVIS,1/4"-28
CLEVIS - adjustable, 1/4 NF x 1-11/16 inch
1шт.
6
528325R2
ARM
ASSEMBLY - idler, governor control
1шт.
7
95-51041
WASHER,3/8" x 7/8" x .083"
- flat, 13/32 x 3/4 x 3/64 inch
1шт.
7
95-81080
WASHER,13/32" x 3/4" x .120"
- flat, 13/32 x 3/4 x 3/32 inch
1шт.
8
539572R3
LEVER ASSY.
LEVER ASSEMBLY - idler arm
1шт.
9
19313R1
PIN,5/32" x 7/8", Coiled
1шт.
10
539012R2
SPRING
- torsion
1шт.
11
528767R1
ROD ASSY.
ROD - pull, bellcrank
1шт.
12
528775R3
ROD
- pick-up, foot accelerator
1шт.
13
425-154
JAM NUT,Jam, 1/4"-28, G5
- hex jam, 1/4 inch NF
2шт.
14
528776R1
NUT
- swivel, foot accelerator pick-up rod
1шт.
15
191474
BALL JOINT
JOINT - ball, 1/4 inch NF, type C (Order 276835R91) (For optional ball-joints see Figure 3-14)
1шт.
16
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
17
425-114
NUT,1/4"-28, G5
1шт.
1536683C1
HANDLE GRIP
KNOB ASSEMBLY - control handle, Includes: Ref. 18 and 19
1шт.
18
NSS
NOT SOLD SEPARAT
KNOB - control handle
1шт.
19
1536684C1
SPACER
RING - star, tolerence
1шт.
20
3121391R5
ROD
- governor control handle
1шт.
22
720631R1
LINCH PIN
PIN - cotter, quick attachable
1шт.
23
528291R3
ARM ASSY.
ARM ASSEMBLY - governor control rod
1шт.
24
3123275R1
FRICTION WASHER
DISC - friction, governor control
2шт.
25
1332789C1
PLATE
- friction, backing
1шт.
26
1500778C1
DISC
- spring, 24 x 13 x 1 mm
4шт.
27
495-81022
WASHER,17/32" x 1 1/8" x .060"
- flat, 17/32 x 1-1/4 x 3/64 inch
1шт.
28
894980H1
LOCK NUT
- hex, self locking, 1/2 inch NF
1шт.
29
533592R1
PRODUCT GRAPHIC
DECAL - governor control
1шт.
Выбрано товаров: 30
