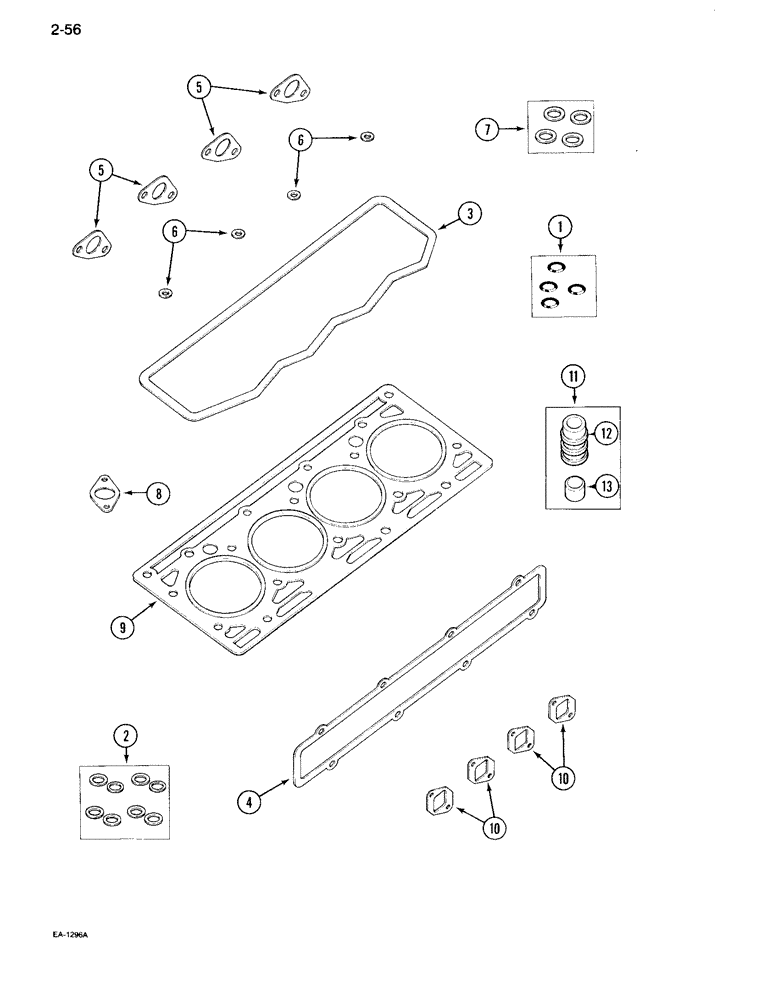

Запчасти Case IH 995 (2-56) - ENGINE SERVICE KIT, CYLINDER HEAD GASKETS (02) - ENGINE

1967014C1

CYLINDER HEAD GASKET

KIT - service, cylinder head gaskets, Includes: Ref. 1 - 13

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

4шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

GASKET - stop screw

8шт.

3

3138642R1

GASKET

- valve housing cover

1шт.

4

3055398R2

MANIFOLD GASKET

- intake manifold

1шт.

5

3055306R2

GASKET

- manifold, water collecting

4шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve cover

4шт.

7

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, injection nozzle

4шт.

8

3132143R2

GASKET,1mm Thk

- water outlet flange

1шт.

9

3228362R2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

10

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

11

3228677R91

SEAL

KIT - service, valve stem seal, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve stem

8шт.

13

3132420R1

SLEEVE

- valve stem installation

1шт.
