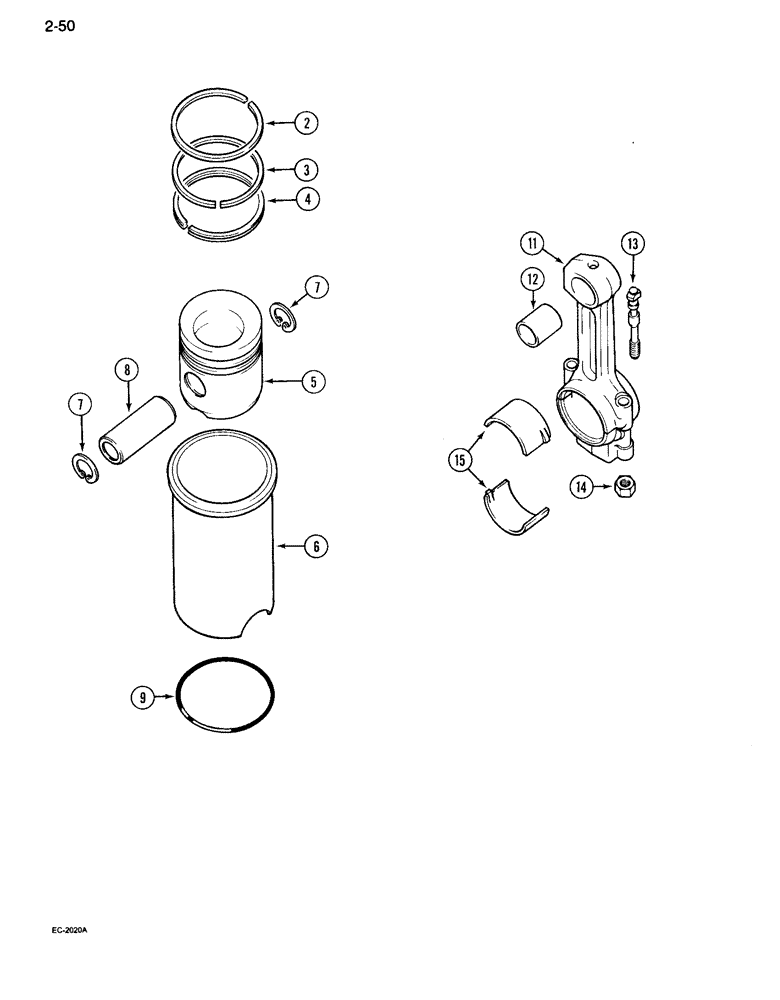

Запчасти Case IH 995 (2-50) - PISTONS AND SLEEVES (02) - ENGINE

3218915R95

KIT

PISTON - with sleeve, Includes: Ref. 2 - 8

4шт.

3218920R91

PISTON RING SET

KIT - piston rings, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, first

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, second

1шт.

4

NSS

NOT SOLD SEPARAT

RING - oil control

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

6

3144682R3

SLEEVE CYLINDER

SLEEVE - cylinder

1шт.

7

3228422R1

O-RING

- retaining

2шт.

8

3132039R2

PISTON PIN

PIN - piston

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

- packing, cylinder sleeve

4шт.

1967039C1

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 11 - 14

4шт.

11

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

12

3218317R1

BUSHING,37.44mm ID x 41.32mm OD x 15mm L

- piston pin, connecting rod

1шт.

ref #12 (P/N 3218317R1) - Dlr. called and said each rod requires 2, not one.

1шт.

13

3055033R11

BOLT

- Connecting rod, with nut, Includes Ref 14

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - connecting rod bolt

2шт.

15

3132101R91

BEARING SET

BEARING - connecting rod, standard size

4шт.

15

3136203R11

BEARING ASSY

BEARING - connecting rod, undersize, 0.25 mm

4шт.
