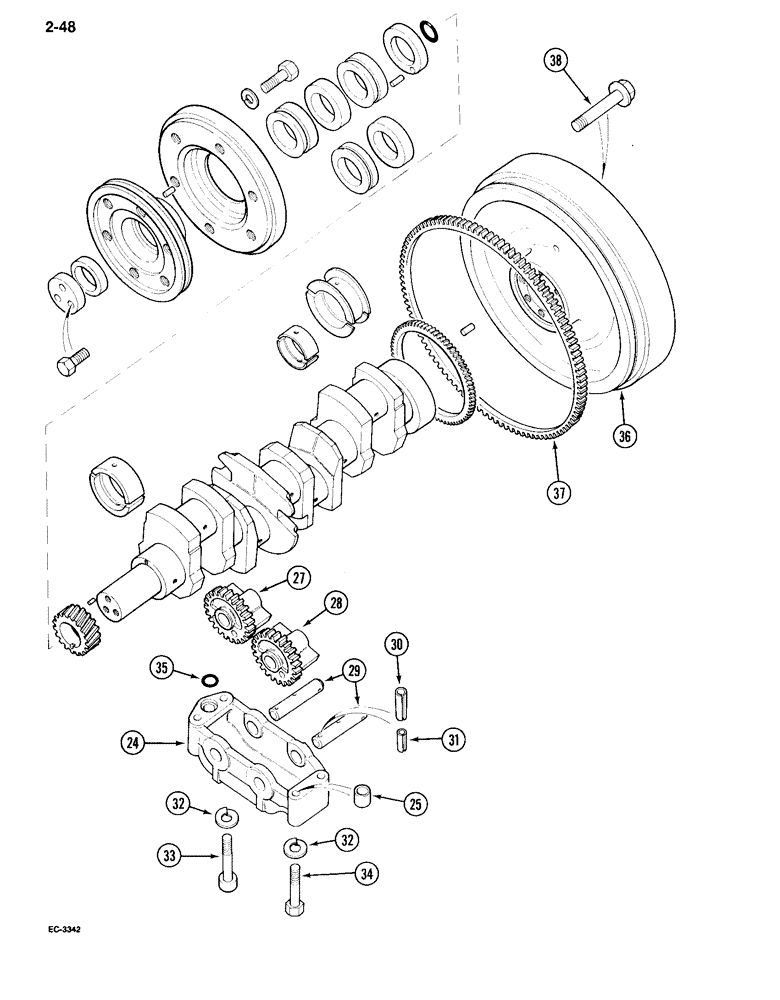

Запчасти Case IH 995 (2-48) - CRANKSHAFT BALANCER (02) - ENGINE

3144701R93

BALANCER

ASSEMBLY - crankshaft, Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - balancer, Includes: Ref. 25

1шт.

25

3055174R1

BUSHING

- dowel

2шт.

3228375R92

BALANCER

WEIGHT ASSEMBLY - balancer, matched set, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

WEIGHT - idler

1шт.

28

NSS

NOT SOLD SEPARAT

WEIGHT - drive

1шт.

29

3132878R11

PIN,23mm OD x 93mm L

SHAFT - balancer weight

2шт.

30

932229R1

SPLIT PIN/SAFETY PIN

PIN - slotted spring, 4 x 20 mm

2шт.

31

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

32

3218543R1

LOCK WASHER

- lock, 7/16 inch

4шт.

33

3144722R1

HEX SOC SCREW

- cap, hex socket, 7/16 NC x 5 inch

1шт.

34

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

1шт.

34

13-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

1шт.

34

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

35

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

Part of crankcase gaskets service kit

1шт.

36

1808413C92

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear, flywheel, Includes: Ref. 37

1шт.

37

3218637R1

CROWN WHEEL

GEAR - ring, flywheel

1шт.

38

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting

7шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 35 (See Figure 2-58), flywheel

1шт.
