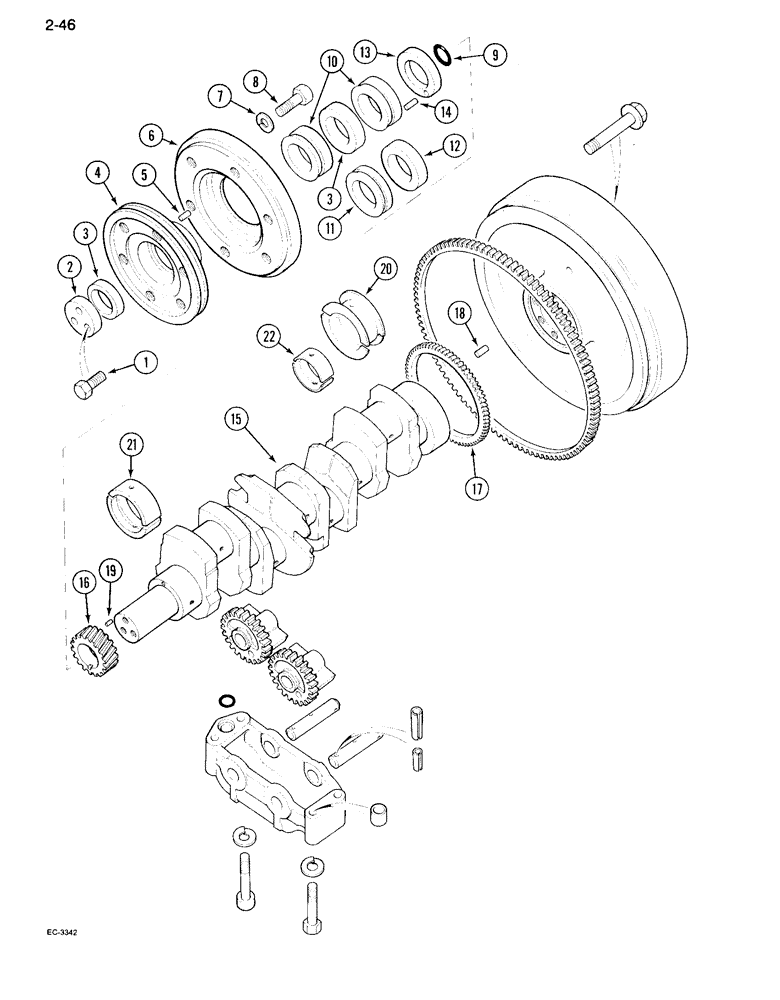

Запчасти Case IH 995 (2-46) - CRANKSHAFT (02) - ENGINE

1

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, grade 8

3шт.

2

3055154R1

WASHER

- pressure

1шт.

3

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- thrust

2шт.

4

1967083C1

PULLEY

ASSEMBLY - crankshaft, Includes: Ref. 5

1шт.

5

932338R1

DOWEL,M4 x 14

PIN - dowel

1шт.

6

3136283R1

DAMPER

- vibration (Order 1329061C1)

1шт.

7

933806R1

WASHER

- lock

6шт.

8

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

9

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm

1шт.

Part of crankcase gaskets service kit

1шт.

10

3218394R1

BUSHING

ELEMENT - locking

2шт.

11

3055152R91

RING

ELEMENT - spring tightener, Serial Range: (Optional-3218394R1)

2шт.

12

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- thrust (Used with 3055152R91)

2шт.

3228258R91

O-RING

RING ASSEMBLY - distance (Order 3228133R93), Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - distance

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

3228376R91

BEARING ASSY

ASSEMBLY - standard, Includes: Ref. 15 - 22

1шт.

3228377R91

BEARING ASSY

ASSEMBLY - undersize, 0.25 mm, Includes: Ref. 15 - 22

1шт.

3228378R91

BEARING ASSY

ASSEMBLY - undersize, 0.50 mm, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

CRANKSHAFT, Includes: Ref. 16 - 19

1шт.

16

3055028R1

PINION

GEAR - pinion, crankshaft, 33 teeth

1шт.

17

3144700R1

GEAR

- balancer drive

1шт.

18

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

1шт.

19

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

20

3055129R21

CRANKSHAFT BEARING

BEARING - standard size

1шт.

20

3056820R11

BEARING ASSY

BEARING - undersize, 0.25 mm

1шт.

20

3056875R11

BEARING ASSY

BEARING - undersize, 0.50 mm

1шт.

21

3055130R21

CRANKSHAFT BEARING

BEARING - standard size

4шт.

21

3056832R21

BEARING ASSY

BEARING - undersize, 0.25 mm

4шт.

21

3056877R21

BEARING ASSY

BEARING - undersize, 0.50 mm

4шт.

22

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.

22

3136203R11

BEARING ASSY

BEARING - connecting rod, undersize, 0.25 mm

4шт.

22

3136329R11

BEARING ASSY

BEARING - connecting rod, undersize, 0.50 mm

4шт.

3055351R91 is used on non-turbo engines. 3132101R91 is used on turbo engines.

1шт.

REF

INSTRUCTION

Kit - service crankcase gaskets, Includes: Ref. 9 (See Figure 2-58)

1шт.
