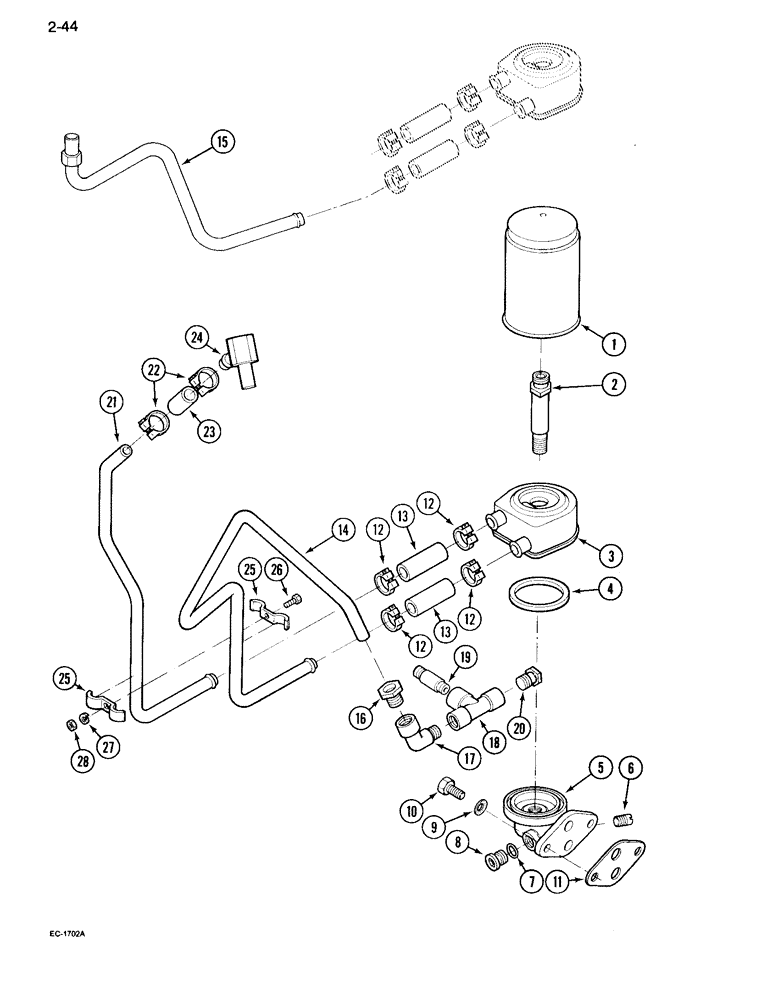

Запчасти Case IH 995 (2-44) - OIL FILTER AND COOLER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1329020C2
ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.10] order 1329020C2MP
FILTER - oil
1шт.
1
398080R2
ENGINE OIL FILTER
FILTER - oil, Serial Range: (Optional-1329020C2)
1шт.
2
1329060C1
CONNECTOR, ELEC
CONNECTOR - threaded
1шт.
3
1329021C91
COOLER, OIL
COOLER - oil, Includes: Ref. 4
1шт.
4
1329059C1
SEALING RING,76.9mm OD x 4.9mm Width
RING - sealing
1шт.
Ref #4 - 1329059C1 is manufactured by "Behr" and for the cooler by "Behr. Manufacturer was changed to "Modine" Sealing Ring changed to 139726A1.
1шт.
5
3132209R2
PEDESTAL
BASE - oil filter
1шт.
6
444687
PLUG,Hex Soc, 1/8"-27
1шт.
7
933155R1
SEALING RING,M16 x 20 x 1.5
1шт.
8
3051784R1
PLUG
- hex socket, 16 mm
1шт.
9
3144513R1
SPRING WASHER
WASHER - disc spring type
2шт.
10
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
11
3055237R2
GASKET
- oil filter socket
1шт.
12
3143364R1
CLAMP,19mm - 23mm
- hose
4шт.
13
3136370R1
HOSE,16.00 mm ID x 65.00 mm
- Connecting 16.00 mm ID x 65.00 mm
2шт.
14
1329007C1
PIPE
- oil cooler to water pump (Without coolant filter)
1шт.
15
1329004C1
PIPE
- tee union to oil cooler (With coolant filter) (See Figure 2-12)
1шт.
16
222-507
TUBE NUT,7/8"-18
NUT - union, 5/8 inch OD tube
1шт.
17
56445D
ELBOW,90 Degree x 1/2" NPT x 7/8"-18
- 90 degree, 5/8 inch OD tube
1шт.
18
144085
TEE,1/2" NPT, Fem
- 1/2 inch pipe
1шт.
19
191032
PIPE,Nipple, 1/2" NPT x 1 1/2", Brass
ADAPTER - pipe long, 1/2 NPT x 1-1/2 inch
1шт.
20
444630
PLUG,Hex Hd, 1/2"-14
- hex, pipe
1шт.
21
1329006C1
PIPE,15mm Dia, 437, 136 mm L
TUBE - oil cooler to water pump carrier
1шт.
22
3143364R1
CLAMP,19mm - 23mm
- hose
2шт.
23
3228045R1
HOSE
- connecting
1шт.
24
3228044R1
ELBOW
- 90 degree
1шт.
25
3218744R1
CLAMP
- tube
2шт.
27
92-11025
LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk
WASHER, LOCK, 1/4"
1шт.
28
25-104
NUT,1/4"-20, G5
1шт.
26
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
Выбрано товаров: 30
