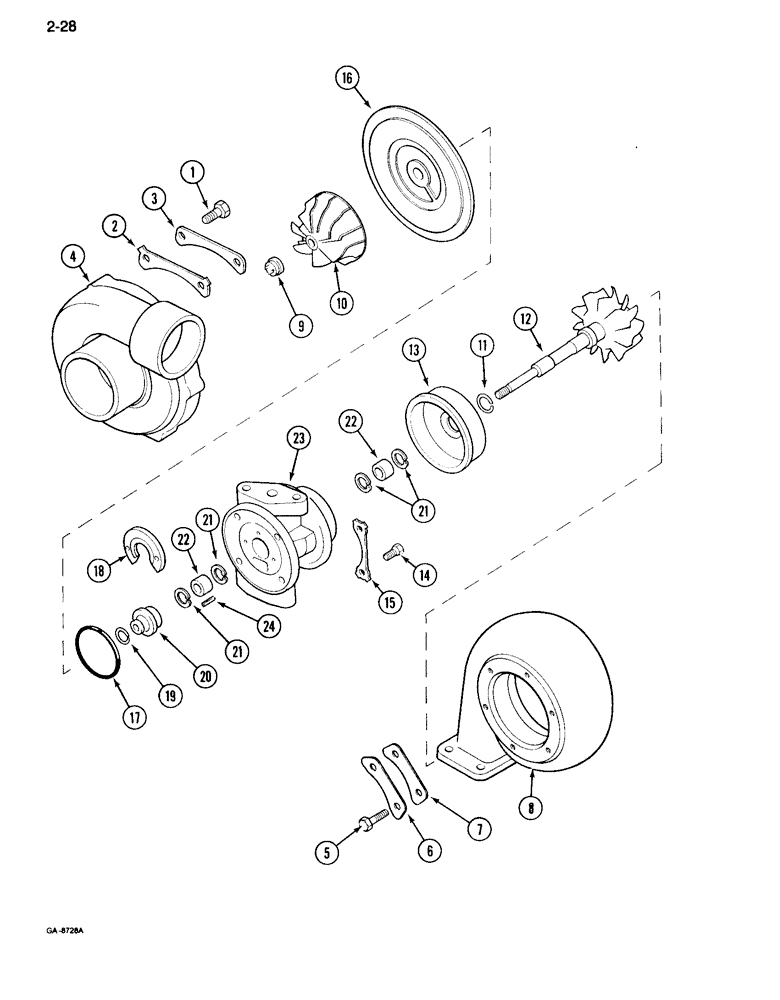

Запчасти Case IH 995 (2-28) - TURBOCHARGER (02) - ENGINE

1967070C1

TURBOCHARGER

ASSEMBLY - engine

1шт.

1

684246C1

BOLT

- housing lock plate

6шт.

2

3218825R1

PLATE

- locking

3шт.

3

3218826R1

CLAMP

- locking plate

3шт.

4

3218954R1

HOUSING

- compressor

1шт.

5

684246C1

BOLT

- housing lock plate

6шт.

6

615739C1

PLATE, LOCKING

PLATE - housing lock

3шт.

7

684245C1

CLAMP

- housing plate

3шт.

8

3078857R1

HOUSING

- turbine

1шт.

3218956R1

HOUSING

ASSEMBLY - center, complete with rotating assembly, Includes: Ref. 9 - 24

1шт.

9

615741C2

NUT

- impeller lock

1шт.

10

3218957R1

TORQ CONV IMPELLER

IMPELLER - turbine

1шт.

11

684359C1

BUSHING

RING - sealing (Order A44829)

1шт.

12

3078863R1

TURBINE

SHAFT ASSEMBLY - turbine wheel

1шт.

13

A45091

GUARD

SHROUD - turbine wheel

1шт.

14

25480R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 8

- lock plate

4шт.

15

625675C1

PLATE, LOCKING

PLATE - backplate lock (Order 1809617C1)

2шт.

16

3218833R91

PLATE

- rear

1шт.

17

343847R1

SEALING RING

RING - sealing (Order A44833)

1шт.

18

627773C1

THRUST BEARING

- thrust (Order A44832)

1шт.

19

615746C1

RING

- piston (Order A44828)

1шт.

20

615745C2

COLLAR

- thrust

1шт.

21

627774C1

RING

- retaining, bearing (Order A44827)

4шт.

22

680444C1

BUSHING

BEARING - turbine shaft (Order 687965C1)

2шт.

23

3218834R91

HOUSING

ASSEMBLY - center, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.
