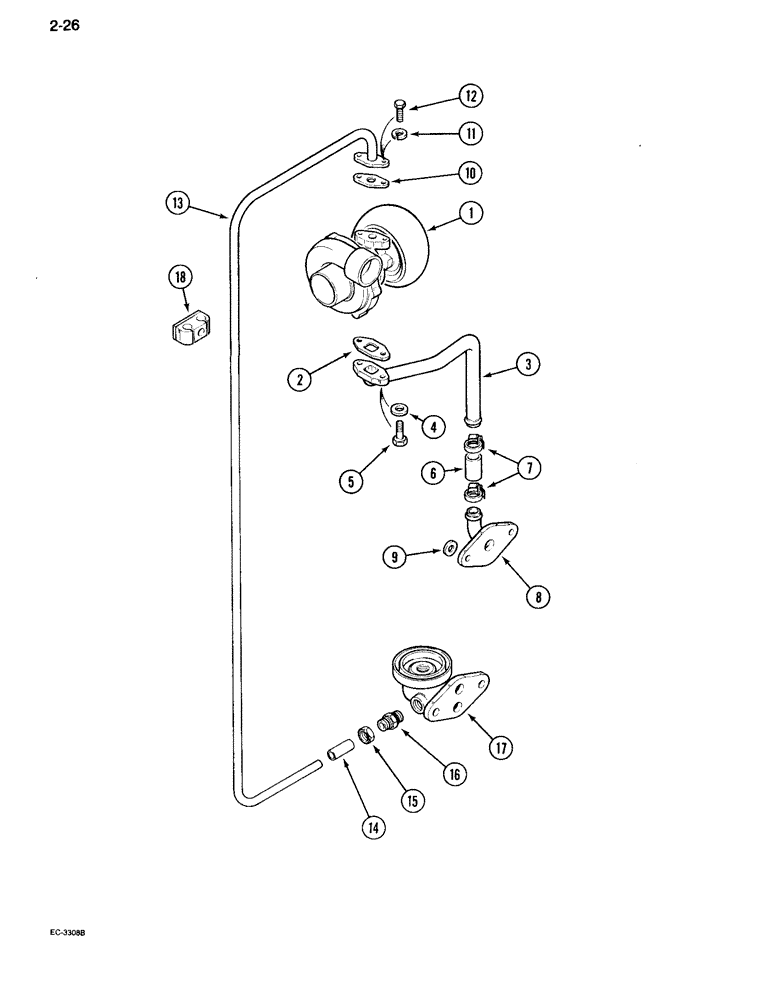

Запчасти Case IH 995 (2-26) - TURBOCHARGER TUBES AND HOSES (02) - ENGINE

1

1967070C1

TURBOCHARGER

ASSEMBLY - engine (See Figure 2-28)

1шт.

2

3144359R2

GASKET,1.5mm Thk

- turbocharger oil drain

1шт.

3

1329031C1

PIPE

TUBE - oil drain

1шт.

4

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

- hardened, 8 mm

2шт.

5

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

6

1967042C1

PIPE

HOSE - oil

1шт.

7

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- hose, Tube

2шт.

8

1329032C91

FLANGE

- turbocharger

1шт.

9

3138627R1

O-RING

RING - packing

2шт.

10

3132062R3

GASKET

- oil feed flange

1шт.

11

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

1967081C1

TUBE

- oil feed, upper

1шт.

14

905646R1

RING

SLEEVE - coupling

1шт.

15

3058452R1

TUBE NUT,Coupling, M16 x 1.5

NUT - pipe

1шт.

16

1967082C1

UNION

- connector

1шт.

17

3132209R2

PEDESTAL

BASE - oil filter

1шт.

18

360713C1

CLAMP,7/16", Insul, 1/2" Bolt

- pipe

1шт.
