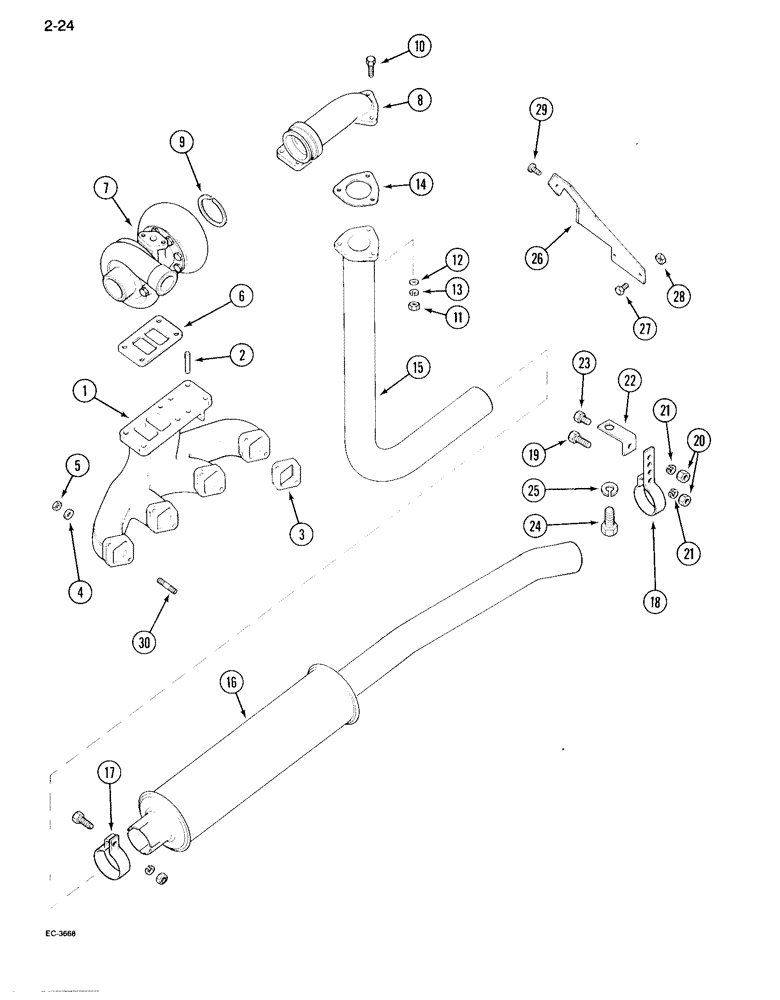

Запчасти Case IH 995 (2-24) - DOWNSWEPT EXHAUST (02) - ENGINE
№
Артикул
Название
Примечание
Количество
3228747R91
MANIFOLD
ASSEMBLY - exhaust, Includes: Ref. 1 and 2
1шт.
1
3228748R1
MANIFOLD
- exhaust
1шт.
2
3228189R1
STUD
- exhaust manifold
8шт.
3
3132434R1
MANIFOLD GASKET,0.5mm Thk
- exhaust manifold
4шт.
Part of cylinder head gaskets service kit
1шт.
4
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
- flat, 13/32 x 13/16 x 3/32 inch, hardened
16шт.
5
129-123
NUT,3/8"-24, G5
8шт.
6
3228634R2
MANIFOLD GASKET
- flange
1шт.
7
1967070C1
TURBOCHARGER
ASSEMBLY - engine (See Figure 2-28)
1шт.
8
1967080C1
ELBOW
- exhaust
1шт.
9
3144358R1
RING
- sealing (Order 702299C1)
1шт.
10
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
3шт.
11
425-106
NUT,3/8"-16, Cl 5
3шт.
12
95-81080
WASHER,13/32" x 3/4" x .120"
- flat, 13/32 x 3/4 x 3/32 inch
3шт.
13
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
14
1536737C1
GASKET
- exhaust manifold pipe
1шт.
15
1536733C1
TUBE,745 mm Length
PIPE - exhaust manifold
1шт.
16
1537024C1
MUFFLER
PIPE ASSEMBLY - muffler and tail
1шт.
17
1537280C1
CLAMP
- pipe (With nut, bolt and washer)
1шт.
18
1536736C1
SUPPORT
- pipe
1шт.
19
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
1шт.
20
425-106
NUT,3/8"-16, Cl 5
2шт.
21
492-11038
LOCK WASHER,3/8"
2шт.
22
90156C1
GUARD
BRACKET - pipe
1шт.
23
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
24
413-1014
BOLT,Hex, 5/8" - 11 x 7/8", Gr 5
1шт.
25
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
26
1537038C1
PROTECTION PLATE
BAFFLE - heat
1шт.
27
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, 8 - 1.25 x 16 mm
2шт.
28
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
29
463-42510
SCREW,Hex, 1/4" - 20 x 5/8"
- cap, 1/4 NC x 5/8 inch
1шт.
30
REF
INSTRUCTION
STUD - exhaust manifold (See Figure 2-34)
8шт.
REF
INSTRUCTION
KIT - service, cylinder head gaskets, Includes: Ref. 3 (See Figure 2-56)
1шт.
Выбрано товаров: 33
