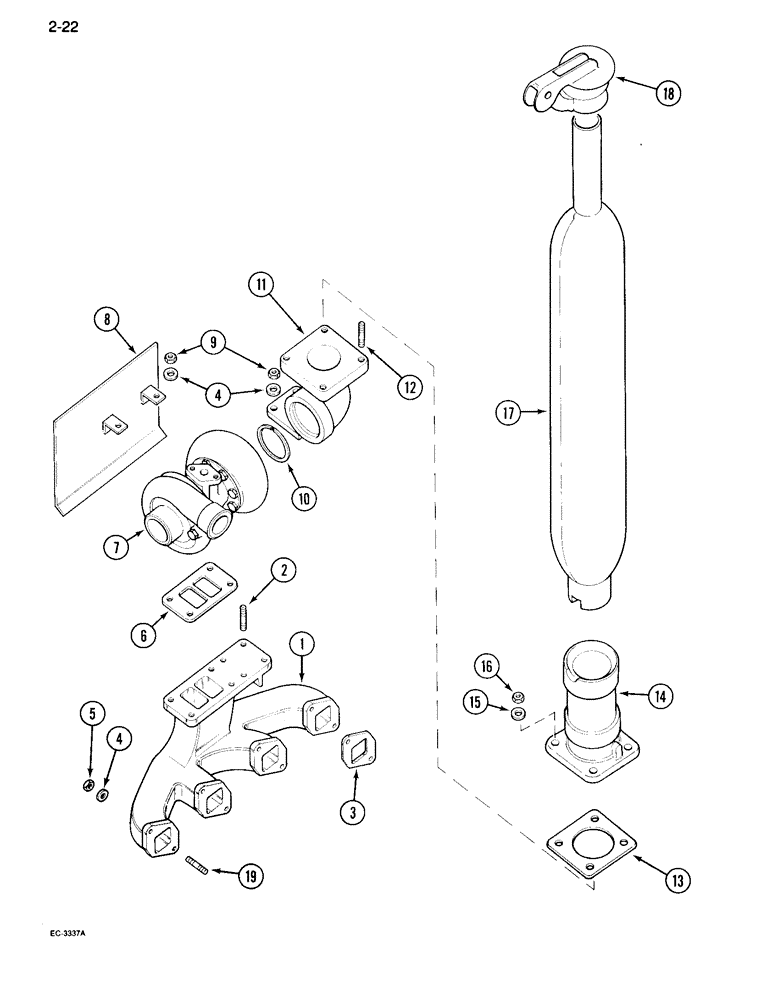

Запчасти Case IH 995 (2-22) - VERTICAL EXHAUST (02) - ENGINE

3228747R91

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - exhaust

1шт.

2

3228189R1

STUD

- exhaust manifold

8шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

Part of cylinder head gaskets service kit

1шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 5/64 inch

16шт.

5

129-123

NUT,3/8"-24, G5

8шт.

6

3228634R2

MANIFOLD GASKET

- flange

1шт.

7

1967070C1

TURBOCHARGER

ASSEMBLY - engine (See Figure 2-28)

1шт.

8

1536550C2

BAFFLE

- heat

1шт.

10

3144358R1

RING

- sealing (Order 702299C1)

1шт.

11

1967019C1

ELBOW

- exhaust

1шт.

12

3055663R1

STUD

- exhaust manifold

4шт.

13

897511H2

MANIFOLD GASKET

GASKET - exhaust manifold

1шт.

14

3404968R2

PIPE, EXHAUST SYSTEM

PIPE - exhaust muffler

1шт.

15

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 3/32 inch

4шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

4шт.

17

3404966R4

MUFFLER

- vertical

1шт.

18

G45048

CAP

- exhaust muffler

1шт.

19

REF

INSTRUCTION

STUD - exhaust manifold (See Figure 2-34)

8шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 3 (See Figure 2-56)

1шт.

9

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

8шт.
