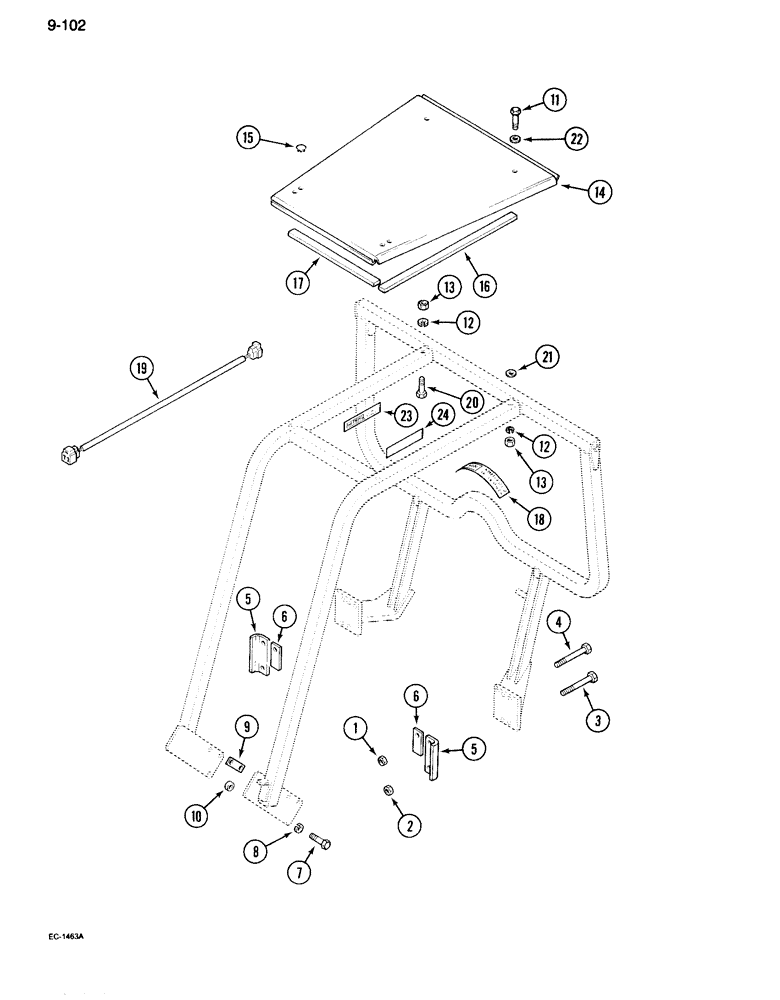

Запчасти Case IH 995 (9-102) - ROLL OVER PROTECTION FRAME, FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
FRAME - roll over protection
1шт.
1
429-1012
NUT,3/4"-10, G8
- hex, 3/4 inch NC, grade 8 (Bar type rear axle)
4шт.
2
429-1010
NUT,5/8"-11, G8
(Flange type rear axle) 5/8"-11, G8
8шт.
3
380575R2
SCREW,Hex, 5/8" - 11 x 8.80", Gr 8
BOLT - hex, 5/8 NC x 8.8 inch, grade 8 (Flange type rear axle)
8шт.
4
426-12144
BOLT,Hex, 3/4" - 10 x 9", Gr 8
- hex, 3/4 NC x 9 inch, grade 8 (Bar type rear axle)
4шт.
5
66062C1
PLATE
- mounting
2шт.
6
66063C1
DECAL
SHIM - mounting plate
4шт.
7
426-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8
- hex, 3/4 NC x 2-1/4 inch, grade 8
6шт.
8
492-11100
LOCK WASHER,1"
1"
6шт.
9
537308R1
PLATE
- spacer
2шт.
10
537309R1
SPACER
- mounting
2шт.
11
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8
- hex, 5/8 NC x 3-1/2 inch, grade 8 (With canopy)
4шт.
11
426-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
- hex, 5/8 NC x 3-1/4 inch, grade 8 (Without canopy)
4шт.
12
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
13
429-1010
NUT,5/8"-11, G8
4шт.
14
66797C1
TOP
CANOPY - ROPS frame
1шт.
15
432487
HOLE PLUG BUTTON,11/16"
PLUG - button, 11/16 inch diameter hole
2шт.
16
118225C1
STRIP
- canopy
1шт.
17
118226C1
STRIP
- canopy
1шт.
18
65982C1
DECAL
- caution instructions
1шт.
19
66064C1
HARNESS
- combination light extension
1шт.
20
426-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8
- hex, 5/8 NC x 3-1/4 inch, grade 8 (Without canopy)
4шт.
21
495-81179
WASHER,21/32" x 1 1/4" x .179"
- flat, 21/32 x 1-1/4 x 5/32 inch (With canopy)
4шт.
22
495-81029
WASHER,0.66" ID x 2" OD x 0.12" Thk
- flat, 21/32 x 2 x 7/64 inch (With canopy)
4шт.
23
70571C1
DECAL
- ROPS caution instructions (English)
1шт.
23
70572C1
DECAL
- ROPS caution instructions (French)
1шт.
24
70773C1
DECAL
- seat belt caution instructions (English)
1шт.
24
70774C1
DECAL
- seat belt caution instructions (French)
1шт.
Выбрано товаров: 28
