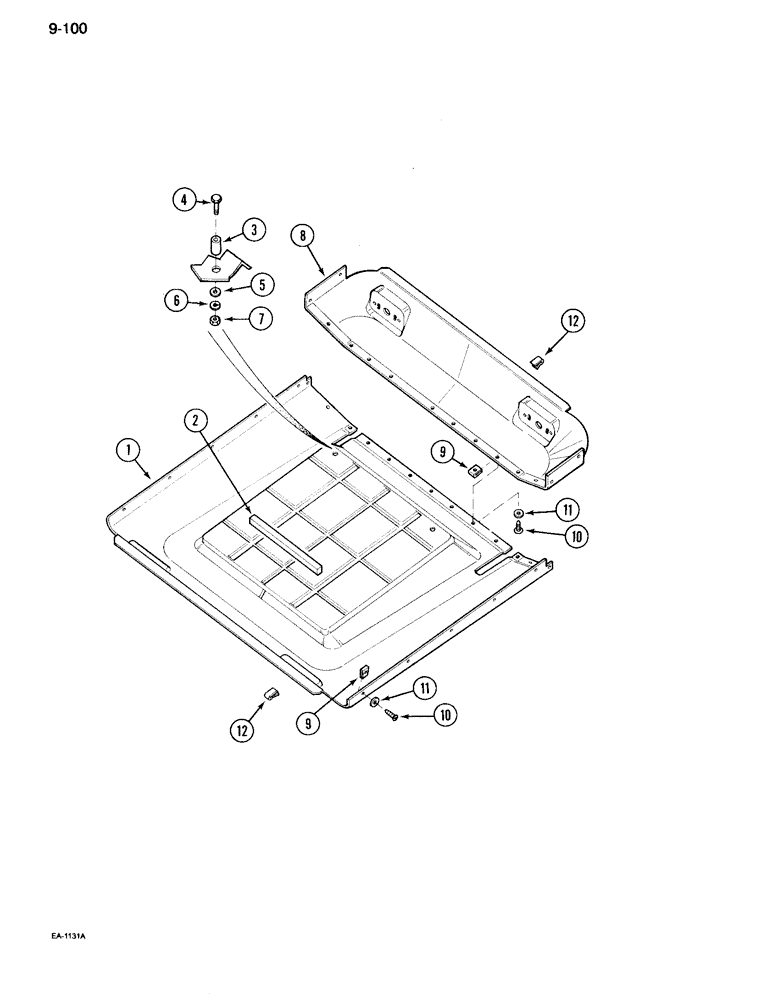

Запчасти Case IH 995 (9-100) - ROLL OVER PROTECTION FRAME, TWO POST CANOPY HEADLINER TRIM (09) - CHASSIS/ATTACHMENTS

1

118381C1

PANEL

HEADLINER - front

1шт.

2

NSS

NOT SOLD SEPARAT

STRIP - vibration damper, 15 inch (Order 2 x, Serial Range: 73213C2,cut-length)

1шт.

3

12302N

SPACER,1/4" Pipe x 15/16"

- standard pipe, 1/4 x 15/16 inch (Order 522204R1)

2шт.

4

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

8

118359C1

PANEL

- headliner rear

1шт.

9

684322R1

SPRING NUT

- U-type spring

25шт.

10

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10-16 x 3/4 inch

25шт.

11

495-31022

WASHER,#10

25шт.

12

118515C1

CLIP

- U-type, speed (Canopy with sheared edges)

18шт.
