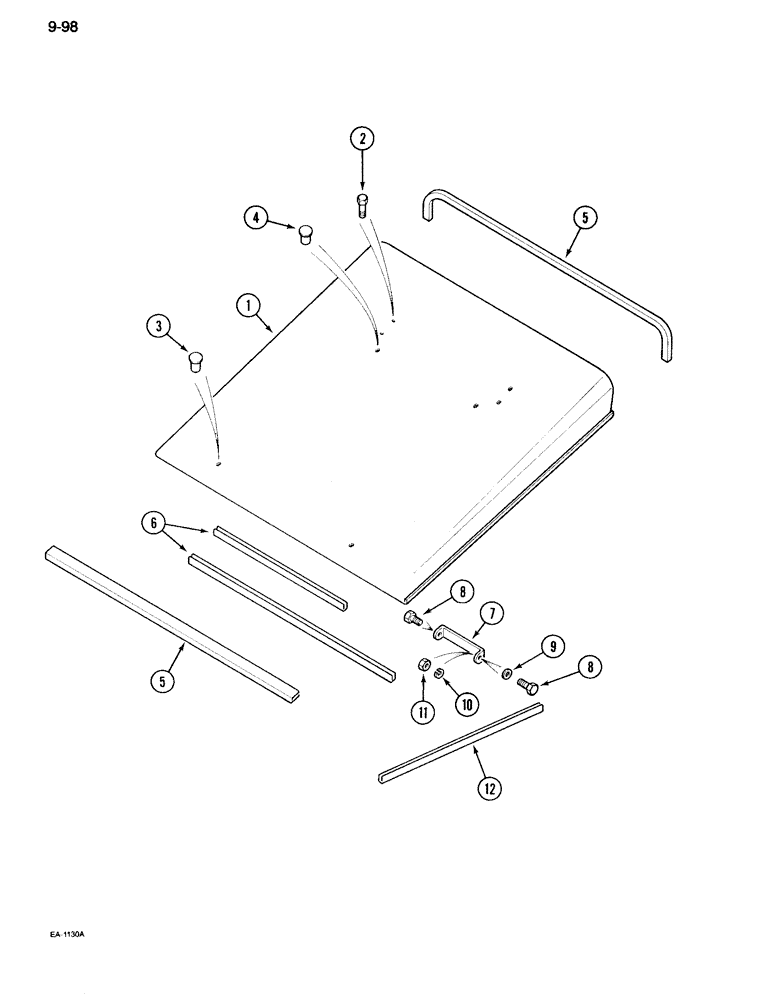

Запчасти Case IH 995 (9-098) - ROLL OVER PROTECTION FRAME, TWO POST ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

1281633C3

ROOF

ASSEMBLY - canopy

1шт.

Item 1 - optional fiberglass roof assm. - 118375c4

1шт.

2

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

8шт.

3

353-406

PLUG,Dome, .625" hole, Nylon

- restraining cable

2шт.

4

3123992R1

PLUG

- 7 mm, canopy blanking (Without headliner trim)

2шт.

4

353-400

PLUG,Dome, .250" hole, Nylon

Blanking (Optional to 3123992R1) Dome, .250" hole, Nylon

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118483C2) (Canopy with sheared edges)

2шт.

5

118483C2

STRIP, METERS

STRIP - roof trim, bulk length (Order 3118677R1, 50 mts.)

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - trim, 62 inch (Order 6 x 1327666C1, Serial Range: cut-length)

2шт.

7

118531C2

BRACKET

- stabilizer

4шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

12

NSS

NOT SOLD SEPARAT

STRIP - trim (Cut from 118524C2)

2шт.

118524C2

SEALING STRIP

STRIP - trim (Order 6 x 1327666C1, Serial Range: cut-length)

1шт.
