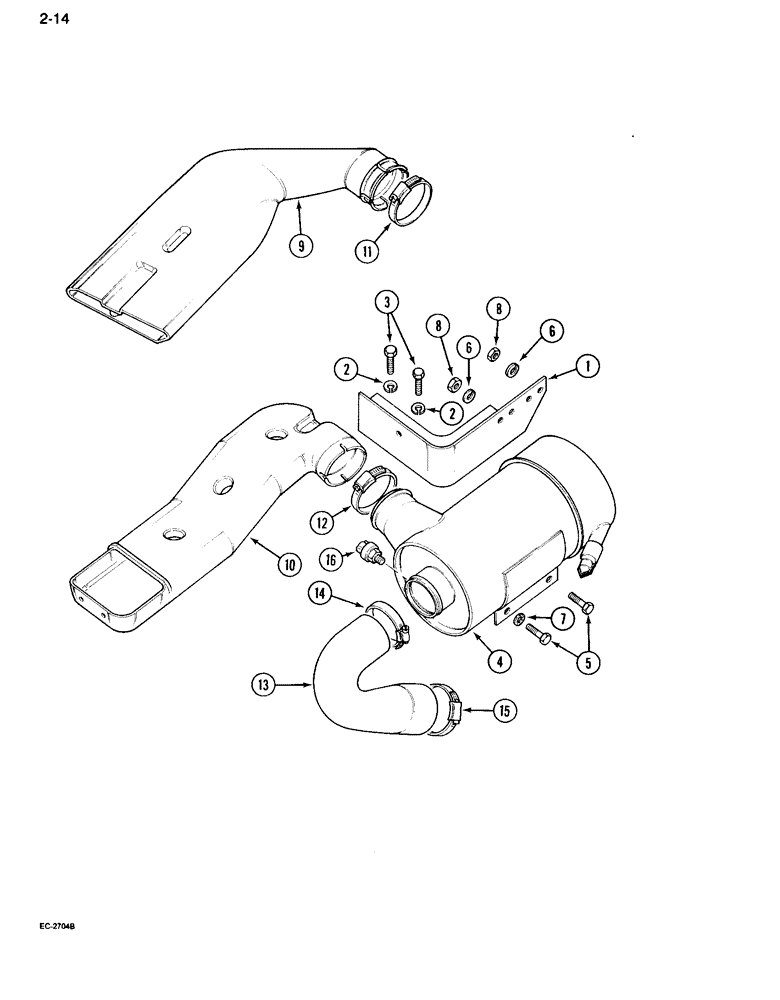

Запчасти Case IH 995 (2-14) - AIR CLEANER (02) - ENGINE

1

1536485C1

SUPPORT

BRACKET - air cleaner mounting

1шт.

1

1333025C2

BRACKET

- air cleaner mounting (Orchard tractor)

1шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

1536486C1

AIR CLEANER

CLEANER ASSEMBLY - air, (Coopers No. SK15890) (See Figure 2-16)

1шт.

4

1265217C92

CLEANER

ASSEMBLY - air (Coopers)(Orchard Tractor) (See page 2-16A)

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

3129847R1

DUCT

- air inlet (Orchard Tractor) (Use with 1265217C92)

1шт.

10

99657C1

DUCT

- air inlet (Use with 1536486C1)

1шт.

11

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP - hose, 4-1/2 inch (Orchard Tractor)

1шт.

12

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP - hose, 4-1/2 inch

1шт.

13

1536487C1

HOSE

- air cleaner outlet

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet (Orchard Tractor) 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

14

539994R1

CLAMP

- hose, No. 350S

1шт.

15

894005H1

CLAMP

- hose No. 400S

1шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.
