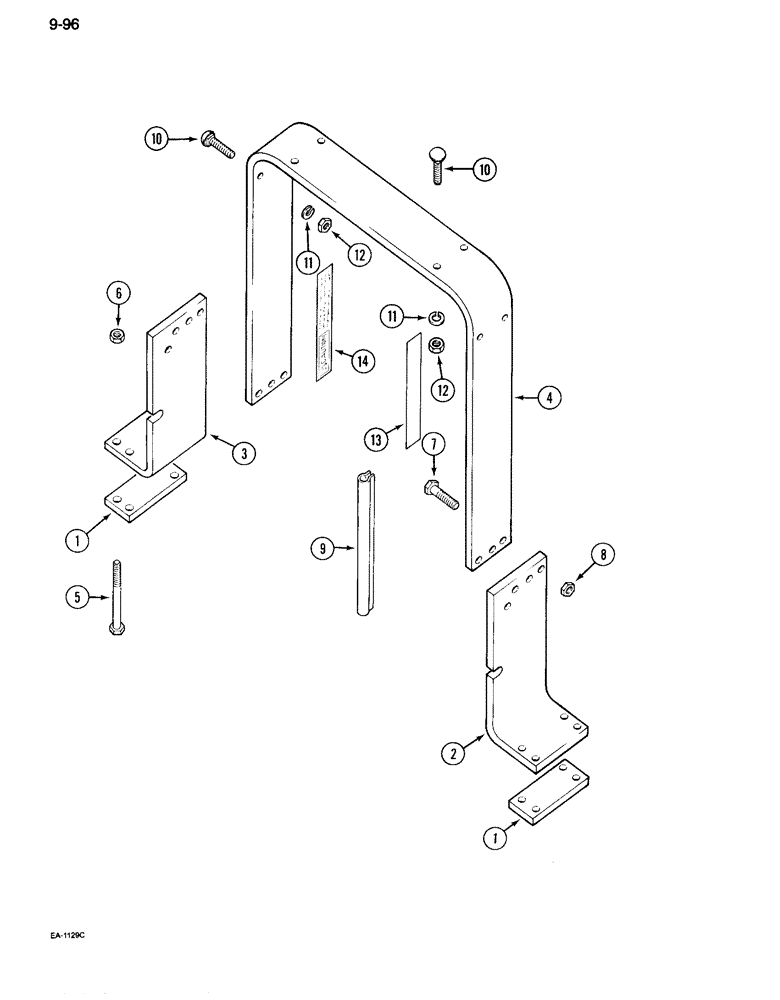

Запчасти Case IH 995 (9-096) - ROLL OVER PROTECTION FRAME, TWO POST ROPS (09) - CHASSIS/ATTACHMENTS

1

118309C1

PLATE

- clamp

2шт.

2

118306C1

SUPPORT

- lower mounting, left

1шт.

2

1974385C1

SUPPORT

- lower mounting, left (Orchard tractor)

1шт.

3

118307C1

SUPPORT

- lower mounting, right

1шт.

3

1974386C1

SUPPORT

- lower mounting, right (Orchard tractor)

1шт.

4

118377C2

FRAME

BAR - roll over protection structure

1шт.

4

1974384C1

FRAME

BAR - roll over protection structure (Orchard tractor)

1шт.

5

1537727C1

BOLT,Hex, 3/4" - 10 x 9", Gr 8, Spcl

BOLT - hex, 3/4 NC x 9 inch, grade 8

8шт.

6

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

7

118425C2

BOLT

- hex, 7/8 NC x 2-3/4 inch

6шт.

8

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

6шт.

9

1286896C1

STRIP

CHANNEL - conduit, ROPS bar trim (Used with canopy)

2шт.

10

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch (Used with canopy)

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with canopy 1/2"

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Used with canopy) 1/2"-13, G5

8шт.

13

70571C1

DECAL

- ROPS caution instruction (English)

1шт.

13

70572C1

DECAL

- ROPS caution instruction (French)

1шт.

Ref #13B - Decal (Spanish) ROPS Caution Instructions

1шт.

14

70773C1

DECAL

- seat belt caution instructions (English)

1шт.

14

70774C1

DECAL

- seat belt caution instructions (French)

1шт.
