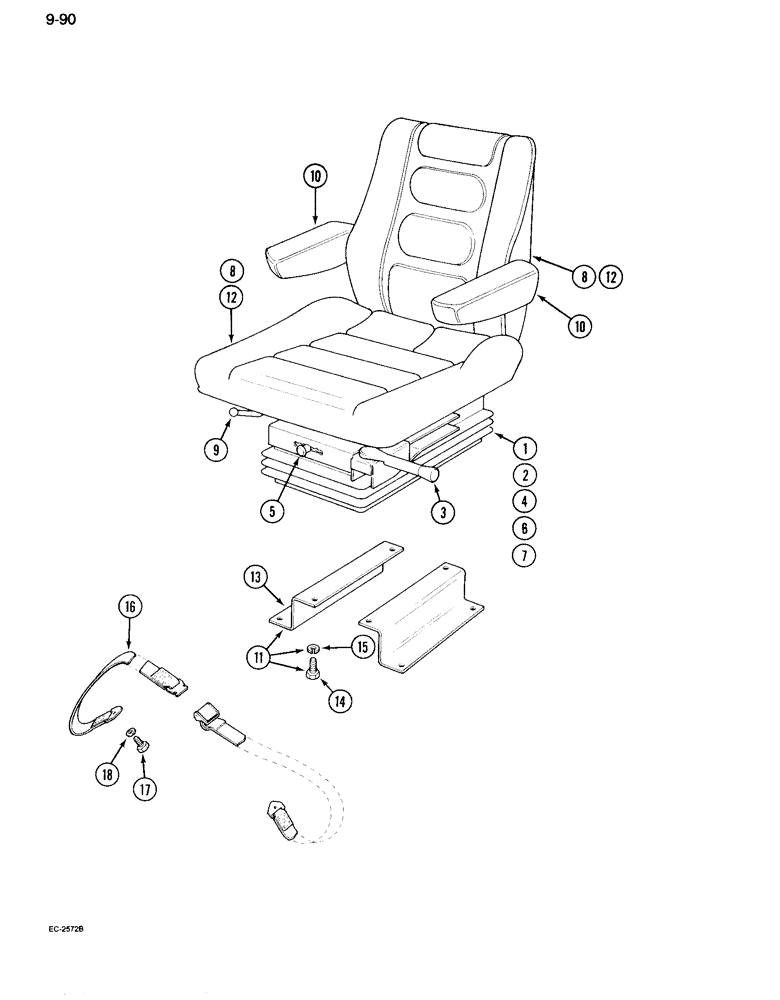

Запчасти Case IH 995 (9-090) - SUSPENSION SEAT, WITH CAB, BOSTROM (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
97288C1
SEAT ASSY.
SEAT ASSEMBLY - deluxe, Includes: Ref. 1 - 12
1шт.
1
1977757C1
KIT
- suspension, cover, includes clips and cover
1шт.
A49658
FASTENER
CLIP - canoe (Order 700709502 Pkg. of 25)
10шт.
NSS
NOT SOLD SEPARAT
COVER - suspension unit
1шт.
NSS
NOT SOLD SEPARAT
CLIP
1шт.
2
1977758C1
SUSPENSION
KIT - suspension, complete, includes washer, trunnion, nut, handle, stud, spacers, and gear
1шт.
3
1977759C1
KIT
- suspension, weight adjuster, includes washer, trunnion, nut, handle, stud, spacers, and gear
1шт.
3123322R1
THRUST WASHER
WASHER - thrust
1шт.
3123324R1
TRUNNION
- adjuster (Small)
1шт.
3123326R1
NUT
- clamp
1шт.
3123327R1
HANDLE
- complete
1шт.
NSS
NOT SOLD SEPARAT
STUD - adjuster
1шт.
NSS
NOT SOLD SEPARAT
SPACER
2шт.
538570R1
GEAR
1шт.
4
1977760C1
KIT
- roller assembly, includes bearings, pins, rollers, and nuts
1шт.
3123316R1
BUSHING
BEARING
1шт.
NSS
NOT SOLD SEPARAT
PIN - roll
2шт.
NSS
NOT SOLD SEPARAT
BEARING
2шт.
NSS
NOT SOLD SEPARAT
BEARING
1шт.
3123318R1
PIVOT PIN
PIN - pivot
2шт.
3220539R1
BUSHING
ROLLER
4шт.
3123321R1
PIVOT PIN
PIN - pivot
2шт.
5
1977761C1
KIT
- suspension, height adjuster, includes knob, spring, and bolt
1шт.
3123309R1
BUTTON
KNOB - slide (Order 1536441C!)
1шт.
3220537R1
SPRING
- slider
1шт.
3220548R1
SCREW
BOLT - hex, 6 mm - 1.0 x 25 mm
1шт.
6
1977762C1
KIT
- suspension, damper assembly, includes nut, pin, and damper
1шт.
NSS
NOT SOLD SEPARAT
NUT - starlock
1шт.
NSS
NOT SOLD SEPARAT
PIN - headed
1шт.
NSS
NOT SOLD SEPARAT
DAMPER - complete
1шт.
7
1977763C1
KIT
- suspension, bump stops, includes buttons and bumper
1шт.
3123308R1
BUMPER
BUTTON - bumper
2шт.
3220516R1
STOP
BUMPER - rubber
1шт.
8
1977764C1
SEAT BACK
KIT - upper assembly, includes covers, foam, frame, clips, bars, rings, rod, plate, screws, and washers
1шт.
NSS
NOT SOLD SEPARAT
COVER - back
1шт.
NSS
NOT SOLD SEPARAT
COVER - seat
1шт.
NSS
NOT SOLD SEPARAT
FOAM - back
1шт.
NSS
NOT SOLD SEPARAT
FOAM - seat
1шт.
NSS
NOT SOLD SEPARAT
FRAME - seat assembly
1шт.
NSS
NOT SOLD SEPARAT
CLIP - spring
2шт.
NSS
NOT SOLD SEPARAT
BAR - trim
2шт.
NSS
NOT SOLD SEPARAT
RING - hog
3шт.
NSS
NOT SOLD SEPARAT
ROD - pouch
1шт.
NSS
NOT SOLD SEPARAT
CLIP
15шт.
NSS
NOT SOLD SEPARAT
PLATE - adapter
1шт.
NSS
NOT SOLD SEPARAT
SCREW - 6 x 12 mm
4шт.
NSS
NOT SOLD SEPARAT
WASHER - lock, 6 mm
4шт.
9
1977765C1
KIT
- slide rails, includes rails, screws, and washers
1шт.
NSS
NOT SOLD SEPARAT
RAIL - slide, right
1шт.
NSS
NOT SOLD SEPARAT
RAIL - slide, left
1шт.
NSS
NOT SOLD SEPARAT
SCREW - 6 x 16 mm
4шт.
NSS
NOT SOLD SEPARAT
WASHER - lock, 6 mm
4шт.
NSS
NOT SOLD SEPARAT
WASHER - flat
4шт.
NSS
NOT SOLD SEPARAT
SCREW - 8 x 20 mm
4шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
4шт.
NSS
NOT SOLD SEPARAT
WASHER - flat, left rail
2шт.
10
1977766C1
KIT
- arm rests, includes arms, screws, washers, and spacers
1шт.
NSS
NOT SOLD SEPARAT
ARM - rest
1шт.
NSS
NOT SOLD SEPARAT
ARM - rest
1шт.
NSS
NOT SOLD SEPARAT
SCREW - 8 x 60 mm
4шт.
NSS
NOT SOLD SEPARAT
WASHER - lock, 8 mm
4шт.
NSS
NOT SOLD SEPARAT
SPACER
4шт.
11
1977767C1
KIT
- mounting brackets, includes brackets, screws, and washers
1шт.
NSS
NOT SOLD SEPARAT
BRACKET - support, seat mounting
2шт.
NSS
NOT SOLD SEPARAT
SCREW - 8 x 20 mm
4шт.
934309R1
LOCK WASHER,M8
WASHER - lock, 8 mm
4шт.
12
1977768C1
KIT
- trim service package, includes covers, clips, and rod
1шт.
NSS
NOT SOLD SEPARAT
COVER - back
1шт.
NSS
NOT SOLD SEPARAT
COVER - seat
1шт.
NSS
NOT SOLD SEPARAT
CLIP
15шт.
NSS
NOT SOLD SEPARAT
ROD - pouch
1шт.
13
97289C1
SUPPORT
BRACKET - support, seat mounting (Order 1977767C1)
2шт.
14
613-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 20 mm
4шт.
15
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
16
537339R1
SAFETY BELT
SAFETY BELT, 2"
1шт.
17
86509452
BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd
- hex, 7/16 NC x 1 inch
2шт.
18
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch
2шт.
