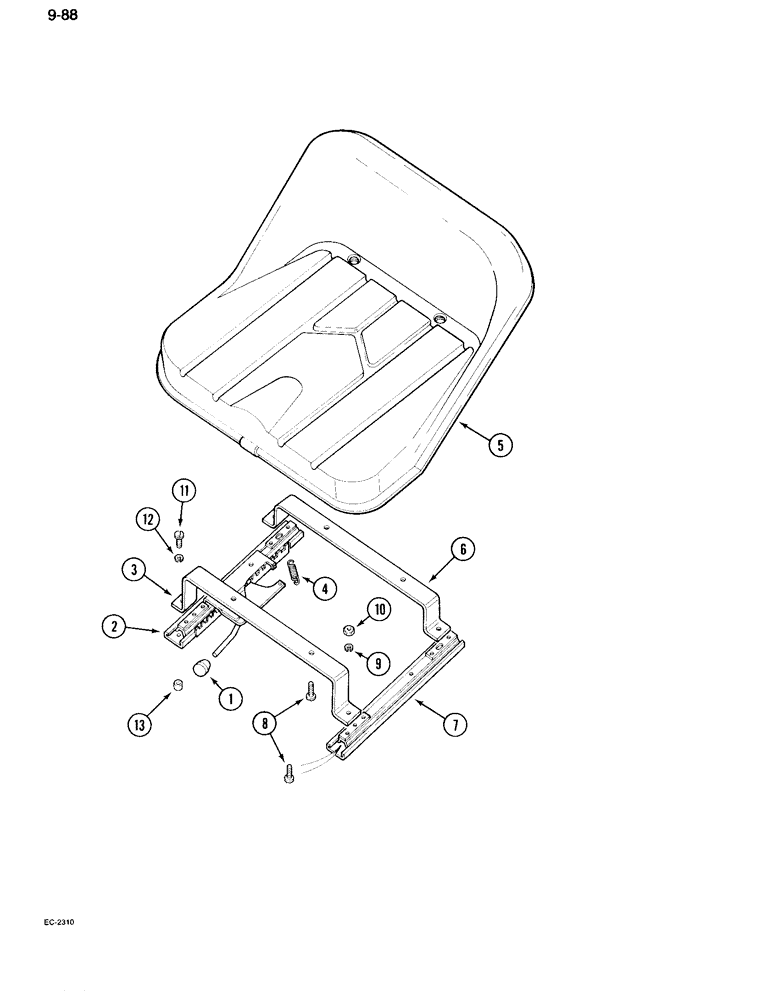

Запчасти Case IH 995 (9-088) - STATIC SEAT, LOW PROFILE TRACTOR (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - static, Includes: Ref. 1 - 10

1шт.

NSS

NOT SOLD SEPARAT

SEAT ASSEMBLY - static (Orchard tractor), Includes: Ref. 1 - 10

1шт.

1

538693R1

BUTTON

KNOB - seat adjustment handle (Order 3168593R1)

1шт.

Ref #1, part number 538693R1, is a 8 x 1.5mm threaded knob. If dlr is looking for a 6 x 1.0mm threaded knob, part number is 3168593R1.

1шт.

2

825199C91

SLIDE

RAIL - slide, right (With adjuster)

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting

1шт.

3

1333093C1

BRACKET

- front mounting (Orchard tractor)

1шт.

4

538694R1

SPRING

- return

1шт.

5

538026R1

SEAT ASSY.

SEAT ASSEMBLY - pan

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting

1шт.

6

1333092C1

BRACKET

- rear mounting (Orchard tractor)

1шт.

7

825198C1

RAIL

- slide, left

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan head Phillps, 5/16 NC x 3/4 inch

12шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

- pan head Phillips, 5/16 NC x 1-1/4 inch

4шт.

12

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

13

3123562R1

SPACER

- seat

4шт.
