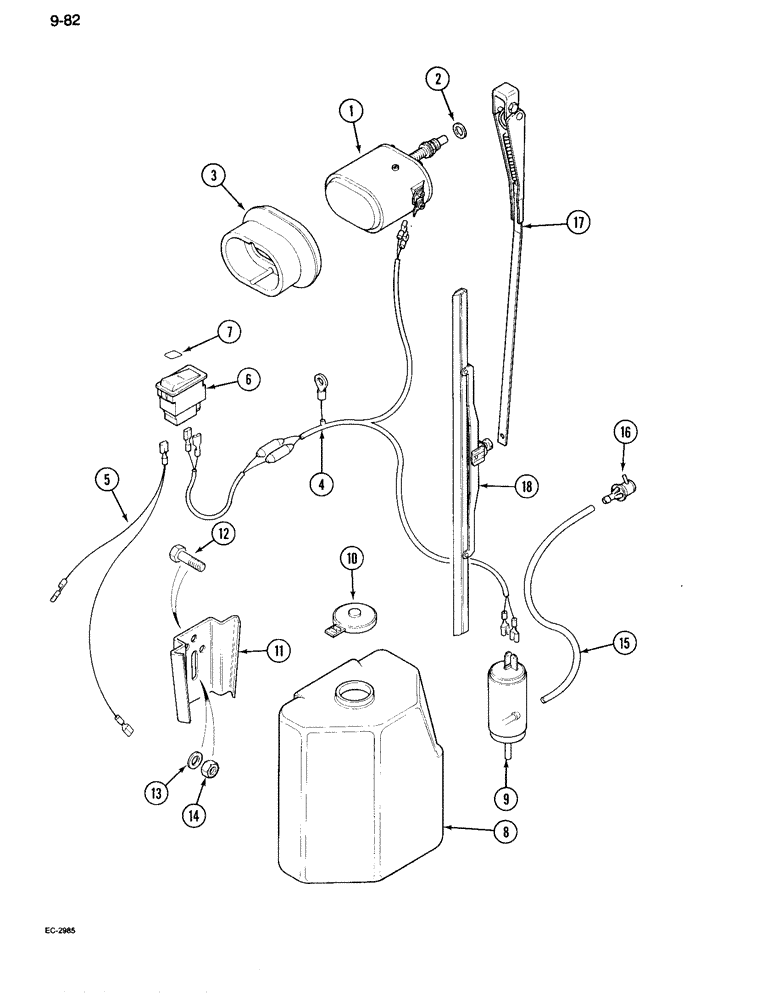

Запчасти Case IH 995 (9-082) - CAB, REAR WINDOW WIPER (09) - CHASSIS/ATTACHMENTS

1328455C1

PACKAGE

KIT - field service, rear window wash and wipe, Includes: Ref. 1 - 18

1шт.

1

1328456C1

WIPER MOTOR

MOTOR - wiper, rear window

1шт.

2

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm

1шт.

3

1328461C1

BOOT

PROTECTOR - rubber, wiper motor

1шт.

4

1328459C1

HARNESS

ASSEMBLY - rear wiper

1шт.

5

1328460C1

HARNESS

- rear wiper

1шт.

6

245911C1

TOGGLE SWITCH

SWITCH - rocker

1шт.

7

1328477C1

LENS

DECAL - symbol, rear window wipe/wash, green

1шт.

3227222R91

RESERVOIR

ASSEMBLY - window wash liquid, Includes: Ref. 8 - 11

1шт.

8

3227041R1

RESERVOIR

- window wash liquid

1шт.

9

3227223R1

PUMP

- washer, 12 volt

1шт.

10

3227043R1

PLUG

CAP - reservoir

1шт.

11

3227039R1

SUPPORT

BRACKET - support

1шт.

12

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

- hex, 5 mm - 0.80 x 16 mm

2шт.

13

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

- flat, 5 mm

2шт.

14

905425R1

NUT

- hex jam, 5 mm, class 8

2шт.

15

1328462C1

HOSE,4 mm ID x 1700.00 mm

4.00 mm ID x 1700.00 mm, Window Washer

1шт.

16

1328463C1

NOZZLE CAP

JET - window wash

1шт.

17

3058769R91

WIPER ARM

ARM - wiper

1шт.

18

3058768R92

WIPER BLADE,400mm L

BLADE - wiper

1шт.
