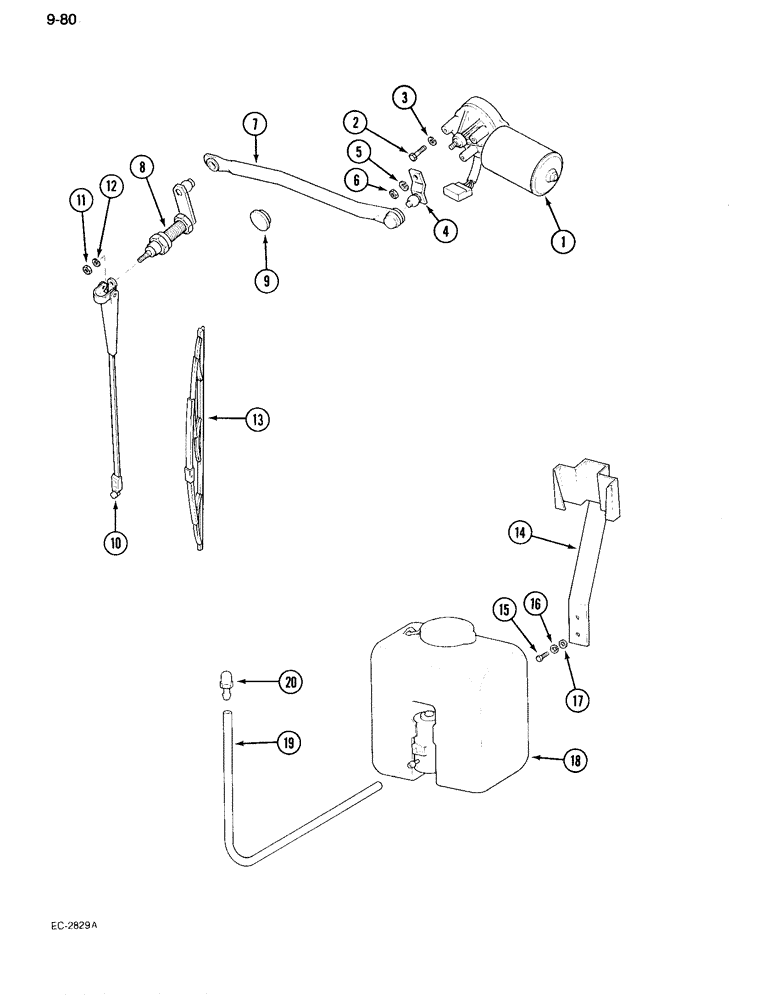

Запчасти Case IH 995 (9-080) - CAB, WINDSHIELD WASH AND WIPE UNIT (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (See Figure 9-034), Includes: Ref. 1 - 9

1шт.

1

3401302R93

WIPER MOTOR

MOTOR - windshield wiper

1шт.

2

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

4

3234718R1

LEVER

- wiper actuating

1шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

6

825-1406

NUT,M6, Cl 8

1шт.

7

3234391R1

LEVER

ARM - wiper actuating

1шт.

8

3234394R1

PIVOT

- wiper actuating

1шт.

9

3234750R1

PLUG

- blanking

1шт.

10

3234745R1

WIPER ARM

ARM - wiper

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

12

934676R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (Optional to 934676R1) M8

1шт.

13

3234746R91

WIPER BLADE

BLADE - wiper

1шт.

14

3129895R2

SUPPORT

BRACKET - washer bottle

1шт.

15

613-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 12 mm

2шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

17

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

18

3129898R1

CONTAINER

- windshield wash liquid

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE - windshield wash (Cut from 3399298R1)

1шт.

19

3129901R1

HOSE,4 mm ID, 6.5 mm OD

TUBE - bulk length (Order 3399298R1)

1шт.

20

3129899R92

JET

- windshield wash

1шт.
