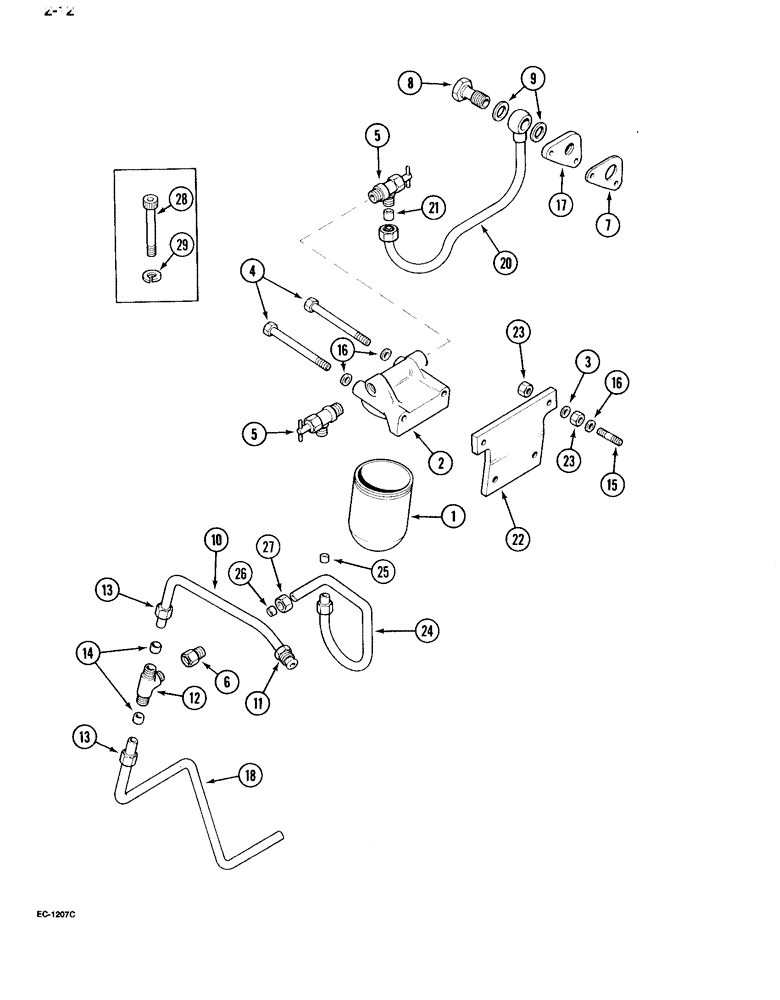

Запчасти Case IH 995 (2-12) - COOLANT FILTER (02) - ENGINE

1

A151931

FILTER

- coolant

1шт.

2

1800029C1

HEAD

- coolant filter (Shown)

1шт.

Prior to P.I.N. JJE0027660

1шт.

2

A152821

HEAD

- coolant filter

1шт.

P.I.N. JJE0027660 and after

1шт.

3

25534R1

WASHER

- flat, 13/32 x 13/16 x 1/16 inch, hardened

2шт.

4

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

5

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut off

2шт.

6

3233208R1

UNION

- adaptor, straight

1шт.

7

3055306R2

GASKET

- manifold, water collecting

1шт.

Part of cylinder head gaskets service kit

1шт.

8

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, 16 mm - 2.00

1шт.

9

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

Part of crankcase gaskets service kit

1шт.

10

1329003C1

PIPE

- water pump carrier to tee union

1шт.

11

222-507

TUBE NUT,7/8"-18

NUT - union, 5/8 inch OD tube

1шт.

12

3401098R1

TEE,M15 Tube

UNION - tee

1шт.

13

3143333R1

TUBE NUT,Coupling, M22 x 1.5

NUT - coupling

2шт.

14

3143334R1

OLIVE

SLEEVE - coupling

2шт.

15

3228188R1

STUD

- exhaust manifold

2шт.

16

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 3/32 inch

2шт.

17

3218396R2

FLANGE

PLATE - cover

1шт.

18

1329004C1

PIPE

- tee union to oil cooler

1шт.

20

3228212R93

PIPE

- coolant filter to outlet (Order 1806441R91)

1шт.

21

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

22

3228762R1

SUPPORT

BRACKET - coolant filter

1шт.

Prior to P.I.N. JJE0027660

1шт.

22

3228211R1

SUPPORT

BRACKET - coolant filter

1шт.

P.I.N. JJE0027660 and after

1шт.

23

129-123

NUT,3/8"-24, G5

4шт.

24

1329005C91

PIPE

- tee, union to coolant filter, Includes: Ref. 25 - 27

1шт.

25

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

26

905646R1

RING

SLEEVE - coupling

1шт.

27

3058452R1

TUBE NUT,Coupling, M16 x 1.5

NUT - pipe

1шт.

28

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - filter head to bracket

4шт.

P.I.N. JJE0027660 and after

1шт.

29

3050221R1

LOCK WASHER

- lock

4шт.

P.I.N. JJE0027660 and after

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 7 (See Figure 2-56)

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 9 (See Figure 2-58)

1шт.
