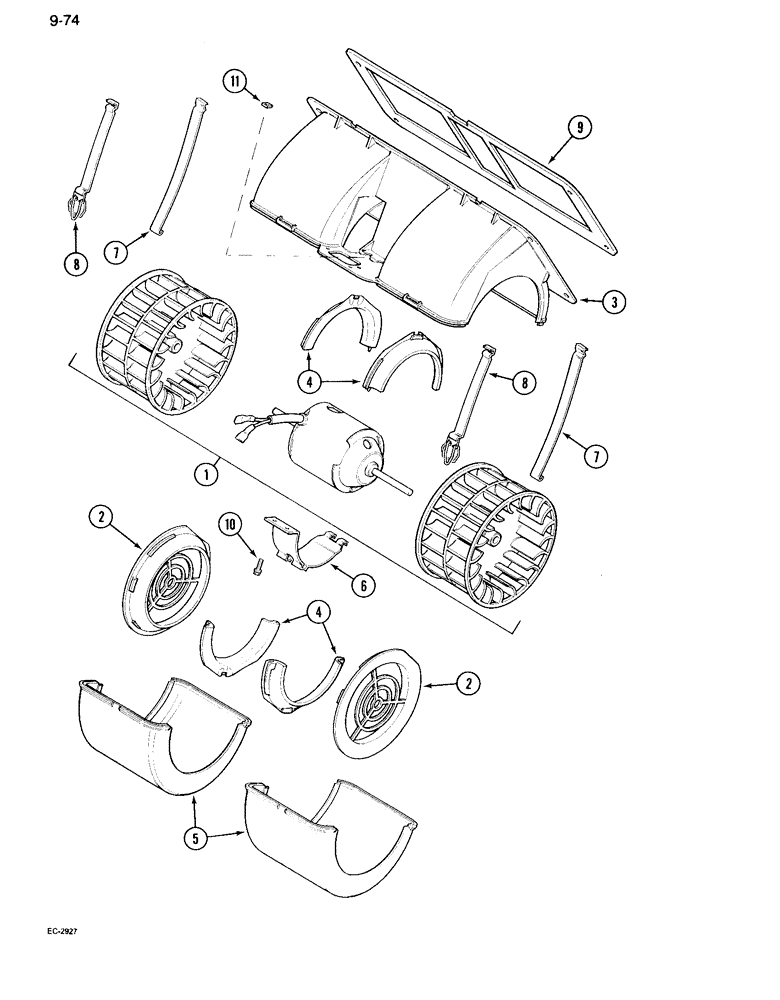

Запчасти Case IH 995 (9-074) - CAB, BLOWER ASSEMBLY, BEHR (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - air, Includes: Ref. 1 - 11

1шт.

1

1974779C1

MOTOR

- blower, with wheels

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1974779C1

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

2

1974780C1

VENTURI

- blower inlet

2шт.

3

1975737C1

HOUSING

- blower

1шт.

4

1975738C1

RING

- blower housing

4шт.

5

1975739C1

LID

COVER - blower housing

2шт.

6

1975740C1

HOLDER

RETAINER - blower motor

1шт.

7

1975741C1

STRAP

- retaining

2шт.

8

1975742C1

STRAP

- latch retaining

2шт.

9

1975743C1

GASKET

GASKET - blower sealing

1шт.

10

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

- hex, 5 mm - 0.80 x 20 mm

2шт.

11

1975752C1

SQUARE NUT

- square, 5 mm

2шт.
