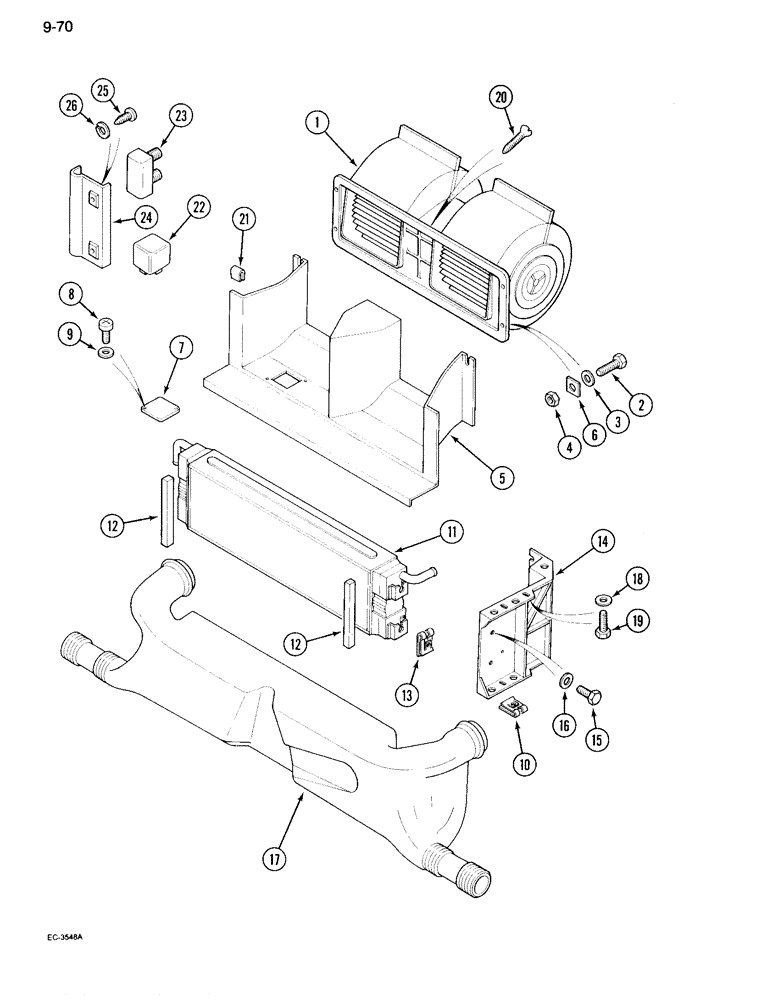

Запчасти Case IH 995 (9-070) - CAB, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
BLOWER ASSEMBLY - air (Behr)(See Figure 9-074)
1шт.
1
1977564C2
BLOWER
ASSEMBLY - air (Aurora)(See Figure 9-072)
1шт.
1
355190A1R
REMAN-BLOWER,12V
Reman for New PN 1977564C2
1шт.
1
355190A1C
CORE-BLOWER,12V
Return Number
1шт.
2
614-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
4шт.
3
934753R1
WASHER
- flat, 0.28 x 0.75 inch
4шт.
4
825-1406
NUT,M6, Cl 8
4шт.
5
3233571R1
DEFLECTOR
- air
1шт.
6
3402978R1
PLATE
- mounting
2шт.
7
1535269C1
COVER
- deflector
2шт.
8
905922R1
SCREW,M4 x 8mm
- pan head, cross recess
2шт.
9
893-11004
LOCK WASHER,Ext Tooth, M4
WASHER - flat, 0.28 x 0.75 inch
2шт.
10
3233707R1
SPRING NUT
- spring, push on
2шт.
11
3233586R91
HEAT-EXCHANGER
ELEMENT ASSEMBLY - heat exchanger, Includes: Ref. 12 and 13
1шт.
12
1283288C1
GASKET
- foam
2шт.
13
3233660R1
SPRING NUT
- spring push on
4шт.
14
3233574R1
SUPPORT
- right
1шт.
14
3402833R1
SUPPORT
- left
1шт.
15
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
4шт.
16
934753R1
WASHER
- flat, 0.28 x 0.75 inch
4шт.
17
3233567R1
MANIFOLD
DEFLECTOR - blower
1шт.
18
934753R1
WASHER
- flat, 0.28 x 0.75 inch
4шт.
19
3230790R1
HEX SOC SCREW,M6 x 16mm, Cl 8.8
- cap, hex socket, 6 x 16 mm
4шт.
20
3404394R1
SCREW
- mounting
1шт.
21
3404393R1
CLIP
- protection
2шт.
22
146461C1
RELAY
- fan, 30 amp
2шт.
23
245763C1
CIRCUIT-BREAKER,20A
BREAKER - circuit, 20 amp
1шт.
23
403069R1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30, Serial Range: amp(Optional-245763C1)
1шт.
24
245765C1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30 amp
1шт.
24
403069R1
CIRCUIT-BREAKER,30A
BREAKER - circuit, 30 amp, Serial Range: (Optional-245765C1)
1шт.
24
245867C1
HOLDER
- circuit breaker (Not used with 403069C1)
1шт.
25
3233276R1
SELF-TAP SCREW,Pan Hd, M4.2 x 13
SCREW - Phillips tapping, 4.2 x 13 mm
1шт.
26
892-10005
LOCK WASHER,M5
WASHER - lock, 5 mm
1шт.
Выбрано товаров: 33
