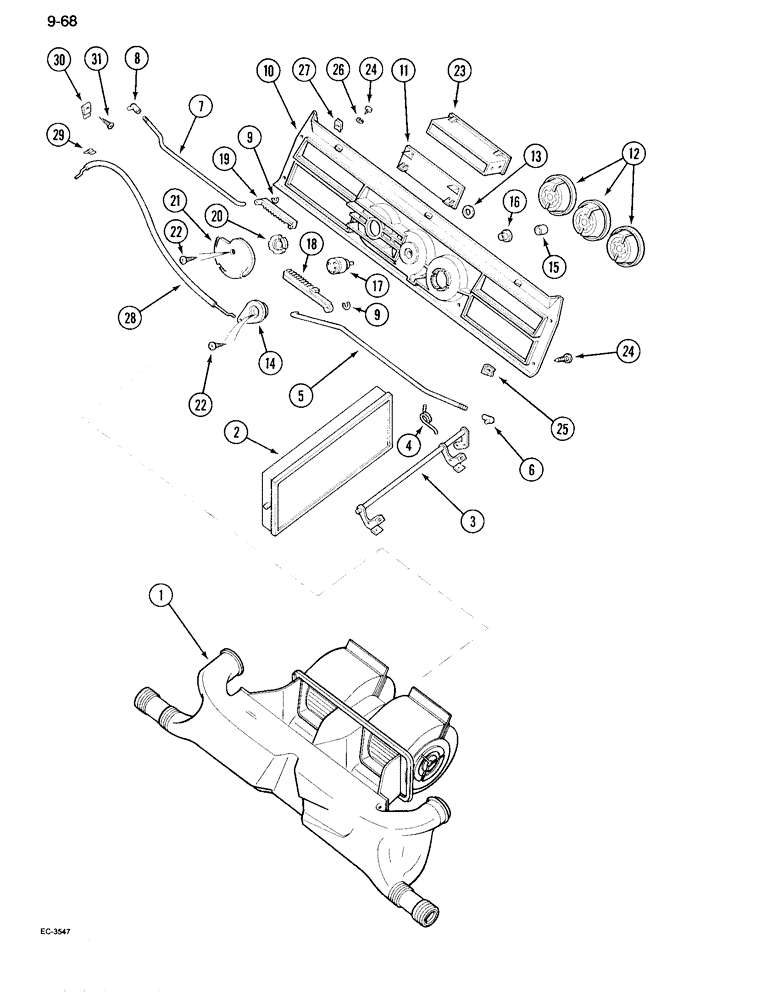

Запчасти Case IH 995 (9-068) - CAB, HEATER CONTROLS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (See Figure 9-034), Includes: Ref. 1 - 31

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY - heater (See Figure 9-070)

1шт.

2

3233584R2

CAB FILTER

FILTER - air cleaner

1шт.

3

3234202R91

SUPPORT

BRACKET - flap assembly, left

1шт.

3

3234203R91

SUPPORT

BRACKET - flap assembly, right

1шт.

4

3234192R1

SPRING

- torsion, left

1шт.

4

3234193R1

SPRING

- torsion, right

1шт.

3234199R91

ROD ASSY.

ROD ASSEMBLY - operating, left, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - operating, left

1шт.

6

3233279R1

BALL JOINT

JOINT - ball

1шт.

3234198R91

LINKAGE

ROD ASSEMBLY - operating, right, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

ROD - operating, right

1шт.

8

3233279R1

BALL JOINT

JOINT - ball

1шт.

9

933699R1

X,M5

RING - retaining, external

2шт.

3234184R92

PANEL

ASSEMBLY - heater control, Includes: Ref. 10 - 22

1шт.

10

3233565R2

PANEL

- switch

1шт.

11

1535219C1

COVER

- radio opening

1шт.

12

3233615R1

BUTTON

KNOB - heater control

3шт.

13

1332311C1

FRICTION WASHER

- friction

1шт.

14

3233677R1

LEVER

- control, heating valve

1шт.

15

3233614R1

SPRING CLIP

CLIP - spring

1шт.

16

3233661R1

SCREW

1шт.

17

3405693R1

BLOWER SWITCH

SWITCH - blower

1шт.

18

3234182R1

GEAR RACK

RACK - gear

1шт.

19

3234181R1

GEAR RACK

RACK - gear

1шт.

20

3234183R1

GEAR

- wheel

1шт.

21

3234180R1

ECCENTRIC

CAM - eccentric

1шт.

22

766-34522

SCREW,Oval, M5.5 x 1.8 x 22mm

- tapping, oval, cross recess, 5.5 x 22 mm

2шт.

23

3233587R1

DIFFUSER

- upper left

1шт.

23

3233588R1

DIFFUSER

- upper right (Order 3233646R1)

1шт.

24

905935R1

SELF-TAP SCREW,Oval Hd, M4.2 x 16

SCREW - tapping, cross recess, 4.2 x 16 mm

11шт.

25

3234214R1

SPRING NUT

- spring, push on

8шт.

26

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

3шт.

27

3234191R1

SPRING NUT

- spring push on

3шт.

28

3234197R1

CABLE

- operating,heater water valve

1шт.

29

3233746R1

CLIP

- cable

1шт.

30

3401582R1

SPRING NUT

- lock

1шт.

31

905924R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - pan head, cross recess, 4.8 x 16 mm

1шт.
