Запчасти Case IH 995 (9-060) - CAB, CONTROL LEVER COVERS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

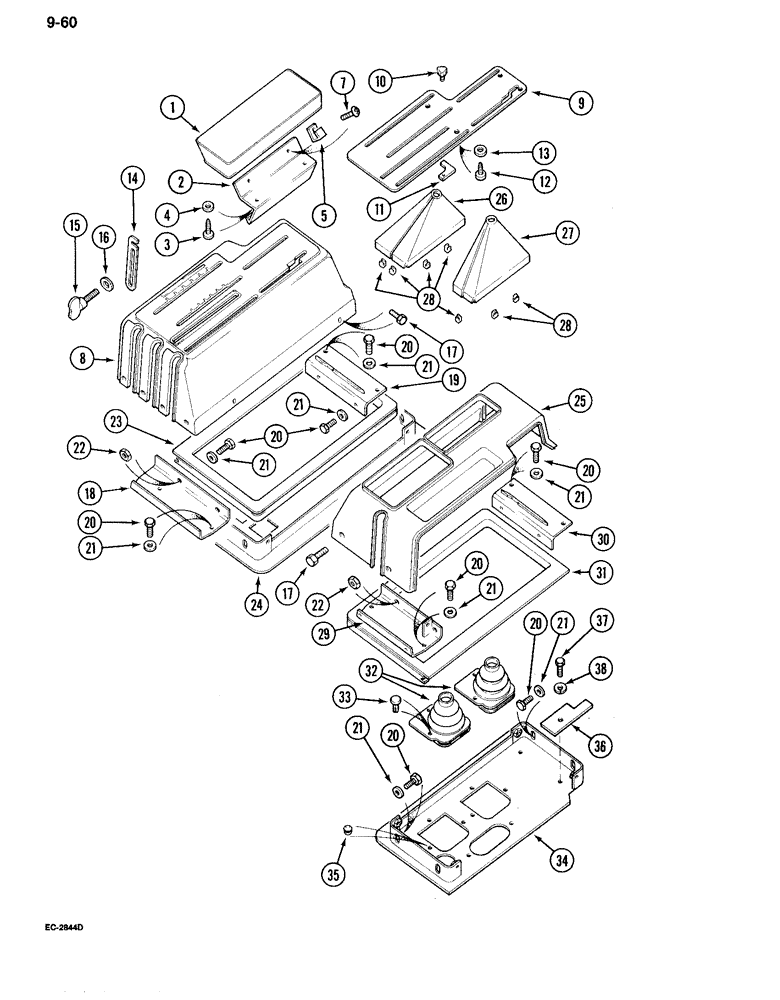

Схема запчастей Case IH 995 - (9-060) - CAB, CONTROL LEVER COVERS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
21
37
17
5
31
11
20
38
17
3
1
12
7
34
20
9
21
20
33
21
29
18
21
35
13
10
21
21
4
20
27
28
36
8
14
30
22
19
21
32
2
23
15
24
20
26
16
28
22
21
25
20
20

Артикул

Название

Примечание

Количество

1

1330897C1

ARMREST

- right, Includes: Ref. 2 and 3

1шт.

2

1500435C1

SUPPORT

BRACKET - support

1шт.

3

1500436C1

SCREW,Cross Rec Pan Hd, M6 x 20mm

- pan head cross recess

2шт.

4

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 6.6 x 12.5 x 2 mm, hardened

2шт.

5

3234432R1

SPRING NUT

- spring, push-on 6.3 mm

2шт.

7

905997R1

SELF-TAP SCREW,Pan Hd, M6.3 x 22

SCREW - tapping, oval cross recess, 6.3 x 22 mm

2шт.

8

1331015C1

COVER

- console, right, Includes: Ref. 9 - 13

1шт.

9

1500367C1

PLATE

- lever pattern, right

1шт.

10

1500369C1

KNOB

KNOB - position control stop

1шт.

11

3129745R1

STOP

- position control

1шт.

12

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - tapping, pan slotted,No. 6 x 3/8 inch

6шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

6шт.

14

99434C1

PLATE

- lockout, auxiliary valve lever

1шт.

15

99972C1

SCREW,3/8" - 16 x 1 3/4"

- wing, adjusting

1шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

17

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

- 6 x 16 mm

14шт.

18

99438C1

SUPPORT

BRACKET - front mounting, right console

1шт.

19

1500351C2

SUPPORT

BRACKET - rear mounting, right console

1шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

16шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

16шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

23

3401382R1

SEAL

SEAL - adaptor plate, left

1шт.

24

3129748R91

PLATE

- adaptor, right (Order 1 x 2726219R1 and 1 x 187-845) (See page 9-63)

1шт.

25

1500370C91

COVER ASSY

PANEL - console, left

1шт.

26

1500373C1

BELLOWS

BOOT - range lever, Includes: Ref. 26 - 28

1шт.

27

1500372C1

BELLOWS

BOOT - speed lever

1шт.

28

1500374C1

CLIP,ELECTRICAL

CLIP - cover

14шт.

29

94391C2

SUPPORT

BRACKET - front mounting, left console

1шт.

30

1500346C2

SUPPORT

BRACKET - rear mounting, left console

1шт.

31

98018C2

SEAL

SEAL - adaptor plate, left

1шт.

32

94377C1

BOOT

- protective, speed and range levers

2шт.

33

1289539C1

FASTENER

- plastic

6шт.

34

94389C3

PLATE

- adaptor, left

1шт.

35

716493R2

PLUG

- 8.6 mm diameter

3шт.

36

1331119C2

PLATE

- locating

1шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Выбрано товаров: 37
