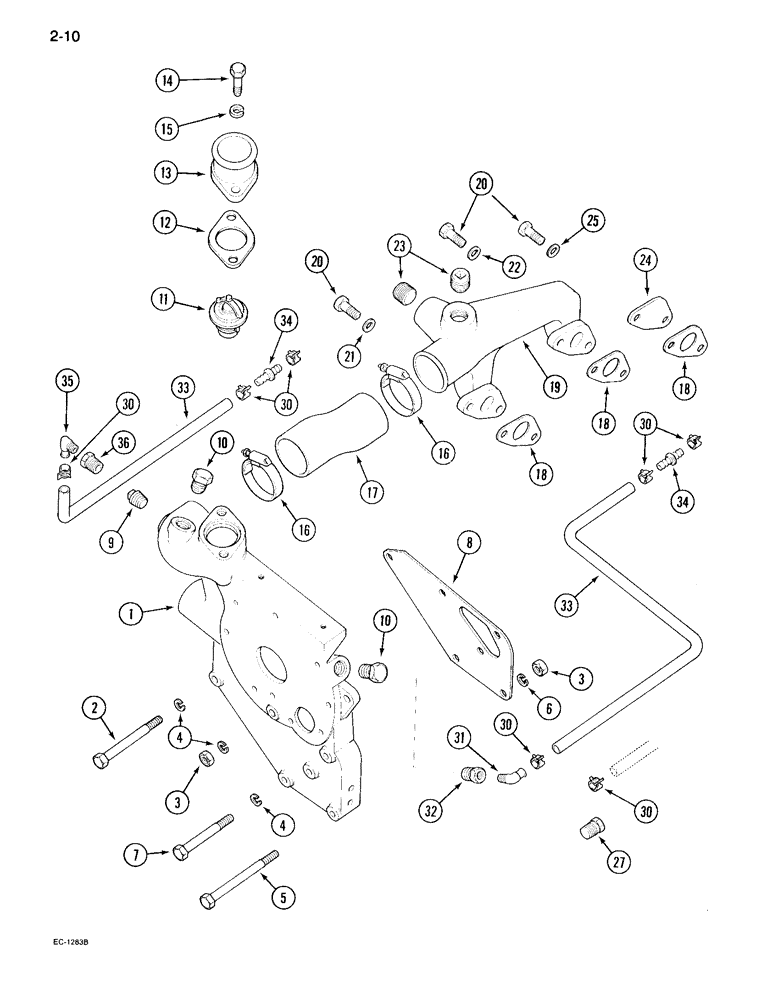

Запчасти Case IH 995 (2-10) - COOLANT SYSTEM, WATER PUMP CARRIER AND COOLANT MANIFOLD (02) - ENGINE

1

3136678R2

COVER

CARRIER - water pump

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

3шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

5шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

5шт.

5

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

1шт.

7

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex, 5/16 NC x 3 inch

2шт.

8

3055999R2

GASKET

- water pump carrier

1шт.

Part of crankcase gaskets service kit

1шт.

9

445686

PLUG

- automotive square head, 3/8 inch NPTF

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

- hex, pipe (Without coolant filter)

2шт.

11

3228046R1

THERMOSTAT

- coolant temperature

1шт.

12

3132143R2

GASKET,1mm Thk

- water outlet flange

1шт.

Part of cylinder head gaskets service kit

1шт.

13

3132142R2

FLANGE

- water outlet

1шт.

14

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

15

3050221R1

LOCK WASHER

- lock, 3/8 inch

2шт.

16

3218259R1

CLAMP,M40-60, Worm

- hose

2шт.

17

3144028R2

HOSE

- Connecting 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

18

3055306R2

GASKET

- manifold, water collecting

4шт.

Part of cylinder head gaskets service kit

1шт.

19

3218034R1

MANIFOLD

- water collecting

1шт.

20

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

21

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

3шт.

22

3136506R1

RING

- packing

1шт.

23

444667

PLUG

- automotive square socket, 1/2 inch NPTF

2шт.

24

3228184R1

FLANGE

Found in 884 catalog pg 12-23

2шт.

24

3228184R1

FLANGE

COVER - closing (With coolant filter) (Replaces 3132721R1)

1шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

444630

PLUG,Hex Hd, 1/2"-14

- hex, pipe (Coolant filter without air conditioning)

1шт.

30

3074617R1

CLAMP

- hose

1шт.

31

3125512R1

ELBOW

- union (Without coolant filter)

1шт.

32

444035

BUSHING

REDUCER _ automotive pipe, 1/2 to 3/8 inch (Without coolant filter)

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - heater, 2019 mm (Cut from 97252 C1)

2шт.

33

97252C4

HOSE - heater, bulk length (16.5 metre)

1шт.

34

1301342C1

FITTING

UNION - heater hose inlet fitting

2шт.

35

3125512R1

ELBOW

- union

1шт.

36

444035

BUSHING

REDUCER - automotive pipe, 1/2 to 3/8 inch

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 12 and 18 (See Figure 2-56)

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 8 (See Figure 2-58)

1шт.
