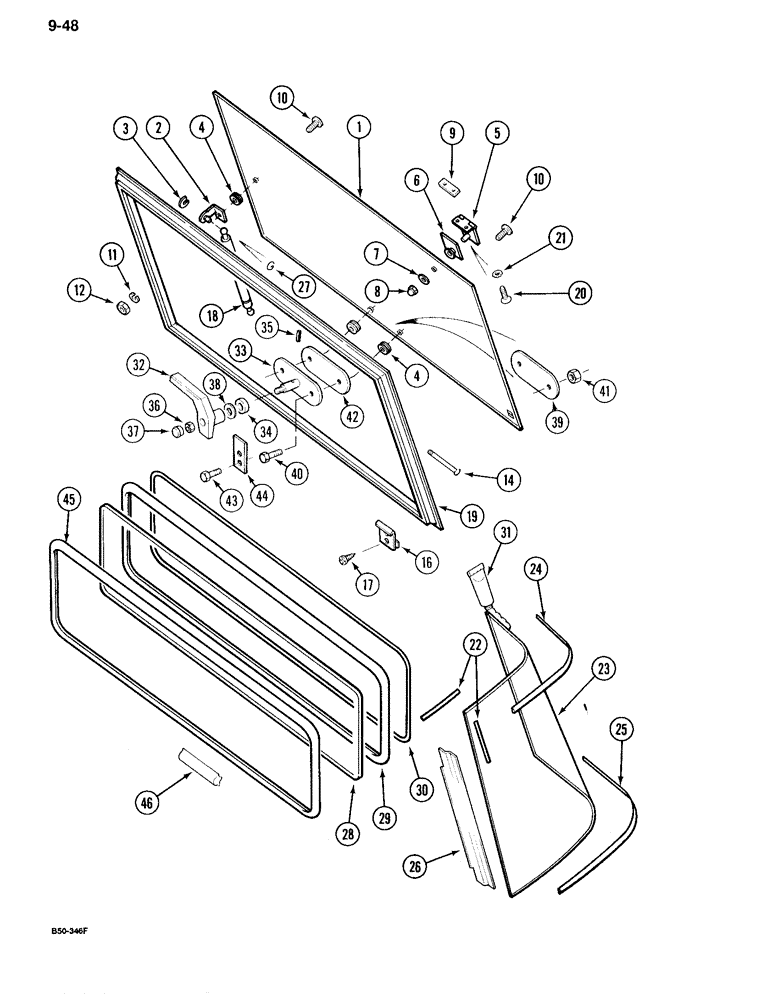

Запчасти Case IH 995 (9-048) - CAB, REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (See Figure 9-034), Includes: Ref. 1 - 27

1шт.

3234162R95

GLASS

WINDOW - assembly, rear upper, Includes: Ref. 1 - 12

1шт.

1

3233046R3

GLASS

- rear upper window

1шт.

2

3233683R91

HOLDER

BRACKET - gas strut

1шт.

3

3233695R1

PROTECTOR

- operator

1шт.

4

3234066R1

GROMMET

- rear upper window

3шт.

5

1535229C2

HINGE

- rear upper window

2шт.

6

3234167R1

GROMMET

- rear upper window hinge

2шт.

7

906007R1

WASHER,M8.4 x 25 x 2.5

- flat, 8 mm

7шт.

8

3221592R1

CAP

NUT - crown

3шт.

9

3233679R1

PLATE

- support

2шт.

10

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, cross recess, 8 x 20 mm

5шт.

11

3233415R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

12

825-1408

NUT,M8, Cl 8

1шт.

16

3233691R1

COVER

PLATE - locking

1шт.

17

905927R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW - tapping, round cross recess, 3.5 x 9.5 mm

2шт.

18

3234163R1

GAS STRUT,549mm Extended, 329mm Compressed

STRUT - gas filled

1шт.

19

3234119R2

SEAL,840mm L

- rear upper window

1шт.

20

905926R1

SCREW,#6 - 16

- countersunk, flat cross recess, 6 x 16 mm

4шт.

21

3233414R1

WASHER,Csk, M6

WASHER - lock, toothed, 6 mm

4шт.

22

P741441

SPACER

- bonded glass

1шт.

23

3233040R1

CAB GLASS

GLASS - rear left window

1шт.

23

3233041R1

CAB GLASS

GLASS - rear right window

1шт.

24

3234050R2

SEAL, GLASS

SEAL - rear side window (Order 3234051R2)

1шт.

25

3234051R2

SEAL, GLASS

SEAL - bottom, rear side window

1шт.

26

3405554R1

SILL

- window

2шт.

27

3404206R1

BALL STUD

- retaining

2шт.

28

98041C1

GLASS

WINDOW - lower rear (Prior to cab JKJ0042557)

1шт.

29

1500759C1

SEAL

- lower rear window (Prior to cab JKJ0042557) (Order P346008)

2шт.

30

1500760C1

FILLING STRIP

STRIP - filler (Ord. P346008)

1шт.

31

3404053R91

PACKAGE

KIT - service, glass installation

1шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSEMBLY - rear window, Includes: Ref. 32 - 38

1шт.

1535259C1

HANDLE

ASSEMBLY - rear window, Includes: Ref. 32 - 38

1шт.

32

1340205C1

HANDLE

ASSEMBLY - rear window, Includes: Ref. 33 - 38

1шт.

33

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - clamping

1шт.

34

1340206C1

RUBBER BUSHING

BUSHING - rubber

1шт.

35

19443R1

PIN,5/32" x 5/8", Coiled

1шт.

36

825-1406

NUT,M6, Cl 8

1шт.

37

1340207C1

PLUG

- window hinge

1шт.

38

20869R1

WASHER

- flat, 17/32 x 7/8 x 3/64 inch

1шт.

39

1535255C1

LARGE PLATE

PLATE - handle clamping, Includes: Ref. 40 - 42

1шт.

40

1535267C1

SCREW,Hex, M6 x 25mm

- clamping plate 6mm x 25 mm

2шт.

41

97005C1

FLANGE NUT

- hex flange lock, M6

2шт.

42

1535256C1

GASKET,3mm Thk

PAD - clamping plate

2шт.

43

905998R1

SCREW,Phillips Drive, Flat HD, M6 x 20mm, Cl 4.8

- locking plate

1шт.

44

1535257C1

LARGE PLATE

PLATE - locking

1шт.

45

1535585C1

DOOR SEAL

SEAL - lower rear window (Cab JKJ0042557 and After)

1шт.

46

P346008

SEAL

STRIP - filler (Cab JKJ0042557 and After)

3шт.
